18m Dongfeng Aerial Platform Lift Truck

FOB Price:	38,000.00 - 43,000.00 USD/Set
Supply Ability:	20,000 Set/Sets per Year
Shipping:	Bulk shipment or Ro-Ro shipment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	Waxed , Bulk shipment or Roro shipment

Specifications

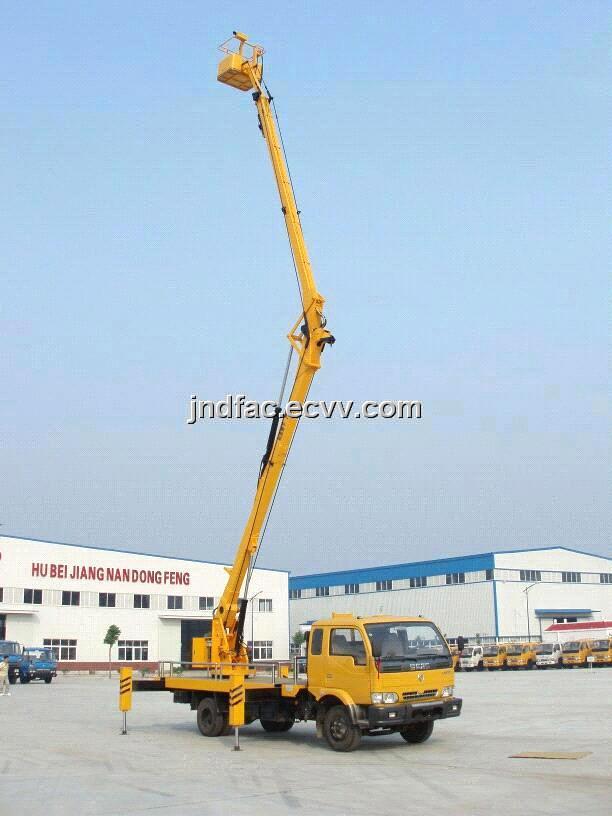

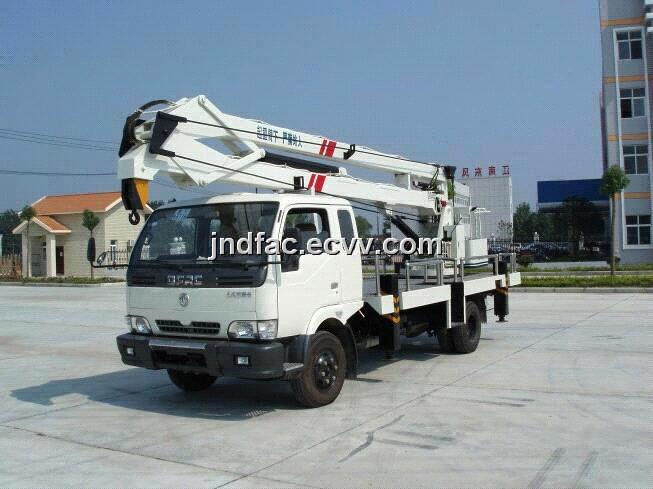

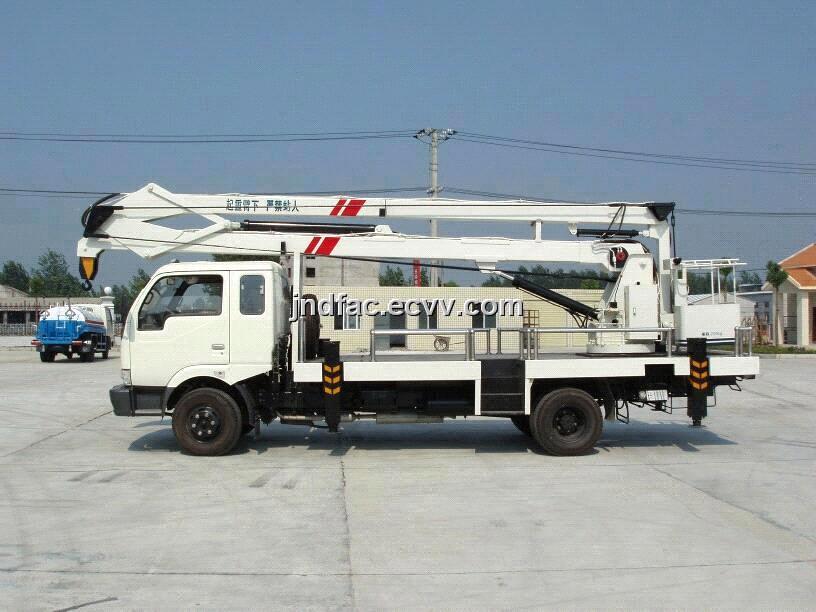

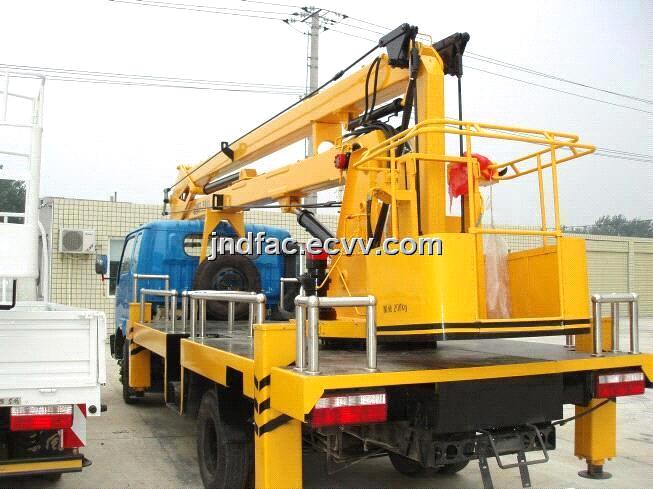

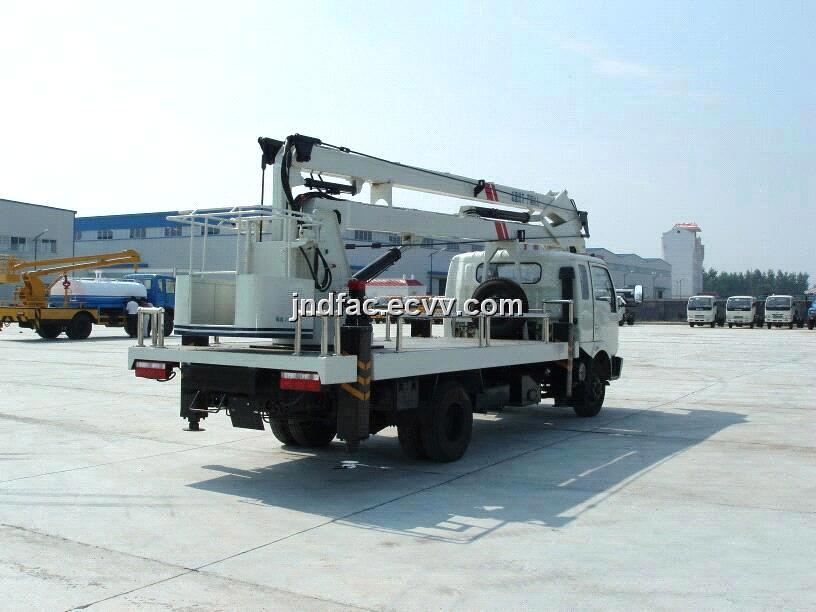

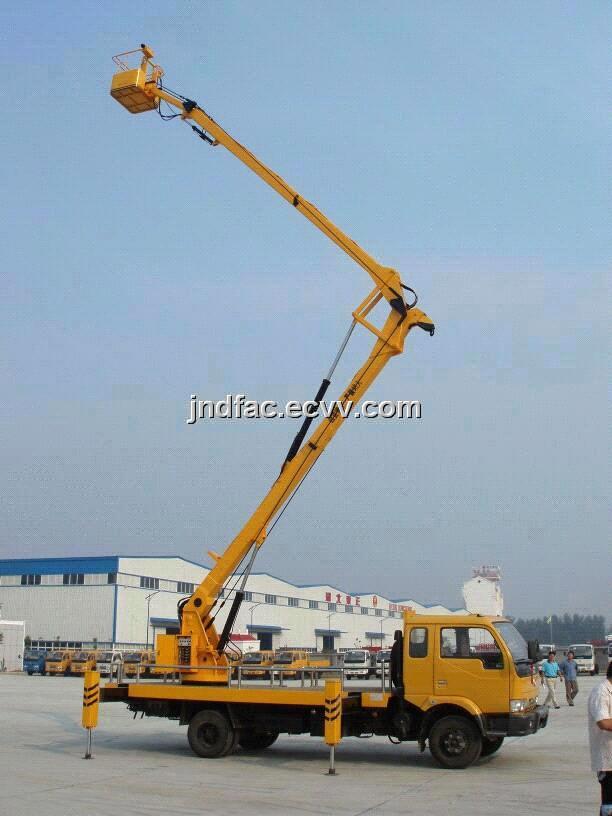

18m DongFeng Aerial Platform Lift Truck
1.Cummins Engine
2.Passed CCC & ISO
3.Turntable & platform all can operate
4.Factory sale directly

Professional Overhead working truck manufacturer in China , our aerial work platform work height from 12m to 24m, a wide chooice for customer.

Aerial Platform Lift

Brand	Jiangte
Vehicle name	18m DongFeng Aerial Lift
Engine model	B140 33	Engine make	DongFeng Cummins
Engine displacement(ml)	3900	Engine power(kw)	103
Overall dimension(LWH)(mm)	8250×2320×3500
G..V.W.(Kg)	7490
Curb weight(kg)	7295	Payload weight(kg)
Approach/Departure angle	22/12	Front/Rear suspension	1180/2450
Wheelbase(mm)	3800	Axle load	3090/4400
Axle number	2	Leaf spring	11/9+7,8/10+7
Tire number	6	Tire size	7.50-16,8.25-16
Front track	1404	Rear track	1458
Chassis model	EQ1070TJ9AD3
Upper load parameter
Max working height	18.2m
Max bucket floor height	16.5m
Max work radius	9.2m
Bucket load	200kg
Hook load	Optional , Hook load capacity 1Ton
Traffic warning light	Optional
Boom type	3 section of articulated boom,360°rotation
Outriggers	4Pcs , H type

Our aerial work platform product range from 12M to 24M.

Other product: Fire fighting truck , Aerial working platform truck , Road wrecker truck , Road sweeper truck , Garbage truck , Tractor , Semi-trailer truck, Bulk Cement truck ,Oil tank truck ,Chemical liquid truck, street sprinker .
