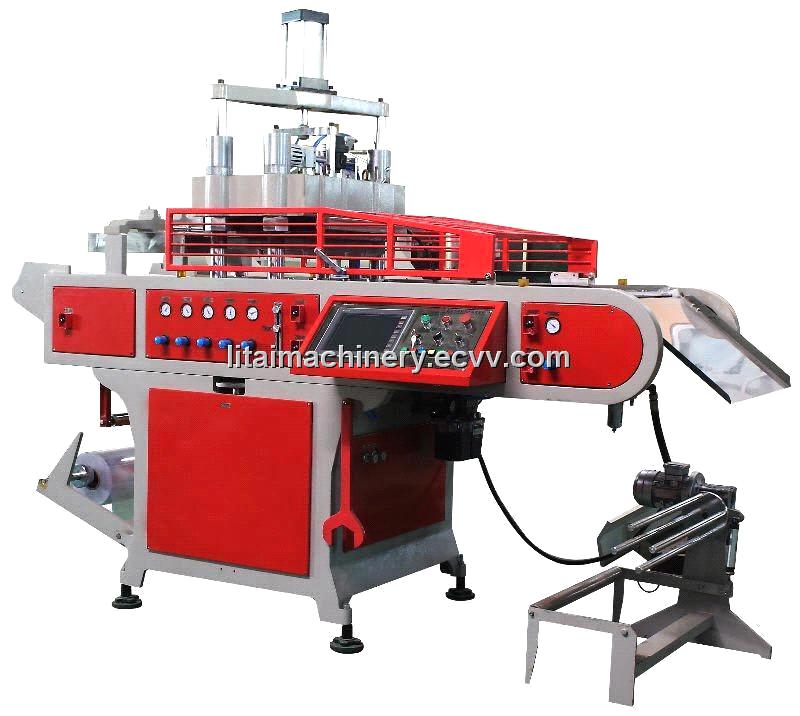

OPS Thermoforming Machine (TQA520/580)

Supply Ability:	10 Set/Sets per Month
Shipping:	30Days. Based on FOB Ningbo or Shanghai Port Of China.
Payment Terms:	T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Oil, film and wooden case (standard export packing).

Specifications

Plastic Cake Box Forming Machine,Plastic Bops Covers Thermoforming Machine.

OPS Thermoforming Machine (TQA520/580) Application area:

1): OPS Thermoforming Machine (TQA520/580)suits for forming plastic sheets like OPS, BOPS, PVC, HIPS, PET, PS sheet.

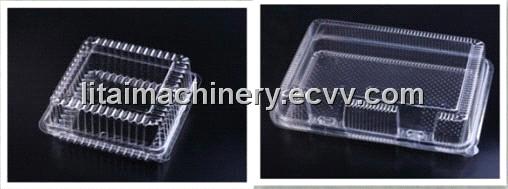

2): OPS Thermoforming Machine (TQA520/580) produces all kinds of disposable container and other plastic products, such as fast food dishes, trays, bowls, lids, plates, boxes for preserved fruits, pickles, candies, cakes, chocolates, snacks, fast food, package for vegetables, fruits, cooling fishery products, toys, small hardware, clothes and all kinds of commodity, etc.

OPS Thermoforming Machine (TQA520/580) Technical Parameter:

Forming area:	520mm×580mm
Forming height:	100mm
Sheet width(max):	600mm
Sheet thickness rang:	0.10-1.00mm
Sheet roller diameter:	710mm
Max working speed:	25cycles/min
Main supply voltage:	20kw 380v 50Hz
PLC control:	YES
Individual zone heating control:	YES
Skeleton waste re-winder (independent):	YES
Robot stacking unit with adjustable vacuum grippers:	YES
Number of vacuum grippers:	14pcs
Preheating power:	4kw
Heating plate power:	12kw
Water consumption:	9L/min
Air pressure	0.6-0.8mpa
Air consumption:	1.1 m³/Min
Overall dimension:	About 5200mm x 1500mm x 2350mm
Weight:	About 2.5T

OPS Thermoforming Machine (TQA520/580) Function:

·In mould cutting.
·Low energy consumption
·Contact multi-zone heating
·Minimum floor space requirements
·Easy operation
·Lower air consumption
Minimal waste
