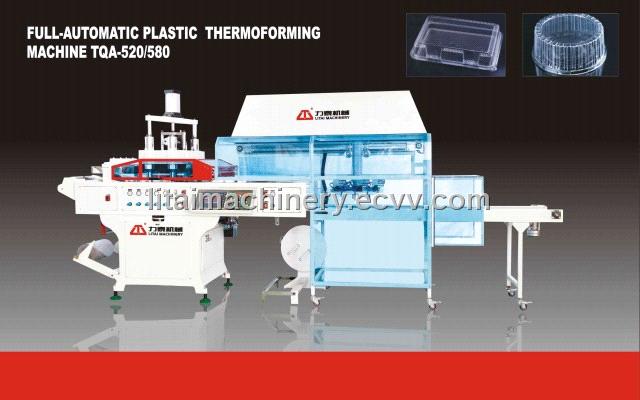

Full-automatic Thermoforming&Stacking Machine

Supply Ability:	10 Set/Sets per Month
Shipping:	40days. Based on Fob Ningbo or Shanghai Port Of China.
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Exporting Wooden Packing (First antirust oil,second film packing,final wooden packing)

Specifications

Plastic forming&Cutting&Stacking Machine,Automatic Dishes Thermoforming Machine With Stacker.

1. Application area:

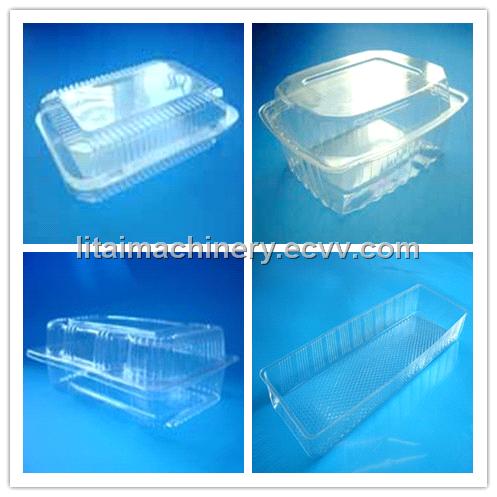

It can use plastic BOPS, PVC, HIPS, PET, PS sheet to produce different disposable products,such as fast food containers, dishes, trays, bowls, lids, boxes for preserved fruits, pickles, candies, cakes, chocolates, snacks, fast food, package for vegetables, fruits, cooling fishery products, toys, small hardware, clothes and all kinds of commodity, etc.

2. Feature:

1) This machine can automatic finish transmitting,heating,forming,cutting,stacking at different stations in one processing.

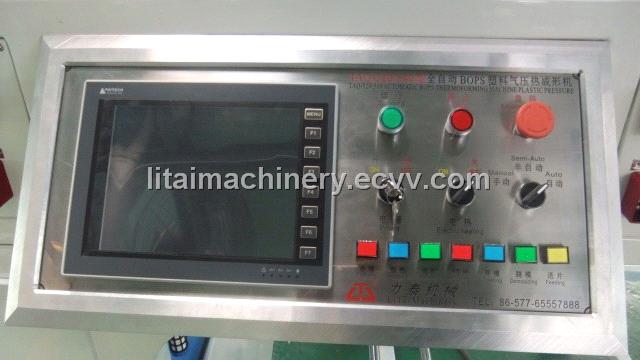

2)It adopts PLC and touch screen,it's more capability reliable, quality stable, fault few.

3) Servo motor drives the sheet transport system.It's more accurate and also avoid the sheet wasting.

4)Mould in Cutting.So The final products can be produced one by one.

5) Lower consumption for power,air,water.

3.Main Technical Parameter:

Model:	TQA-520/580 With Stacker
Forming area:	520mm×580mm
Forming height:	100mm
Max working speed	10-20cycle/min
Rated power:	20kw AC380v 50Hz
Air pressure	0.6-0.8mpa
Air consumption:	1.0 m³/min
Water consumption:	9L/min (Recycled water)
Overall dimension:	L5200 x W1500 x H2350mm
Weight:	About 2.5T
