Hubei Jiangnan Special Automobile Co., Ltd.
China Manufacturer with main products: Fire Truck, Aerial Platform Truck, Wrecker Truck, Garbage Truck, Sweeping Truck, Oil Truck, Water Truck, Vacuum Suction Truck |
16th
Dongfeng Jinba Aerial Platform Truck
| FOB Price: | 18,000.00 - 35,000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Year |
| Shipping: | 10-15 days |
| Payment Terms: | L/C, T/T, Bank transfer |
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nude, waaxed, etc. |
Specifications

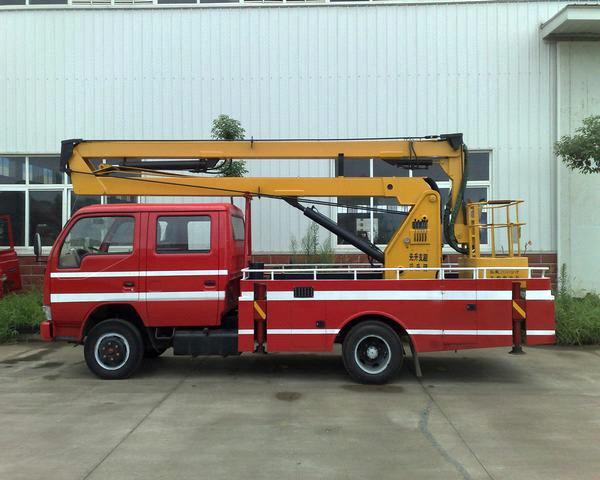

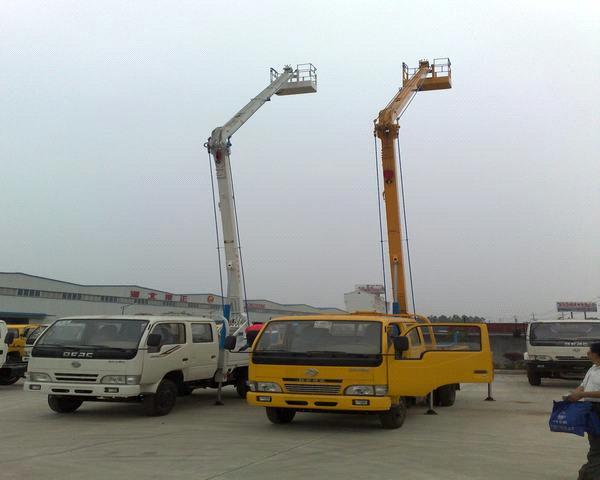

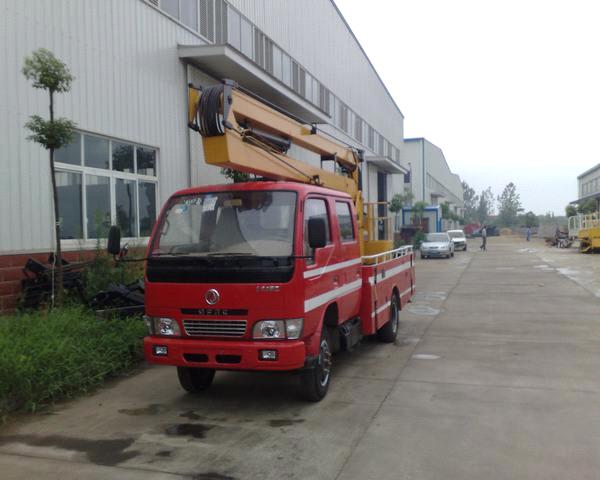

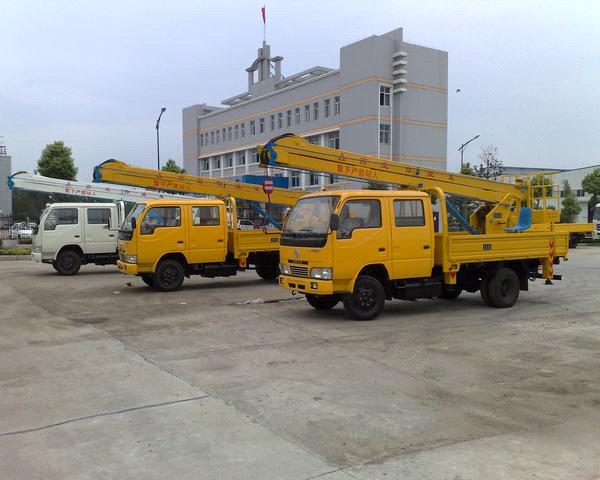

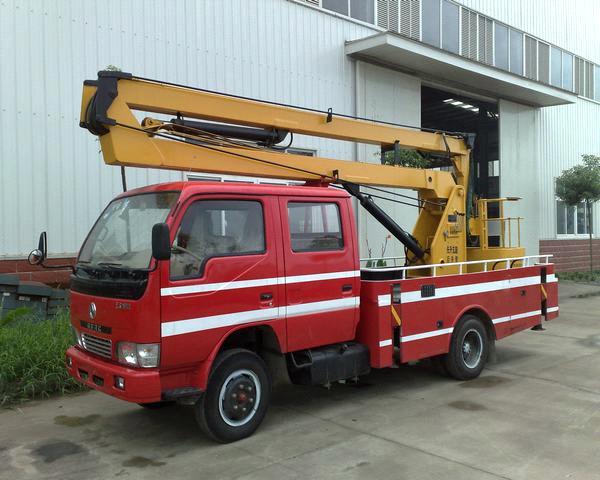

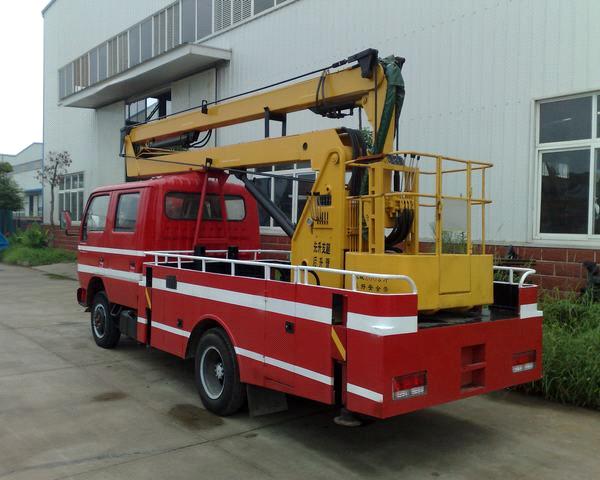

Dongfeng Jinba Aerial Platform Truck(14m, 2 section arms)
|
Vehicle summary
|
This Aerial Platform Truck is refitted from QL10508HWRY chassis. It’s beautiful appearance, powerful function, operate safety. Widely used in municipal administration, power supply repair, traffic management and other department to maintenance electric, road signs install and some other high operate working.
|
||||
|
Vehicle model
|
JDF5051JGK
|
Chassis model
|
EQ1050NJ20D3
|
||
|
Weight parameter (kg)
|
Load weight(kg)
|
Overall dimension (mm)
|
Overall dimension (mm)
|
7140×1990×2990
|
|
|
Curb weight(kg)
|
Cargo dimension(mm)
|
Cargo dimension(mm)
|
|
||
|
Max overall weight(kg)
|
Wheel base(mm)
|
Wheel base(mm)
|
3300
|
||
|
Engine
|
Model
|
CY4102-C3F
|
Emission standard
|
Euro Ⅲ
|
|
|
Power/ Displacement
|
70(95HP)/ 3856
|
Manufacture
|
Dongfeng Chaoyang Diesel Engine Co., Ltd.
|
||
|
Engine optional
|
YC4F90-30(66/2659)YN27CR(66/2672)YN30CR(76/2977)
|
||||
|
Performance parameter
|
Max speed(km/h)
|
95
|
Tread span(mm)
|
Front axle
|
1404,1506
|
|
Max creeping slope capacity (%)
|
23
|
Rear axle
|
1458,1466
|
||
|
Oil consumption/100km(L)
|
9
|
Reaching out of vehicle (mm)
|
Front overhang
|
1032
|
|
|
Slope stop for empty vehicle (%)
|
20
|
Rear overhang
|
1768
|
||
|
Min circle turning diameter(m)
|
13
|
Driving angle (°)
|
Approach angle
|
19
|
|
|
Smallest ground clearance(mm)
|
180
|
Departure angle
|
14
|
||
|
Chassis
|
Reversal cab , 2T front axle load, 3T rear axle load, 5 speed gear box, , air brake
|
||||
|
Special function
|
Max operating altitude(m)
|
14
|
Max working radius(m)
|
5.5
|
|
|
Working bucket load(kg)
|
200
|
Max rotation angle (°)
|
360
|
||
|
Rotation speed(r/min)
|
0~2
|
Rated hoisting capacity (kg)
|
1000 (Optional)
|
||
|
Max lifting height(m)
|
5.3 (Optional)
|
Upper and lower operate (Optional)
|
|||
Remarks:
The above information is just for your reference. We can manufacture the truck according to your specific requirements.
And if any detailed information needed, pls feel free to contact Ms Jessie Jin!Other products from this supplier
