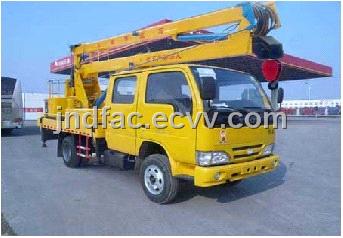

14m Yuejin Aerial Boom Lift Truck
| FOB Price: | 25,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | ro-ro shipment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | waxed before shipment |
Specifications
14M Yuejin Aerial Boom Lift Truck
Articulated boom , mounted on truck
Bucket load 200kg
360 rotation
Hook lift 1ton
1.We provide telescopic boom lift truck , articulated boom lift truck , The lifting arms of some cherry pickers are capable of telescoping to adjust the reach of the device, usually with automatic safety controls to prevent tipping over. Articulated boom lifts are more appropriate than stick booms when operating in tight spaces or when clearing nearby obstacles is necessary.
2.Over years of boom lift truck produce experience , we consider SAFE as the most important when speak of a aerial platform , all our products CCC approved
3.We provide DongFeng , Foton , JMC , JAC , ISUZU , NIAASN boom lift truck , from 14m to 24m
|
Brand
|
Jiangte
|
|
|
|
Vehicle name
|
14m Yuejin Aerial Boom Lift Truck
|
||
|
Engine model
|
YN33PE-1
|
Engine make
|
Kunming Yunnei
|
|
Engine displacement(ml)
|
3298
|
Engine power(kw)
|
76kw/103hp
|
|
Overall dimension(L*W*H)(mm)
|
7200×1950×3100
|
|
|
|
G..V.W.(Kg)
|
6495
|
|
|
|
Curb weight(kg)
|
6170
|
Payload weight(kg)
|
|
|
Approach/Departure angle
|
25/12
|
Front/Rear suspension
|
1050/1802
|
|
Wheelbase(mm)
|
3308
|
Axle load
|
2730/3765
|
|
Axle number
|
2
|
Leaf spring
|
8/9+3
|
|
Tire number
|
6
|
Tire size
|
6.50-16
|
|
Front track
|
1503
|
Rear track
|
1440
|
|
Chassis model
|
NJ1061DBFS1
|
||
|
Upper load parameter
|
|||
|
Max working height
|
14m
|
||
|
Max bucket floor height
|
12.3m
|
||
|
Max work radius
|
6.5m
|
||
|
Bucket load
|
200kg
|
||
|
Hook load
|
Optional , Hook load capacity 1Ton
|
||
|
Traffic warning light
|
Optional
|
||
|
Boom type
|
3 section of articulated boom,360°rotation
|
||
|
Outriggers
|
4Pcs , H type
|
||
Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
For more information pls contact
Jessica Song
