Dongfeng Jinba Hydraulic Lift Truck
| FOB Price: | 16,000.00 - 26,000.00 USD/Set |
|---|---|
| Supply Ability: | 5,000 Set/Sets per Year |
| Shipping: | 10 days |
| Payment Terms: | L/C, T/T, Bank transfer |
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | nude, waxed, etc. |
Specifications

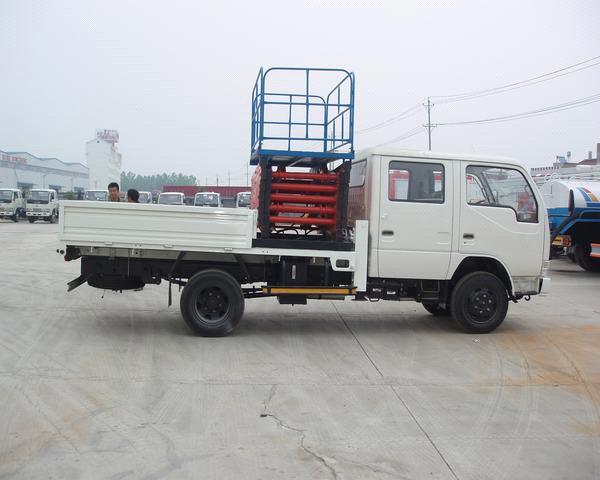

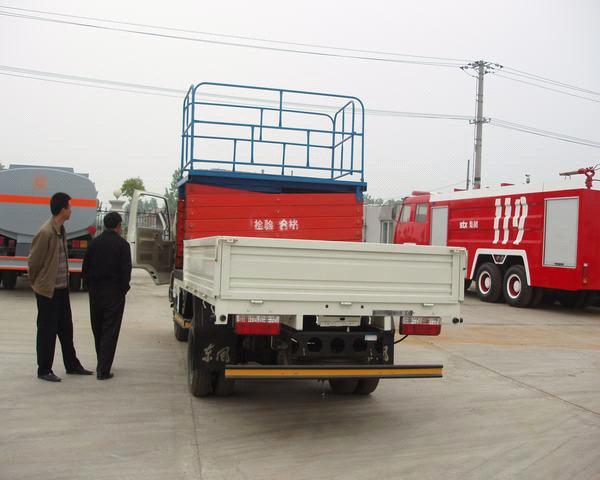

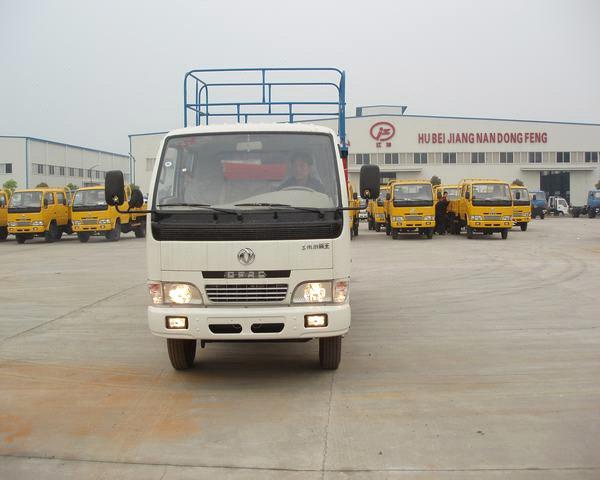

Dongfeng Jinba Hydraulic Lift Truck
Our Hydraulic Lift Truck has reliable performance and stable operation. Here are the specific descriptions.
High altitude working truck widely used for municipal administration, street lights maintain, garden shave trees etc.
High altitude working truck widely used for municipal administration, street lights maintain, garden shave trees etc.
Our factory is a professional high altitude hydraulic scissor lift
operation truck manufacture in China, our truck fully passed ISO9001-2000, 3C authentication.
operation truck manufacture in China, our truck fully passed ISO9001-2000, 3C authentication.
We provide different brands of chassis for our hydraulic aerial platform truck, e.g.: ISUZU, FOTON, SINOTRUCK, DFAC&DFL, North Benz, SX, etc.
|
Vehicle model
|
JDF5040JG
|
Chassis model
|
EQ1042NJ20D3
|
|||
|
Weight parameter
(kg)
|
Load weight(kg)
|
/
|
Overall dimension(mm)
|
6100×1990×2990
|
||
|
Curb weight(kg)
|
3930
|
Cargo dimension(mm)
|
/
|
|||
|
Max overall weight(kg)
|
4255
|
Wheel base(mm)
|
3300
|
|||
|
Engine parameter
|
Model
|
YC4F90-30
|
Type
|
Diesel
|
||
|
Power/Displacement(KW/ML)
|
66/2659
|
Produce factory
|
Guangxi Yuchai Motor Co., Ltd.
|
|||
|
Optional engine
|
CY4102-C3F(70/3856) , YN27CR(66/2672), YN30CR(76/2977)
|
|||||
|
Performance parameter
|
Max speed(km/h)
|
95
|
Track span(mm)
|
Front axle
|
1506
|
|
|
Cab
|
Flat head and double row
|
Rear axle
|
1466
|
|||
|
Cab seats
|
2+3
|
Reaching out of vehicle(mm)
|
Front suspension
|
1032
|
||
|
No. of tires
|
6
|
Rear suspension
|
1768
|
|||
|
Tire size
|
7.00-16,6.50-16
|
Driving angle(°)
|
Approach angle
|
19
|
||
|
Spring plate number
|
8/9+5,6/8+4
|
Departure angle
|
14
|
|||
|
Chassis
|
Reversal cab , 2T front axle load, 3T rear axle load, 5 speed gear box, , air brake
|
|||||
|
Special function
|
Hydraulic system assembly
|

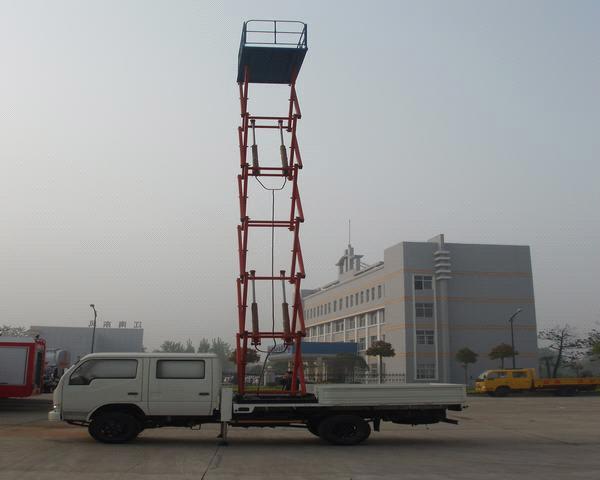

The hydraulic system makes aerial platforms lift
|
||||
|
Max operating height(m)
|
10-12
|
|||||
|
Working bucket loading(kg)
|
200
|
|||||
Remarks:
The above information is just for your reference. We can manufacture the truck according to your specific requirements.
And if any detailed information needed, pls feel free to contact Ms Jessie Jin!
