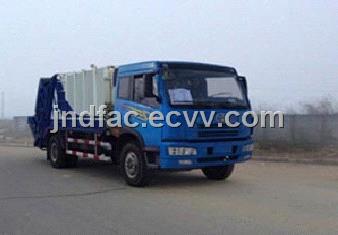

Faw Waste Compactor Truck

FOB Price:	35,000.00 - 40,000.00 USD/Set
Supply Ability:	500 Set/Sets per Month
Shipping:	ro-ro shipment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	nude, waxed before shipment

Specifications

FAW Waste Compactor Truck
Body volume 10cbm
High compression ratio
Suitable to compact most types of waste
CCC, rear load

FAW Garbage Compactor Truck

Function:

The machine supports heavy duty operations and is high in performance and low in maintenance , it can collect , compact , store and dump the garbage

Compactor designs. Have been many and varied , one of the most popular being the traditional " sweep and slide" system where hydraulic-powered plates scoop out the waste from a loading hooper and subsequently compact it aagainst the material already loaded.

Once the waste is dumped, it is compacted by a large blade called a " packer blade" that pushes the waste to the rear of the vehicle.

Product name	FAW Trash Compactor Trucks
Chassis type	CA1163P7K2LE
Cubage( CBM )	10-12
Parameters	Dimensions(mm)	6810× 2495× 3150
	Total Mass(kg)	16000
	Payload(kg)	8500
	Unladen Mass(kg)	7305
	Approach/ Departure angle(mm)	19/10
	Front/rear suspension(mm)	1375/1635
	Fuel Type	diesel
	Max Speed(km/h)	95
Engine	Type	CA6DE3-18E3F
	Displacement/Power(kw)	6618/136
	Manufacturer	GUANGXI YUCHAI DIESEL
Chassis	Drive type	4× 2
	Wheelbase(mm)	3800
	Tread(front/rear)	1914/1860
	Cab	Set according to the chassis
	Number of axles	2
	Axle load	6240/9760
	Number of spring axle(front/rear)	4/4+4
	Number of tires	6
	Tires	9.00-20
	Air-condition	Choose to fix
Notes	* This truck collects the garbage facilitately and efficiently, can automatically compress the refuse repeatly. * With many charactors such as: high compression ratio, large loading capacity, excellent tightness and work automatically. * By applying hermetically sealed structure, the sewage passes into the drain tank indirectly, which protects from the sacondary pollution druing the transportation. * Applying the hang barrels of ascending trun-over device, which use the acceptable nstionwide iron/plastic hang barrels.

Our factory products line:
Fire truck; Road wrecker/recovery tow truck/ Car carrier/; Aerial work platform ; Road sweeper; Garbage truck; Watering cart ; Oil/Fuel tanker truck; Truck mounted crane; Concrete mixer truck ; Bulk powder transport truck ; Dumper ; Sewage suction truck etc.
