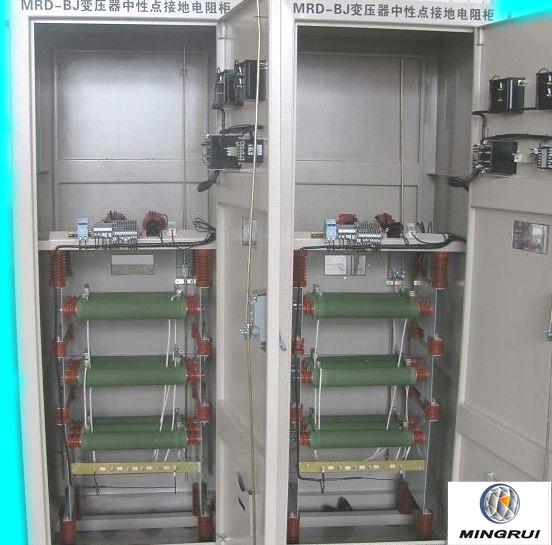

20KV Transformer Neutral Grounding Resistor Cabinet (NGR )/Electrical Earthing Resistance Cabinet

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

20KV Transformer Neutral Grounding Resistor Cabinet (NGR )/Electrical Earthing Resistance Cabinet:

Neutral Grounding Resistors are used to protect power transformers, power generators and other associated equipment in your power systems against 50/60 Hz faults (short circuit) and transient phenomena (lightning).
SPECIFICATIONS	There are six parameters needed to specify the neutral grounding resistor. 1. Rated voltage line to neutral or system voltage. 2. Rated fault current. 3. Rated “duration time” of the line to neutral voltage not exceeding the allowable temperature rise. 4. Rated Resistance. 5. Application environment, indoor or outdoor. 6. Enclosure material, ss plate or normal cold rolled sheet.
RANGE	• Rated current: from 1 amp to 2000 A • Rated voltage: from 6to 20 kV • Rated Resistance: from 1 ohm to 2000 ohm • Rated time: 1 sec to continuous time rating
TESTING AND QUALITY	with IEEE-32. Routine tests performed on each Neutral Grounding Resistor are measurement of resistance, high voltage power frequency, insulation measurement, aspect verification, dimensional control. Mingrui’s internal quality system has been developed and certified under ISO 9001 quality system
