Specifications
Mainly used for metal stamping press, bending and press forming, with the general hydraulic press functions. For example, used for production of automobile parts, household applications, kitchen utensils, tractor, motorcycle, aerospace industries and so on.
Characteristics:

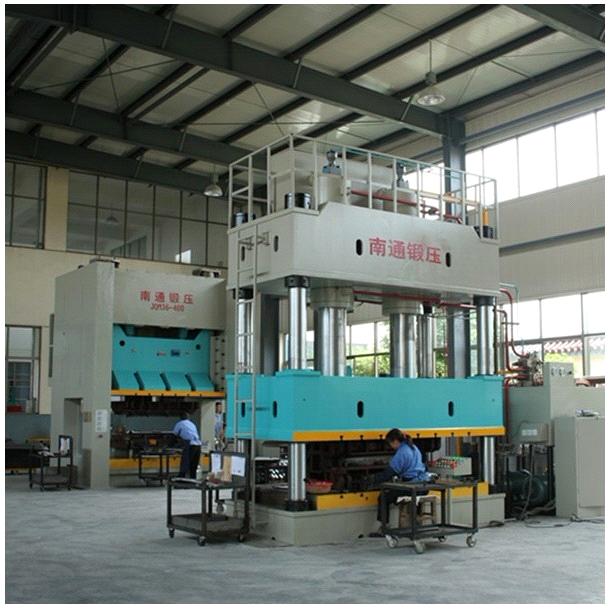

With a three-beam and four-column structure, this type of press is designed economically and practically.
The hydraulic system adopts advanced cartridge inserted valve integrated system which has large flow, low pollution, easy control, reliable performance.
The independent electrical control system ensures the performance of system reliability and operability.
The machine uses button centralized control, which can be operated in manual/semi-automatic model.
The pressure of work, the fast down and slow down speed can be adjusted according to process needs.
| Specification | Unit | YQ27-63 | YQ27-100 | YQ27-160 | YQ27-200 | YQ27-315 | YQ27-400 | YQ27-500 | YQ27-630 | |
| Rated Pressure | KN | 630 | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | 6300 | |
| Maximum Pressure of Liquid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Stroke of Slide | mm | 500 | 600 | 700 | 700 | 800 | 800 | 900 | 900 | |
| Cushion Pressure | KN | 190 | 400 | 400 | 630 | 1000 | 1000 | 1600 | 2000 | |
| Stroke of Cushion | mm | 200 | 200 | 250 | 250 | 300 | 300 | 350 | 350 | |
| Daylight | mm | 1000 | 1000 | 1000 | 1100 | 1250 | 1250 | 1500 | 1500 | |
| Speed of Slide | Descent | mm/s | 150~180 | 150~180 | 100 | 100 | 100 | 100 | 100 | 100 |
| pressing | mm/s | 20~25 | 10~14 | 10~15 | 12~18 | 8~12 | 6~10 | 10~15 | 8~12 | |
| Return | mm/s | 100 | 120 | 70 | 70 | 60 | 55 | 70 | 60 | |
| Size of Table | L-R | mm | 580 | 720 | 960 | 920 | 1150 | 1400 | 1400 | 1500 |
| F-B | mm | 500 | 580 | 800 | 900 | 1200 | 1400 | 1400 | 1500 | |
| Size of Cushion | L-R | mm | 380 | 450 | 600 | 760 | 900 | 1000 | 1100 | 1000 |
| F-B | mm | 380 | 450 | 600 | 660 | 700 | 1000 | 1000 | 850 | |
| Motor Power | KW | 7.5 | 7.5 | 11 | 15 | 22 | 22 | 2×22 | 2×22 | |
| Specification | Unit | YQ27-630A | YQ27-800 | YQ27-800A | YQ27-1000 | YQ27-1250 | YQ27-1600 | YQ27-1800 | |
| Rated Pressure | KN | 6300 | 8000 | 8000 | 10000 | 12500 | 1600 | 18000 | |
| Maximum Pressure of Liquid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Stroke of Slide | mm | 900 | 900 | 1000 | 1000 | 1200 | 1200 | 1200 | |
| Cushion Pressure | KN | 2500 | 2500 | 3000 | 3000 | 4000 | 4000 | 4500 | |
| Stroke of Cushion | mm | 350 | 350 | 350 | 400 | 400 | 400 | 400 | |
| Daylight | mm | 1500 | 1600 | 1800 | 1800 | 1800 | 1800 | 1900 | |
| Speed of Slide | Descent | mm/s | 150~200 | 150~200 | 150~200 | 150~200 | 150~200 | 150~200 | 250~300 |
| pressing | mm/s | 10~15 | 10~15 | 15~20 | 15~20 | 15~20 | 10~20 | 25~35 | |
| Return | mm/s | 60 | 70 | 120 | 100 | 100 | 120 | 250 | |
| Size of Table | L-R | mm | 2800 | 1700 | 3600 | 3000 | 3800 | 3500 | 4300 |
| F-B | mm | 1600 | 1500 | 2400 | 2000 | 2200 | 2200 | 2700 | |
| Size of Cushion | L-R | mm | 2050 | 1250 | 2920 | 2350 | 3100 | 2800 | 3550 |
| F-B | mm | 1000 | 1000 | 1720 | 1450 | 1600 | 1600 | 2050 | |
| Motor Power | KW | 45+22 | 45+22 | 2×45 | 2×45 | 3×45 | 3×45 | 6×45 | |
