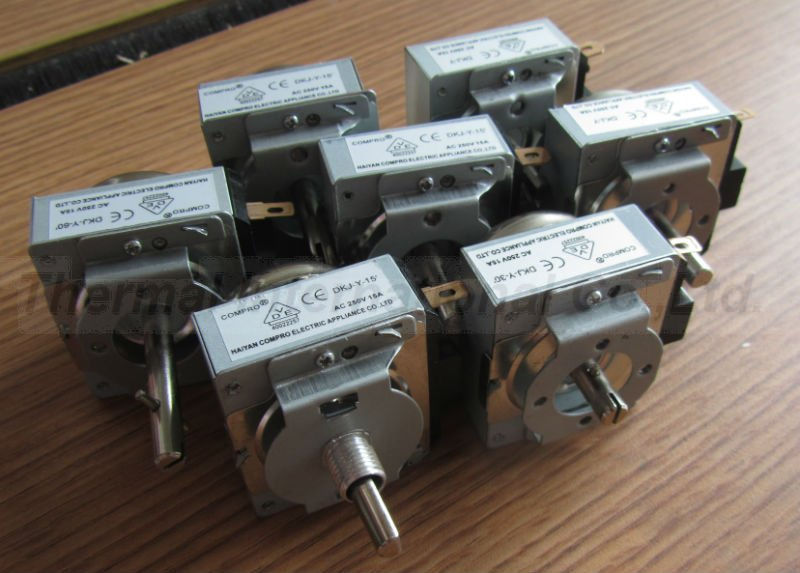

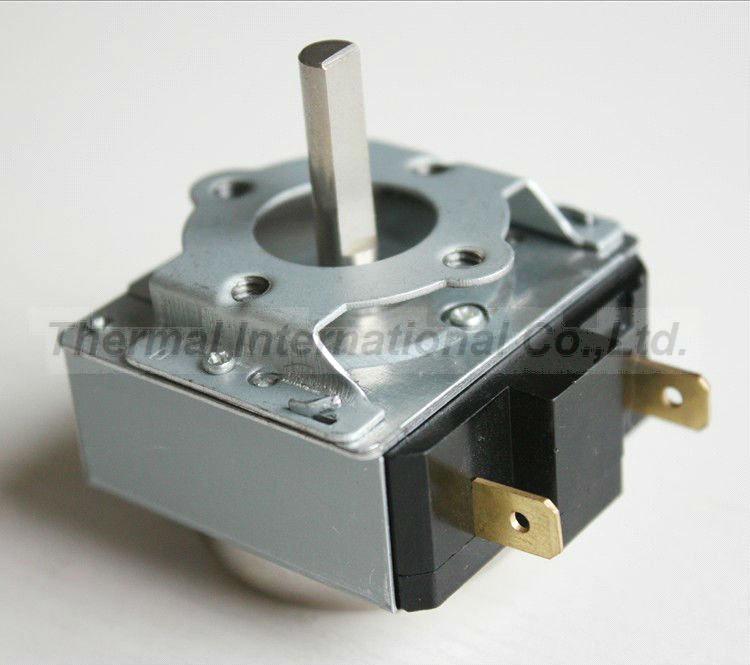

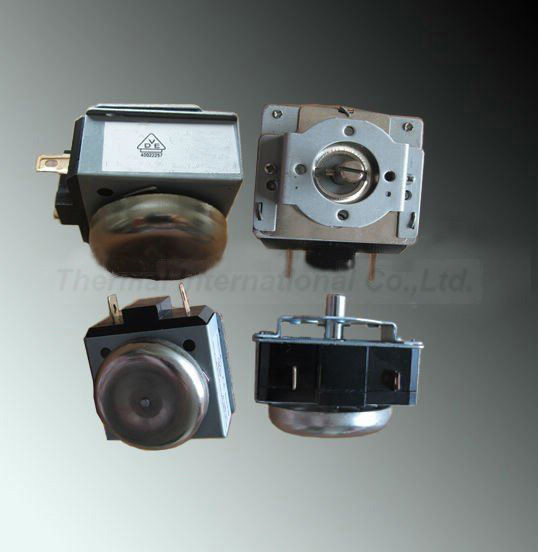

Mechanical Electrical Oven Timer with VDE Certificate
| FOB Price: | 0.73 - 0.75 USD/Piece |
|---|---|
| Supply Ability: | 600,000 Piece(s) per Month |
| Shipping: | 20days after remittance received. Shanghai Port. |
| Payment Terms: | L/C, T/T, D/A, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | According to client's demand. |
Quick Details
- Usage: Kitchen
- Theory: Mechanical
- Model Number: TIME-01
- Brand Name: Thermal International
- 16A, 250V: UL, VDE
Specifications
Mechanical Electrical Oven Timer with VDE certificate
Specifications
Usage: used on ovens,
Time range: 5,15,30,45,60,90,120 min.
Spec. : with bell or no bell
Contact: 16A, 250V
Certificates: UL, VDE
Time range: 5,15,30,45,60,90,120 min.
Spec. : with bell or no bell
Contact: 16A, 250V
Certificates: UL, VDE
Electric oven timer Description
SPECIFICATION
Time Setting Range: 5min/15min/30min/60min/75min/90min/120min/180min
Contact Capacity: AC250V 16A
Time Setting Directing: CW. Clockwise
Working Directing: CCW. Counter clockwise
Operating Temperature: -10C to +125 C
Working Angle: 270 degree / 5 degree
Insulation Resistance: 100M or more 500V DC
Withstand Voltage: 1 minute min. At 1500V AC, or 1 second min, at 1800V AC
Endurable Life: 10000times or more, at 5 times/min
Operating Torque: 3kgfcm
Release Torque: 5kgfcm
Time Tolerance: 5% or less
Time Setting Range: 5min/15min/30min/60min/75min/90min/120min/180min
Contact Capacity: AC250V 16A
Time Setting Directing: CW. Clockwise
Working Directing: CCW. Counter clockwise
Operating Temperature: -10C to +125 C
Working Angle: 270 degree / 5 degree
Insulation Resistance: 100M or more 500V DC
Withstand Voltage: 1 minute min. At 1500V AC, or 1 second min, at 1800V AC
Endurable Life: 10000times or more, at 5 times/min
Operating Torque: 3kgfcm
Release Torque: 5kgfcm
Time Tolerance: 5% or less
Packing: 200pcs/CTN CTN SIZE 42.5X30X30.5CM N. W. 17KG G. W. 18KG
Certificates: UL, VDE, CQC
