Home  >Products Catalog > Mechanical Electrical Oven Timer > British Type Infinite Switch

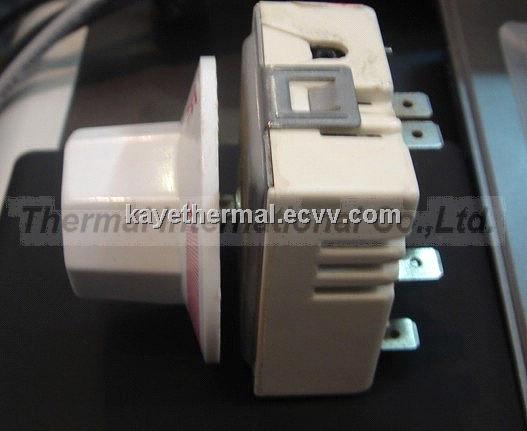

British Type Infinite Switch SafeBuy Supplier Member

Supply Ability: 2,000 Piece/Pieces per Day
Shipping: Shenzhen/Guangzhou/Shanghai
Payment Terms: L/C, T/T, Western Union
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: standard packing

Quick Details

  • Max. Voltage: 230V
  • Max. Current: 12A
  • Model Number: EN01-1
  • Brand Name: Thermal
  • Usage: oven

Specifications

  • British Type Infinite Switch also known as Energy regulator is used in the cooking appliance, which designed to have the lowest terminal height, in the smallest physical package and still it provides a fully featured control
  • This benefits the customer by providing design flexibility and material savings
  • An energy regulator is not a thermostat, it cannot measure temperature, it also be called Infinites and simmerstats
  • Main features:
    • Insulation resistance: ≥ 100MΩ
    • Electric intensity: AC 2000V/Min
    • Life span: ≥10000 times
    • Housing dimensions: 50 x 42 x 39 mm (shaft not included)
    • Housing material: high temperature resistant PPS
    • Terminals: 6.3 x 0.8 quick connect
    • Adjustment: dia. 6 mm with 4.8 flat shaft, length 11.4 mm (UK style models with 4.75 mm dia. shaft available on request, MOQ apply)
  • Angulation:
    • Mechanical: 360°, with two pole off position at 0°
    • Electrical: Min position at 75°angular, max position at 285° angular. (Other angulation with max at 208.5° available on request, MOQ apply)
    • Mounting: Center ? BSPP bush with centering studs
    • 2 M4, 28mm distance screws mounting bracket available on request (MOQ apply)
    • Rating: 12A 230V resistive, SPDT+ on off pilot contact. Other contact configuration (SPST, SPDT without pilot, double circuit and more are available on request, MOQ apply)
    • Max ambient temperature: 125°C/257°F
    • Approval: CE
