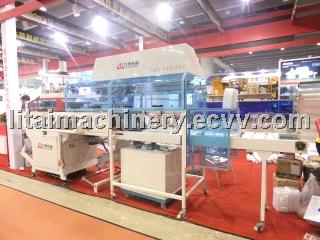

Automatic BOPS Thermoforming & Stacking Machine

Supply Ability:	12 Set/Sets per Month
Shipping:	30days. Based on Fob Ningbo or Shanghai Port Of China.
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Exporting Wooden Packing (First antirust oil,second film packing,final wooden packing)

Specifications

Plastic Thermoforming Machine specifications:
1. Full-Automatic BOPS Thermoforming & Stacking Machine TQA-520/580 Application area:

1): It suits for forming plastic sheets like BOPS, PVC, HIPS, PET, PS other sheets.

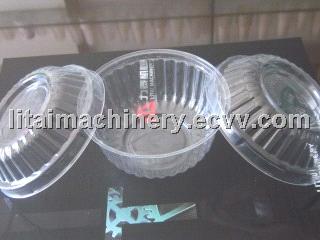

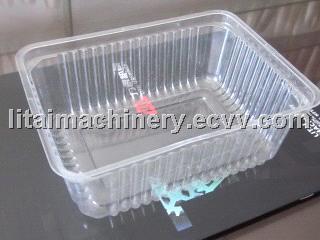

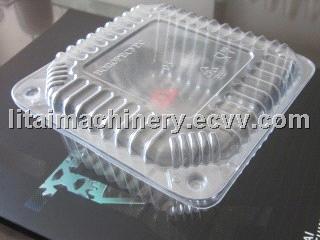

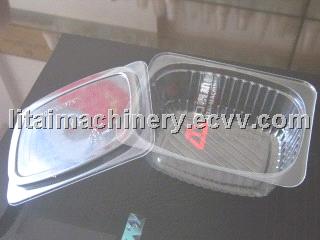

2): The machine produces all kinds of disposable container and other plastic products, such as fast food containers, dishes, trays, bowls, lids, boxes for preserved fruits, pickles, candies, cakes, chocolates, snacks, fast food, package for vegetables, fruits, cooling fishery products, toys, small hardware, clothes and all kinds of commodity, etc.

2. Function:

1) This machine is full-automatic type which integrated electricity, mechanic, and pneumatic with high technology. It has full automatic, semi-automatic and manual functions. It can finish transmitting, heating, forming, cutting, stacking at different stations in one processing.

2) This machine adopts PLC and touch screen, capability reliable, quality stable, fault few. Servo motor drives the sheet transport system.

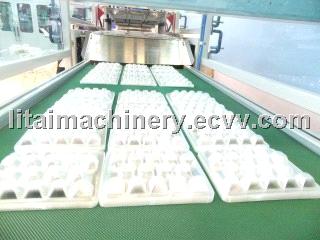

3) It combines sheet sending, heating, shaping, and cutting into one process. The final products already cut one by one.

4) The equipment' s gas and electricity element is made in Japan, Germany, Korea, Taiwan, France etc.

5) It has quickly production capacity, highly utilization ratios of plastic sheet, low air consumption and maintenance, beautiful final ready products, so it is new generation ideal package equipment.

3. Main Technical Parameter:

Model:	TQA-520/580
Forming area:	520mm× 580mm
Forming height:	100mm
Max working speed	10-20cycle/min
Rated power:	20kw AC380v 50Hz
Air pressure	0.6-0.8mpa
Air consumption:	1.0 m³/min
Water consumption:	9L/min (Recycled water)
Overall dimension:	L5200 x W1500 x H2350mm
Weight:	About 2.5T
