Home  >Products Catalog > Full Automatic BOPS Thermoforming Machine > Automatic Plastic BOPS Thermoforming Machine

Automatic Plastic BOPS Thermoforming Machine SafeBuy Supplier Member

FOB Price: 25,000.00 - 30,000.00 USD/Set
Supply Ability: 12 Set/Sets per Month
Shipping: 40 Days.
Payment Terms: L/C, T/T
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Standard Export Packing.

Quick Details

  • Processing Type: Plastic Thermoforming Machine
  • Warranty: 1 YEAR
  • Certification: CE
  • Weight: 2.5T
  • Dimension(L*W*H): 5200*1500*2350MM
  • Power(W): 23kw
  • Voltage: 380V, 50HZ
  • Model Number: TQA-520/580
  • Brand Name: Litai
  • Condition: New

Specifications

Automatic Bops Thermoforming Machine/Cutting Machine

1. Main configuration of this Thermoforming Machine/Cutting Machine:

PLC: SIEMENS(Germany) (1set)

Touch Screen: HITECH (Taiwan) (1set)

Sheet Feeding: YASKAWA (Japan) (1set)

2. Application Area:

1): It suits for forming plastic sheets like BOPS, PVC, HIPS, PET, PS sheet.

2): the machine produces all kinds of disposable container and other plastic products, such as fast food dishes, trays, bowls, lids, plates, boxes for preserved fruits, pickles, candies, cakes, chocolates, snacks, fast food, package for vegetables, fruits, cooling fishery products, toys, small hardware, clothes and all kinds of commodity, etc.

3. Technical Parameter:

Model:
TQA-520/580
Forming area:
520mm×580mm
Forming height:
100mm
Sheet width(max):
600mm
Sheet thickness rang:
0.10-1.00mm
Sheet roller diameter:
710mm
Max working speed:
About 14-20cycles/min (include stacking)
Main supply voltage:
20kw 380v 50Hz
The max. Stacking travel height:
330mm.
The max. Stacking height:
330mm - the product's height.
PLC control:
YES
Number of vacuum grippers:
14pcs
Overall dimension:
About 5330mm x 1450mm x 2550mm
Weight:
About 2.5T



We wish to cooperate with you on our Thermoforming Machine/Cutting Machine to create a bright future and mutual benefit.

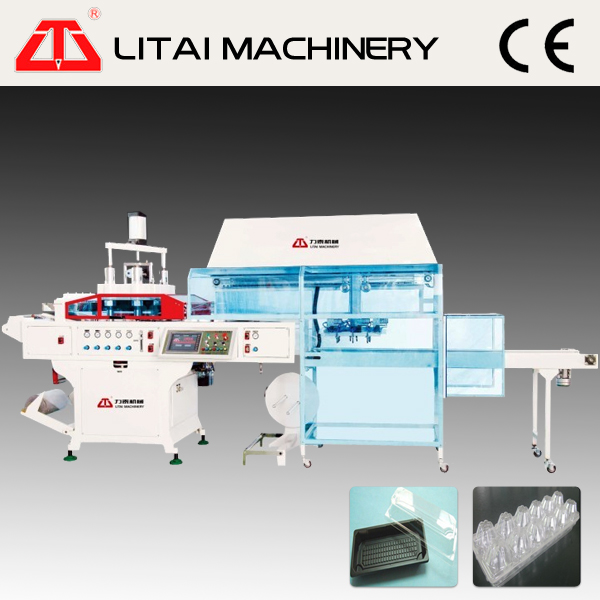

Automatic Plastic Bops Thermoforming Machine
Automatic Plastic Bops Thermoforming Machine

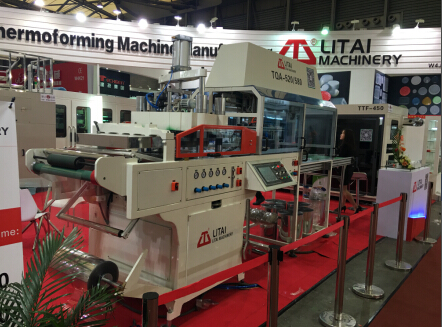

2016 ChinaPlas

Automatic Plastic Bops Thermoforming Machine
Automatic Plastic Bops Thermoforming Machine
Automatic Plastic Bops Thermoforming Machine
