IEC 61032 Jointed Test Finger SafeBuy Supplier Member

FOB Price: 100.00 - 600.00 USD/Set
Supply Ability: 1,000 Set/Sets per Month
Shipping: by express, sea or air
Payment Terms: T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Aluminum box

Quick Details

  • Usage: Electric safety test
  • Power: Electronic
  • Model Number: CX-2B
  • Brand Name: Chuagnxin
  • Material: Delrin and steel
  • Standard: IEC61032, IEC60335, IEC60065 etc.

Specifications

IEC 61032 Jointed Test Finger
IEC 61032 Jointed Test Finger is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Purpose:

The Jointed Test Finger is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a finger.

Conforms to:

The IEC Jointed Test Finger is conform to the standard IEC61032-1997, IEC60529-2001, GB/T4208-2008 and UL etc.

Notes:
Both joints shall permit movement in the same plane and the same direction through an angle of 90o with a 0o to +10o tolerance.
Technical Parameters:

Kunrled finger diameter 12mm
Knurled Finger length 80mm
Baffle plate diameter 50mm
Baffle plate length 100mm
Baffle thickness 20mm

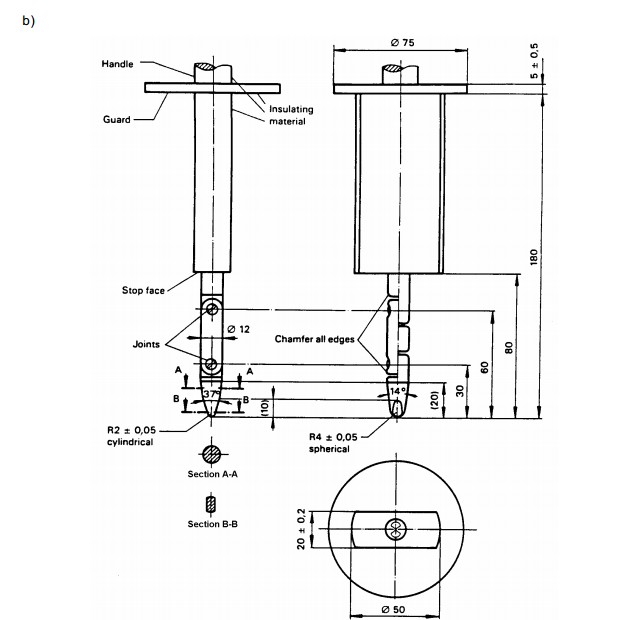

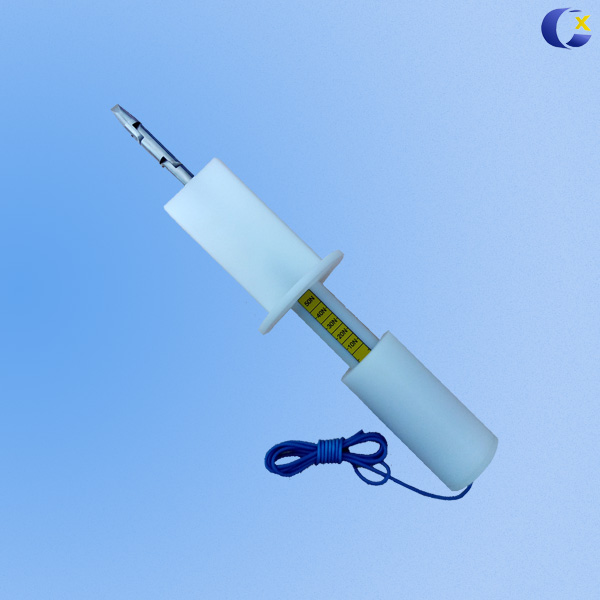

  Picture:

 IEC61032JointedTestFinger

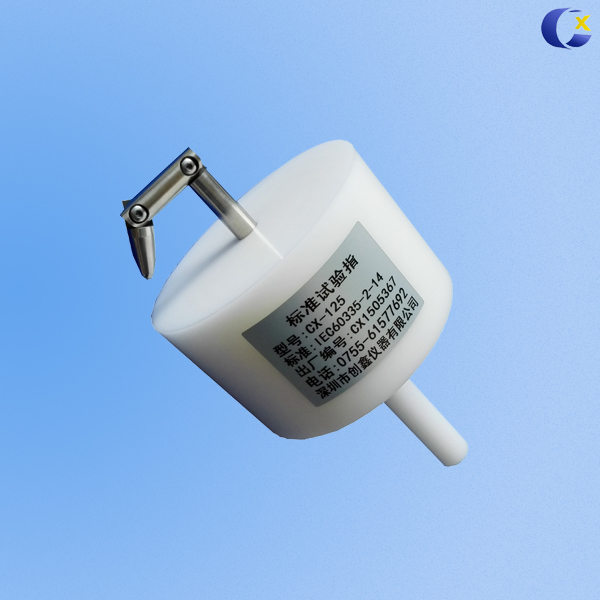

Finger part:
IEC61032JointedTestFinger
Package:
IEC61032JointedTestFinger
