IEC 61032 Test Probe 18 with 8.6mm Finger

FOB Price:	300.00 - 800.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	by express, sea or air
Payment Terms:	Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Aluminum box

Quick Details

Usage: electric safety test
Power: Electronic
Model Number: C-18
Brand Name: Chuangxin
Material: Delrin and steel
Standard: iec 61032

Specifications

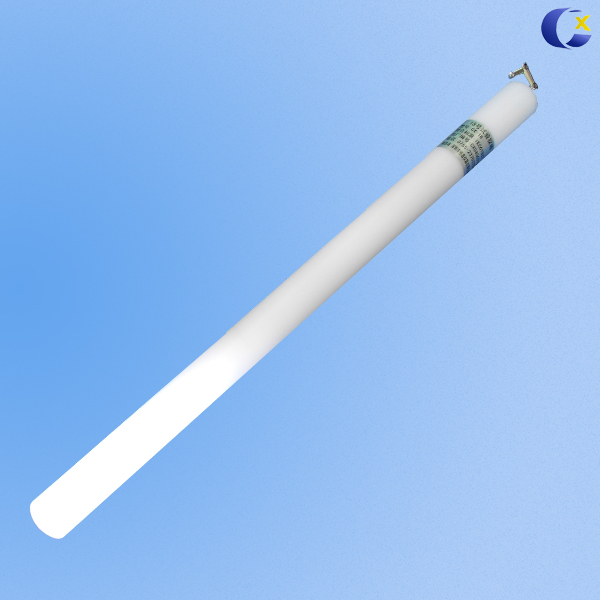

IEC61032 Test Probe 18

The IEC 61032 Test Probe 18 is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Purpose:

The IEC 61032 Test probe 18 is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.

Conforms to:

Test Probe 18 is conform to the standard IEC61032-1997, IEC60529-2001, GB/T4208-2008 and UL etc.

Technology Parameter:

Knurled finger diameter	8.6mm
Head radius	4.3mm
Knurled finger length	57.9mm (three knurls, 19.3mm/knurl)

Notes:

The extension of the handle represents the arm of the child. And the handle is provided with an extension 451.6mm long, and the probe should be applied with or without this extension, whichever is the more onerous condition.

Both joints shall permit movement in the same plane and the same direction through an angle of 90^o..
