Home >Products Catalog > Auto- window patching machine Model TM-1080-ISEEF.com

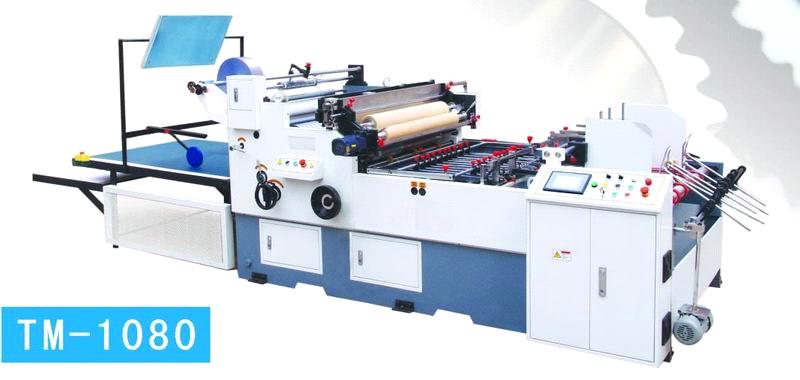

Auto- window patching machine Model TM-1080-ISEEF.com

Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	suitable for long distance transportation

Specifications

MAIN STRUCTURE FEATURES

Air suction bottom paper-extracting is available to supply paper constantly without a pause and improve the efficiency. Cam three-spot paper supplying is steady and reliable. High-accuracy paper setting systems assure the quality. Rotary pasting ensure coating averagely. stepless adjusting window film-sticking length, convenient and reliable.

This machine is suitable for stick film on paper window, as well as for sticking non-woven fabric and foilpaper on envelope paper

TECHNICAL PARAMETER

Max working velocity	7000pcs/h
Applicable paper ration	200-1000gsm
Window film size	(40-600)*(40-780)mm
Film thickness	0.02-0.05mm
Specification of base paper	(160-700)*(80-1080)mm
Total power	10kw
Machine weight	2500kgs
External dimension(LWH)	496019601600mm
