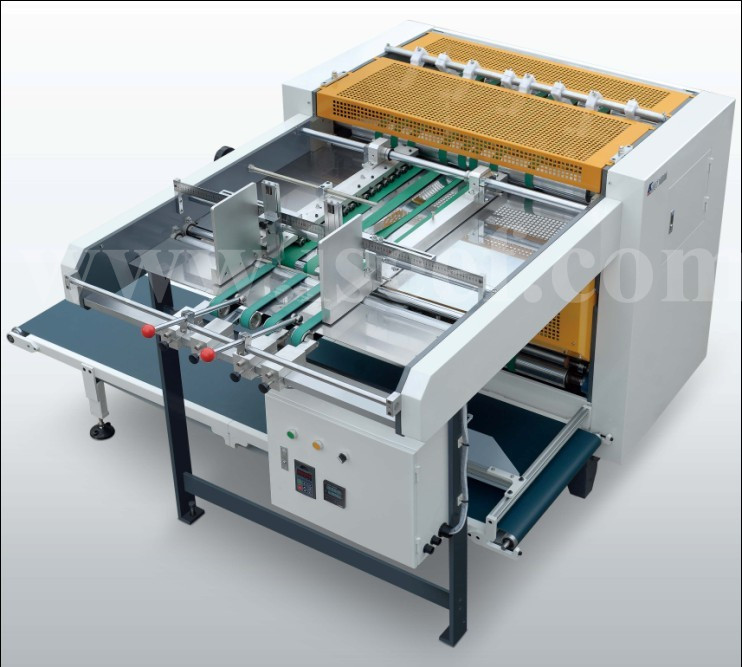

Automatic grooving machine Model ZG-900
| Shipping: | 30% advance payment be paid by TT, balance paymen shall be paid before shipment |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard export package |
Quick Details
- Type: Other
- Dimension(L*W*H): 2100*1350*1400mm
- Weight: 1480kgs
- Power: 3kw/
- Voltage: 380V/50HZ/3 PHASE (the voltage can change with surcharge)
- Condition: New
Specifications
Application:
This machine is mainly used for making V and U type groove on ash cardboard, copperplate paper, glossy paper, mounted cardboard, paper board and MDF board etc.
Description:
The machine with auto feeding by belt friction. Single side auto correction which guarantee precision and solve destabilizing of manual feeding. The machine is suitable for rigid boxes, book boxes, wine box, mobile phone box, jewelry box, moon cake box, etc.
Main function:
1. Automatic correction, includes left side guider adjustment
2. Auto feeder
3. Auto collection
4. Automatic dust removal
MAIN TECHNICAL INDEX
|
Model |
ZG-900 |
|
Width of cardboard |
50-850mm |
|
Length of cardboard |
110-550mm |
|
Distance of each groove |
0-800mm |
|
Thickness of cardboard |
200gsm-2.5mm |
|
The amount of groove |
9 pieces one time |
|
Production speed |
20-25m/min |
|
Power |
3kw/380v |
|
Dimension(L*W*H) |
2100*1350*1400mm |
|
Weight |
1480kgs |
