JIAXIN EPS Mold CNC Milling Machines JX-2040E

FOB Price:	16,000.00 - 50,000.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	50 days arrived QINGDAO port
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	steel frame and plywood box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Certification: CE,CIQ,QC,SGS
Weight: 3000KGS
Dimension(L*W*H): 3800x2200x1650mm
Power(W): 7.5KW
Voltage: AC380V/50Hz
Model Number: JX-2020E
Brand Name: JIAXIN
CNC or Not: CNC
Condition: New

Specifications

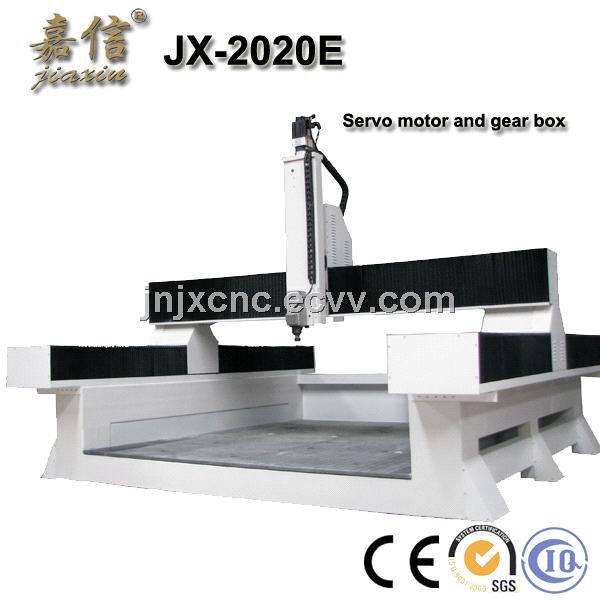

JIAXIN EPS Mold CNC Milling Machines JX-2020E

Model	JX-2020E
X,Y Axis working Area	2000X2000mm
Z Axis travel	800mm
Max Feeding Speed	20m/min
Power (not including Spindle)	1500W
Spindle power rate	7.5kw
Spindle rotating speed	8000/12000/18000rpm
Engraving Accuracy	0.05mm
command	G code.u00mmg*.plt
work mode	Step motor /Servo motor optional
work voltage	AC380V/50Hz

Suitable Industry

Molds industrial
It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wood mould for boat, airplane &
train, and propeller etc.

Musical instrument industry
Engrave on the 3D surface of large-sized musical instrument, and shape cutting.

Applied Materials
Wood, Polyfoam(EPS) and carbonizing mixed material of non-metal.

Performance Characteristics

1.Linear Square Guideway, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation,High precision, long
lifetime, cutting with high precision.

2.seamless welded steel support, work surface backing iron plate, strength and good rigidity, machine loading capacity
up to more than one ton.

3.Constant power spindle motor, cutting intensity, high efficiency

4.Y axis with dual-motor synchronous drive,featured matching, to ensure smooth operation

5.Using high precision rack and pinion drive, high precision,more fast and powerful

6.Machine with automatic vacuum system and industrial dust collect systems, all-round protection equipment
transmission parts.

7.Software:compatible with Type3/Artcam/Ucancam, a variety of CAD / CAM Design Software

8.CNC digital control, with the breakpoint memory suitable for advertisement continued carving, supporting up to 9
points, can be carried anywhere arbitrary carving

9.Separately control cabinet ,and control system, more convenient operation.

Guarantee & aftersale service

Guarantee for 12 months,24hour technical support by emailor calling

User-friendly English manual and Video CD for machine using and maintaining.
