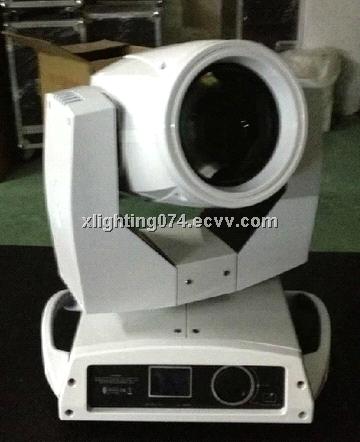

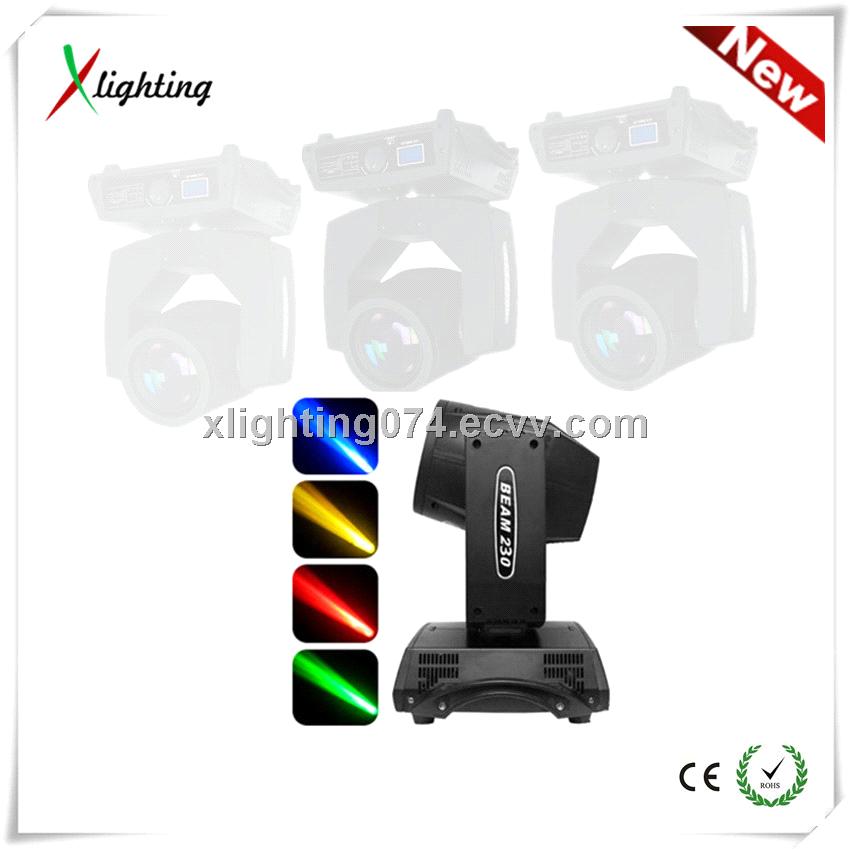

2014 super bright 230w 7R beam moving head light stage lighting

FOB Price:	1.00 - 600.00 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	by air or by sea
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Input Voltage(V): 110V-220V HZ50-HZ60
Lamp Power(W): 230w
Lamp Luminous Flux(lm): 165000
Color Temperature(CCT): 8000K
Working Temperature(℃): -40 - 60
Working Lifetime(Hour): 2200hours
IP Rating: IP55
Certification: CE,ROHS
Emitting Color: Changeable
Base Type: 5R
Brand Name: xlighting
Model Number: X-M230

Specifications

2014 super bright 230w 7R beam moving head light stage lighting

◆Lamp Source
7 R osram lamp
Color temperature: 8,500K
Acerage Life: 2,200Hrs
◆Electrical
Input Voltage: AC90-240V 50/60HZ
Power Consumption: 280W
◆Control
Display: 4-button LED digital display or LCD display selectable, can be turned 180°&record the using time
Control Protocol: DMX512,automatic and master/slave mode
Channel: 16/20CH
◆Optical System
YL(YiLong) 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: Rotating 8-facet prism
Frost filter
Beam angle:0-3.8 degree
◆Movement
Pan:540°
TilL:270°
Pan/Tilt Resolution: 16bit
Gobos&Colors
Rotating Gobos: 1 gobos wheel with 17 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
◆Physical
Housing: Flame-retardant plastic
Housing Color: Black or White selectable
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan and aluminum radiator
◆Certificate&Satety
Certificate: CE
Working environment: Indoor
Operation temp:-40~60℃
◆Packing
Accessories: Standard power cable, signal cable and omega
Optional safety cable and clamps
Product Size: 330*390*490mm
Packing Size: 420*480*580mm
N.W.:17.00KGs
G W.:19.5KGs

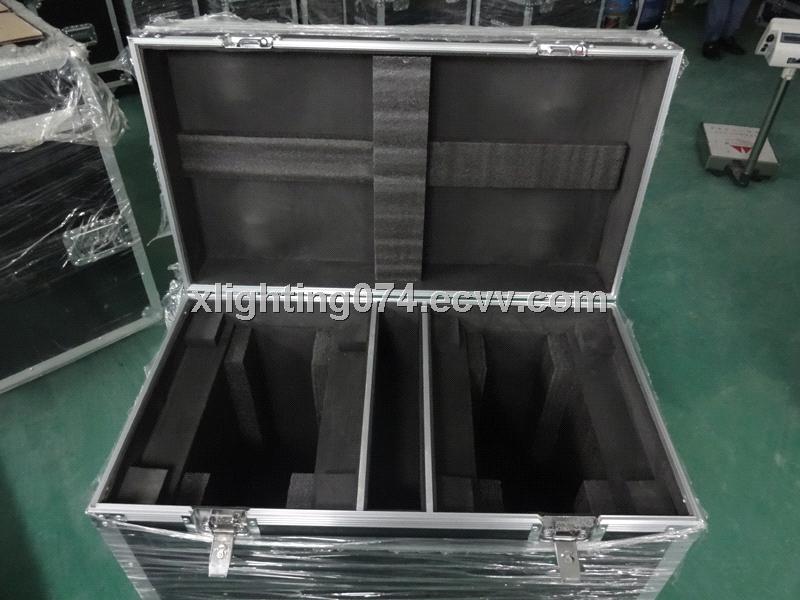

Packing: Carton or flight case
