Home  >Products Catalog > Metal CNC Router > Mould CNC Router TZJD-6060M

Mould CNC Router TZJD-6060M SafeBuy Supplier Member

FOB Price: 1,000.00 - 2,000.00 USD/Set
Supply Ability: 100 Set/Sets per Month
Shipping: FOBQingdao, within 5 working-days delivery time
Payment Terms: T/T
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: plywood case, fumigating wooden packaging

Quick Details

  • Brand Name: TZJD
  • Model Number: 6060M
  • Working area: 600mm*600mm*150mm

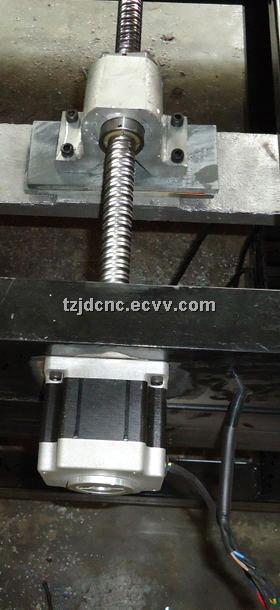

  • Machine structure: Ballscrew
  • Machine color: White
  • Spindle: Permenent torque spindle
  • Spindle power: 2.2kw, 3kw
  • Working table: T-Slot with PVC board
  • Interface: USB
  • Whole body: Casting iron
  • Available: Water pump system
  • Guide rails: High precision HIWIN Square linear bearings

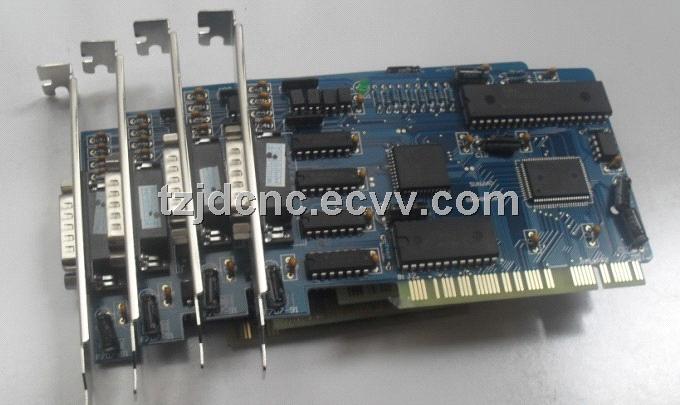

  • Control system: Nc studio card

Specifications



Product Features:


1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.


2. The gantry was confirmed and the working table can be move manipulable,

improve the working-efficiency.


3. Tool sensor system, save extra time to adjust the machine.


4. Use high speed drive motor, also servo motors for optional.


5. Memory function ensures the processing point when the blade is broken or having to postpone the process.


6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,

CAM. It achieves 2D and 3D works easily.


7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.


8. It widely used for small materials working, without noise & high-power.

Many gear speed regulation and control function & Curve and linear speed independent control.


9. Water tank system on the body & water-cooled system automatically.





Specification Parameter

Description

Parameter

TZJD-6060M

Working Area (X*Y*Zmm)

600mm*600mm*150mm

Max Engraving Speed

6000mm/min

Frame

Cast Steel

Spindle power(KW)

1.5 KW/2.2KW/3KW

Max. Power Consumption(Without spindle)

1.2KW

Spindle Speed

6000-24000rpm

Resolution

0.005mm

Repeatability

0.01mm

Voltage

AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)

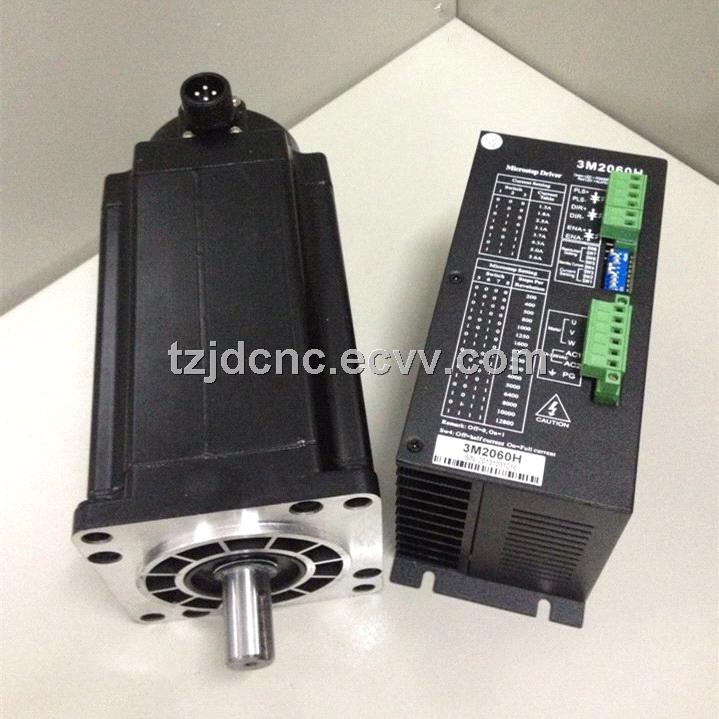

Drive motor

Stepper(option:Servo motor)

Working Dictate

G Code*.u00*.mmg*.plt

Operating system

Nc-studio/DSP optional

Software environment

Windows98/2000/xp

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3,,Ucancam,Artcam Software)

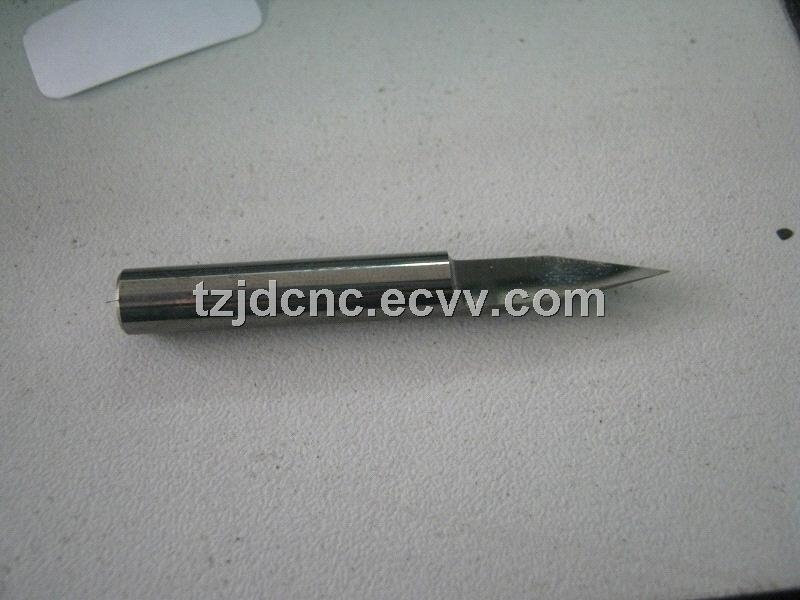

Diamerer of cutter

ф3.175, ф6mm, ф12.7mm, ф2,ф1, etc.

Running Environemt

Temperature: 0℃~45℃

Relative humidity: 30%~75%

Machine necessary

Dust collector system, spindle cover, Japan Panasonic Servo motor, Auto-oiling system, Tool-sensor, water tank system, water-cooled system.




Applicable materials:

Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,

PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.
