| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood case, fumigating wooden packaging |
Quick Details
- Brand Name: TZJD
- Model Number: 6060MA
- Working area: 600mm*600mm*300mm
- Machine structure: Ballscrew
- Machine color: White
- Spindle: Permenent torque spindle
- Spindle power: 2.2kw, 3kw, 4.5kw
- Working table: T-Slot with PVC board
- Interface: USB
- Whole body: Casting iron

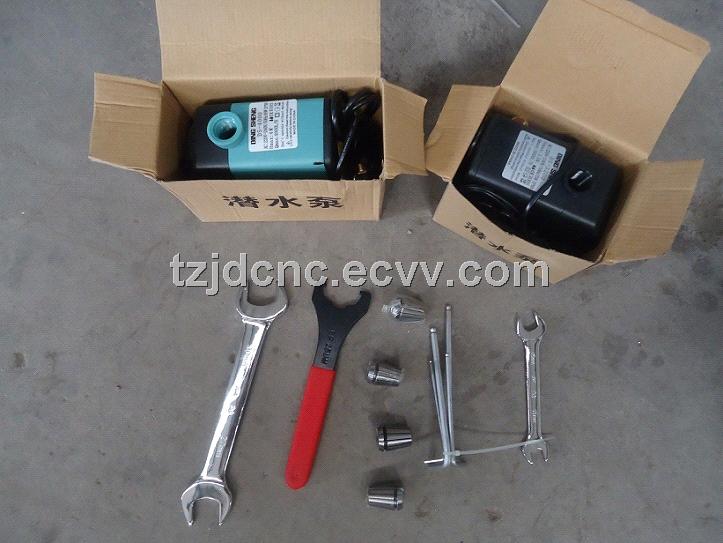

- Available: Water pump system

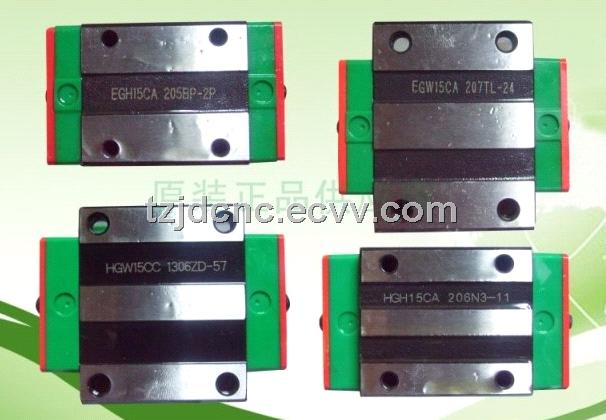

- Guide rails: High precision HIWIN Square linear bearings
- Control system: Nc studio card
- Necessary: Dust cover
Specifications
Product Features:
1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move manipulable,
improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional.
5. Memory function ensures the processing point when the blade is broken or having to postpone the process.
6. With better compatibility, can math with many programs such as Typle3, artcam, castmate, proE, Coreldraw/CAD,
CAM. It achieves 2D and 3D works easily.
7. This type machine can support these functions: drilling/milling, engraving/carving, cutting.
8. It widely used for small materials working, without noise & high-power.
Many gear speed regulation and control function & Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system automatically.
Specification Parameter
|
Description |
Parameter |
|
TZJD-6060MA |
|
|
Working Area (X*Y*Zmm) |
600mm*600mm*300mm |
|
Max Engraving Speed |
6000mm/min |
|
Frame |
Cast Steel |
|
Spindle power(KW) |
1.5 KW/2.2KW/3KW |
|
Max. Power Consumption(Without spindle) |
1.2KW |
|
Spindle Speed |
6000-24000rpm |
|
Resolution |
0.005mm |
|
Repeatability |
0.01mm |
|
Voltage |
AC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ) |
|
Drive motor |
Stepper(option:Servo motor) |
|
Working Dictate |
G Code*.u00*.mmg*.plt |
|
Operating system |
Nc-studio/DSP optional |
|
Software environment |
Windows98/2000/xp |
|
Interface |
USB |
|
Flash memory |
128M(U Disk) |
|

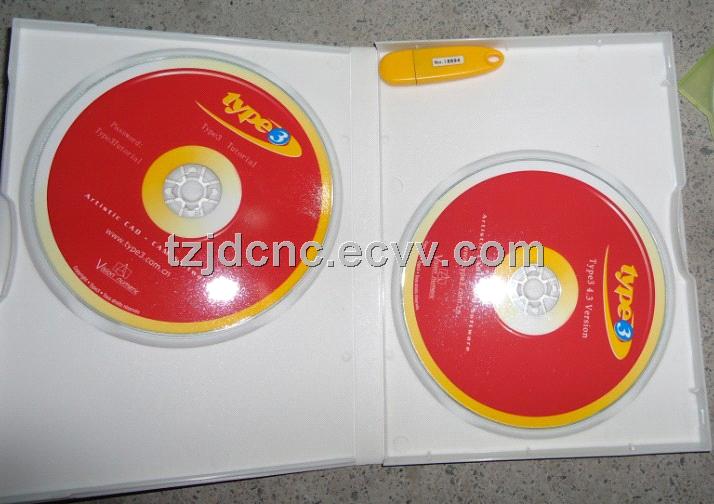

Software Compatability |
Type3,,Ucancam,Artcam Software) |
|

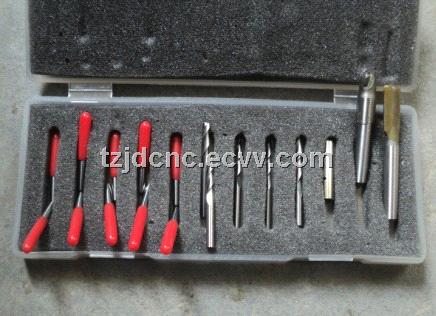

Diamerer of cutter |
ф3.175, ф6mm, ф12.7mm, ф2,ф1, etc. |
|
Running Environemt |
Temperature: 0℃～45℃ |
|
Relative humidity: 30%～75% |
|
|
Machine necessary |
Dust collector system, spindle cover, Japan Panasonic Servo motor, Auto-oiling system, Tool-sensor, water tank system, water-cooled system. |
Applicable materials:
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum plate, timber, KT board, ABS board,
PVC board, acrylic, jade, sign board, mould, bronzing, badge, pattern mould, art carve, coin dyes, etc.
