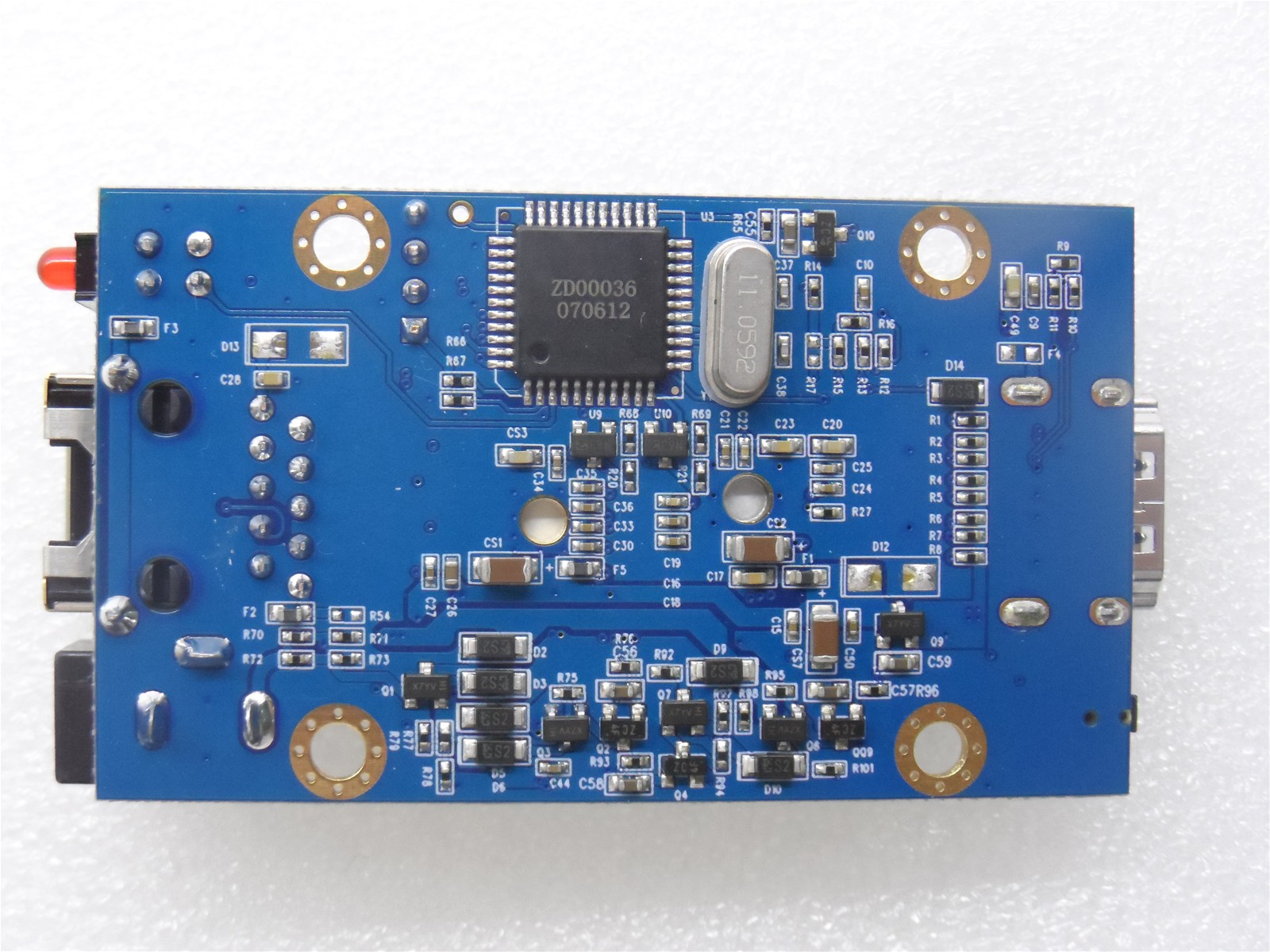

PCB Substrate Fr4 PCB
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: ABP
- Model Number: SE0012
- Base Material: FR-4
- Copper Thickness: HOZ-6OZ
- Board Thickness: 0.2mm-6.0mm
- Min. Hole Size: 0.1mm
- Min. Line Width: 0.075mm
- Min. Line Spacing: 0.075mm
- Surface Finishing: HASL
Specifications
ABP ELECTRONICS LIMITED was established in 2004. We concentrate on 5-200 sets quick-turn PCB&PCBA manufacturing.We are devoted to provide professional services and high quality PCB&PCBA compliant with RoHS requirement to overseas agents and distributors. We provide PCB&PCBA manufacturing for more than 1020 customers in telecommunication, consumptive electronics, industrial test and control, medical equipment, power supply, research institution, etc in global market.
PCB Capability
|
Item |
Manufacture Capability |
|
Layers |
2-30L |
|
Material Types |
Fr4,Fr5,High-Tg,Halogen Free,Rogers,Isola,Taconic,Arlon,Teflon,Aluminum Based |
|
Max. Panel Dimension |
646mm*1200mm |
|
Outline Tolerance |
±0.10mm |
|
Board Thickness |
0.2mm-6.0mm |
|
Board Thickness Tolerance |
±10% |
|
Dielectric Thickness |
0.075mm-0.20mm |
|
Min. Track Width |
0.075mm |
|
Min. Track Space |
0.075mm |
|
External Cu Thickness |
18um-210um(HOZ-6OZ) |
|
Internal Cu Thickness |
18um-210um(HOZ-6OZ) |
|
Drilling Bit Size(CNC) |
0.15mm-6.50mm |
|
Finished Hole Dimension |
0.1mm-6.0mm |
|
Hole Tolerance |
±0.05mm |
|
Hole Position Tolerance |
±0.05mm |
|
Laser Drilling Hole Size |
0.075mm |
|
Aspect Ration |
10:1 |
|
Solder Mask |
Green, Blue, White, Black, Red, Yellow, Purple, ect. |
|
Min Solder Mask Bridge |
0.050mm |
|
Plugged Hole Diameter |
0.20mm-0.50mm |
|
Impedance Control |
±10% |
|
Surface Finishing |
HASL,HASL(lead Free), Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold(up to 100u" ) |
