Home  >Products Catalog > Multi Head CNC Router > 5.5kw vacuum pump Wood CNC Engraving Router machine TZJD-M25BD

5.5kw vacuum pump Wood CNC Engraving Router machine TZJD-M25BD SafeBuy Supplier Member

FOB Price: 5,555.00 - 9,999.00 USD/Set
Supply Ability: 150 Set/Sets per Month
Shipping: 6 working-days Delivery time
Payment Terms: T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: fumigating wooden case

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Model Number: M25BD
  • Brand Name: TZJD
  • Condition: New
  • Working area: 1300mm*2500mm*300mm
  • Machine color: as customized
  • Machine structure: Square tube welding whole body

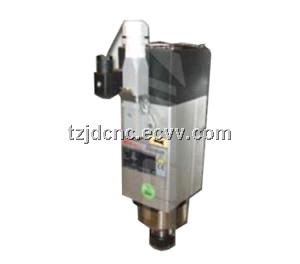

  • Spindle: 5.5kw/6kw/7.5kw air-cooling
  • Working table: vacuum absorptional table with vacuum pump system
  • Motor driver: stepper servo
  • Controller: Ncstudio, DSP, Syntec, LNC
  • Necessary system: Tool calibration system, Oil lubrication system
  • Guie rails: Taiwan HIWIN Square linear bearings
  • Software: Type3 Artcam English version

Specifications

                                      5.5KW vacuum pump Wood CNC Engraving Router machine TZJD-M25BD

1- Machine photo
ecaltvv

2- Main Features
1. The lathe bed was cast steel square tube welding body, strong and without distortion.

2. Multi Head works alternately, it can achieve the tools change automatic quickly. Largely eliminating the need for manual tool change time,  improve working-efficiency & working-speed.

3. Advanced DSP Controller system, read U disk. Complete work offline, don't use computer resources.

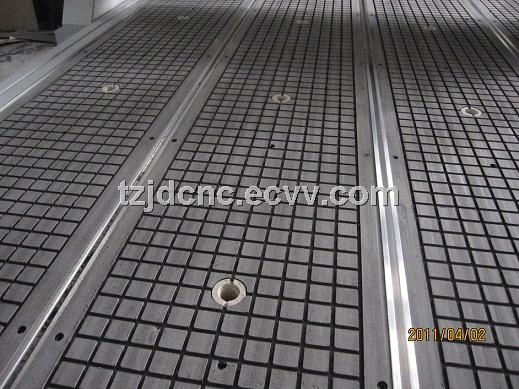

4. Vacuum absorption table was adding, it can absorp the wooden materials closely.

Guarantee the working-efficiency.
5. Vacuum pump system with six zones, vacuum pump system.
6. Oil-lubrication system. Extra time can be saved. Meantime prolong the service life of the machine.

7. Performance and carefree: breakpoint carving, power failure recovery, processing time forecasting.


3- Sample photo
ecaltvv
ecaltvvecaltvv

ecaltvv


4-Technical specification

Description

Paramater

TZJD-M25BD

Working Area (X*Y*Zmm)

1300mmx2500mmx300mm

X, Y Structure

Gear Wheel Transmission, Shaft Linear Bearings

Z Structure

Ball Screw/Gear Wheel

Table Surface

Bakelite Vacuum Absorption Table

Max Engraving Speed

35000mm/min

Frame

Cast Steel Square tube welding

Spindle power(KW)

4.5Kw/5.5kw/6kw/7.5kw/8kw/9kw, *2

Max. Power Consumption(Without spindle)

2.0KW

Spindle Speed

6000-24000rpm

Resolution

0.0025mm

Repeatability

0.01mm

Voltage

AC220V,50/60Hz,1PH(option,380V 3PH)

Drive motor

 Stepper/Servo(option)

Working Dictate

G Code*.u00*.mmg*.plt. HPGL

Operating system

Dsp System

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3,Ucancam, Artcam Software

Running Environemt

Temperature: 0℃~45℃

Relative humidity: 30%~75%

Windows98/2000/xp

Machine available

Vacuum absorption table, 5.5KW vacuum pump system, Auto-oiling system, Dust collector with dust cover, Spindle cover device, Rotary device
