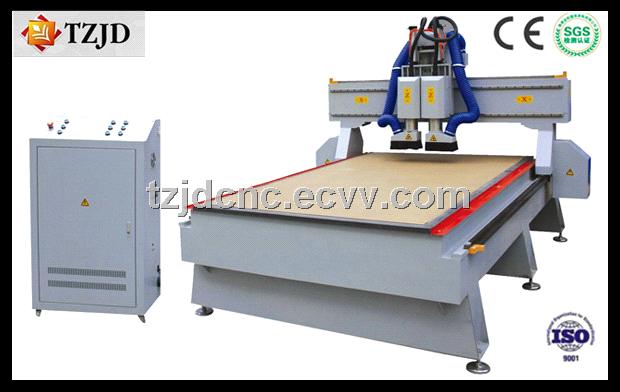

1325D Multi Head CNC Router for wood

FOB Price:	6,999.00 - 8,999.00 USD/Sheet
Supply Ability:	200 Set/Sets per Month
Shipping:	5 working-days Delivery time
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	fumigating wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Model Number: 1325D
Brand Name: TZJD
Condition: New
Working area: 1300mm*2500mm*200mm
Working table: Vacuum absorptional table with vacuum pump system
Spindle: 2.2kw/3.0kw/4.5kw/6kw/7.5kw/9kw water-cooling, *2
Structure: Rack gear
Control system: NC studio, DSP, Syntec, LNC
Guide rails: HIWIN Square linear bearing
Motor driver: stepper, servo
Interface: USB, PCI
Software: Type3 Artcam English version
Necessary system: Tool calibration system, Oil lubrication system

Specifications

1325D Multi head CNC Router for wood TZJD-1325D

1- Product Features

1. The lathe bed was cast steel square tube welding body, strong and without distortion.

2. Heavy-duty structure in "Trapezoid" type, and big Gantry bracket.

3. Multi Head works alternately, it can achieve the tools change automatic quickly. Largely eliminating the need for manual tool change time, improve working-efficiency & working-speed.

4. Advanced DSP Controller system, to engrave/cut 3D designs within multiple-lays.

5. Vacuum absorption table was adding, it can absorp the wooden materials closely.

Guarantee the working-efficiency.

6. Vacuum pump system with six zones, vacuum pump system.

7. Oil-lubrication system. Extra time can be saved. Meantime prolong the service life of the machine.

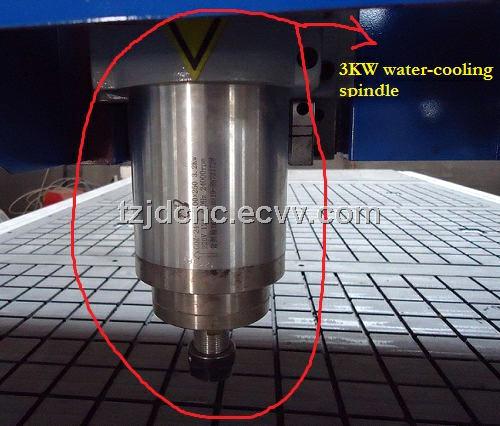

8. High power spindle 4.5KW/5.5KW/6KW/9KW, brushless, water-cooling/air-cooling, working vigorously with low noise.

9. Type3/Artcam/Ucancam/JD Paint/Coreldraw/Castmate/Wentai these related working software.

10. Performance and carefree: breakpoint carving, power failure recovery, processing time forecasting.

2- Specification Parameter

Description	Paramater
Description	TZJD-1325D
Working Area (XYZmm)	1300mmx2500mmx200mm
X, Y Structure	Gear Wheel Transmission, Shaft Linear Bearings
Z Structure	Ball Screw/Gear Wheel
Table Surface	Bakelite Vacuum Absorption Table
Max Engraving Speed	24000mm/min
Frame	Cast Steel Square tube welding
Spindle power(KW)	*4.5Kw/5.5kw/6kw/7.5kw/8kw/9kw, 2**
Max. Power Consumption(Without spindle)	2.0KW
Spindle Speed	6000-18000rpm
Resolution	0.0025mm
Repeatability	0.01mm
Voltage	AC220V,50/60Hz,1PH(option,380V 3PH)
Drive motor	Stepper/Servo(option)
Working Dictate	G Code.u00.mmg*.plt
Operating system	Dsp System
Interface	USB
Flash memory	128M(U Disk)
Software Compatability	Type3,Ucancam, Artcam Software
Running Environemt	Temperature: 0℃～45℃
	Relative humidity: 30%～75%
	Windows98/2000/xp
Machine available	Vacuum absorption table, 5.5KW vacuum pump system, Auto-oiling system, Dust collector with dust cover, Spindle cover device, Rotary device
