3D welded wire fence

FOB Price:	15.00 - 30.00 USD/Set
Supply Ability:	6,800 Square Meter/Square Meters per Week
Shipping:	20day from deposite
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	1.it has soft sponge at the bottom of the pallet to avoid the bottom fence panel to be damaged by me

Quick Details

Type: Fencing, Trellis & Gates
Feature: Easily Assembled,Eco Friendly,FSC,Pressure Treated Timbers,Renewable Sources,Rodent Proof,Rot Proof,Tempered Glass,TFT,Waterproof
Frame Finishing: Powder Coated
Pressure Treated Wood Type: Heat Treated
Frame Material: Metal
Metal Type: Iron
Model Number: 3D Curvy fence 02
Brand Name: runtan
Wire diameter: 3.5mm-8.0mm
Fence mesh opening: 50X100mm,50X200mm
Fence panel width: 2000mm,2200mm
Fence post height: 1800mm,2000mm,2200mm,2400mm
Frame finished: galvanized ,PVC painted

Specifications

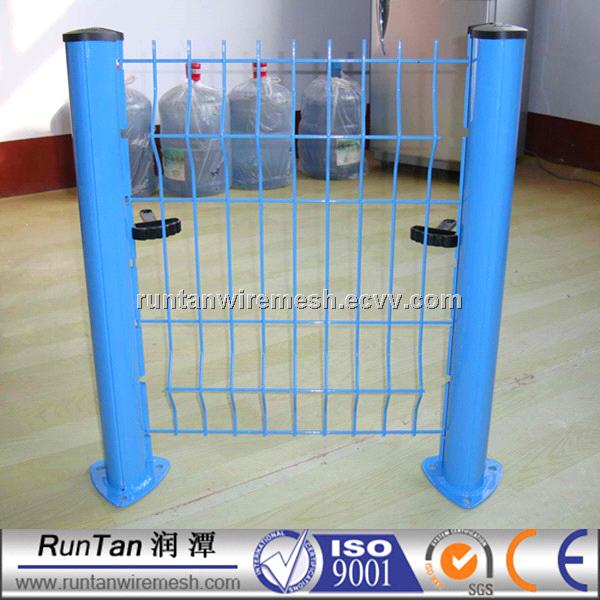

curvy welded wire mesh fence panel

Dirickk Axis also called curvy welded wire fence,bending fence. Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacing for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanized" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colors.

Material:

low carbon steel wire, galvanized wire and stainless steel wire.
ecaltvv

Characteristics:

Woven and welded, anti-corrosion, durable, easy to withstand outdoor exposure, corrosion-resisting, etc.

Surface Treatment:

Hot-dip galvanized steel wire / Hot-dip galvanized steel wire+power coated / low carbon steel wire+PVC coated
ecaltvv

fence panel:

Panel height	Panel Length	Wire Diameter	Mesh Size	Folds No.
1.03m	2.0m 2.5m	Gal+Spray Painted 3.85mm/4.0mm 4.85mm/5.0mm Gal+PVC Coated 3.0mm/4.0mm 4.0mm/5.0mm	50200mm 55200mm 50150mm 55100mm	2
1.23m				2
1.5m				3
1.53m				3
1.7m				3
1.73m				3
1.8m				4
1.93m				4
2.0m				4
2.03m				4
2.4m				4

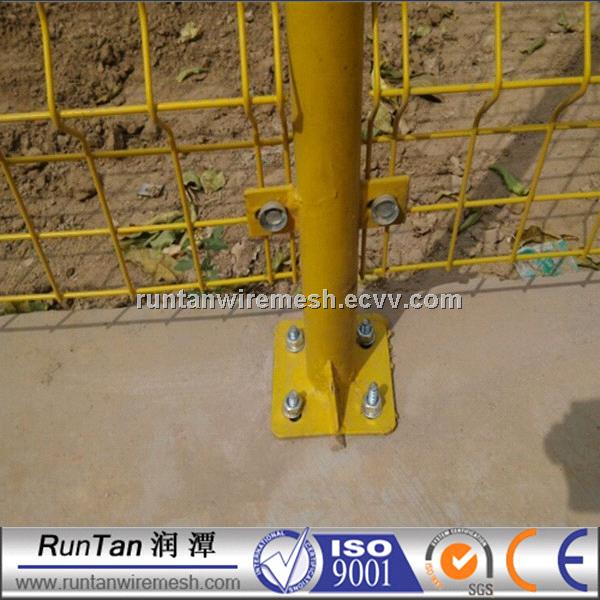

Fence post specifications:

specification of fence post
Post Style	Post Size	Post height
Rectangle Post	40601.2mm	1.63m 1.83m 2.1m 2.13m 2.2m 2.23m 2.4m 2.53m 2.6m 2.63m
	40601.5mm
	40602mm
Square Post	40401.2mm
	40401.5mm
	60602mm
	60602.5mm
	80802mm
	80802.5mm
Peach post	50701.2mm
Peach post	701001.2mm
Round post	38mm*1.2mm
	40*1.5mm
	42*1.5mm
	48*2mm
	60*2mm

ecaltvv

Advantages:

Excellent corrosion resistance, anti-aging and anti-aging property.
Sunshine resistance and weather-proof.
With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
Have four horizontal bending rebar therefore it will strengthen the fence network.
Not only has a beautiful outlook but also has a durable structure.
Can withstand outdoor exposure.
Easy and quick to transport and install.
Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
Bright, reflective colors stand out in day or night
Easy transportation, save time and labor cost.

Applications:

Mainly used in highway and railway bridge on both sides of the protection zone.
Airports, ports, terminals security.
Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
Guest Houses, hotels, supermarkets and entertainment protective.

Fence Panel Process:

Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading
packing of PVC coated curvy welded fence
ecaltvv
Panel packing:
Fence panel pancking
1.it has soft sponge at the bottom of the pallet to avoid the bottom fence panel to be damaged by metal pallet.
2.it has 4 metal corners to keep the pallet be more strong.
3.it has metal plate under the plastic bandage to avoid the bandage to pressure the fence panel.
4.it has wood plate on the top of pallet to keep the above pallet to de destroyed by the pallet.
post packing
the post is covered with plastic cap then packed with plastic film. Clips packed by set.
