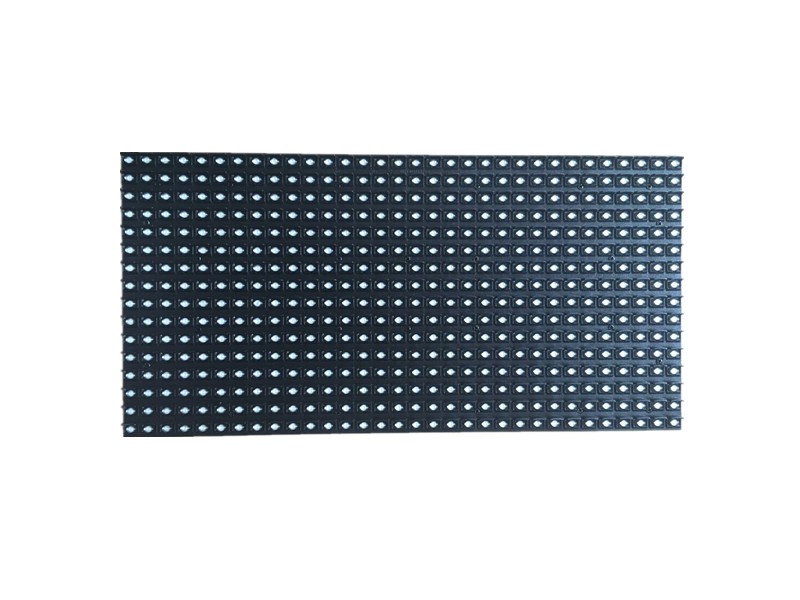

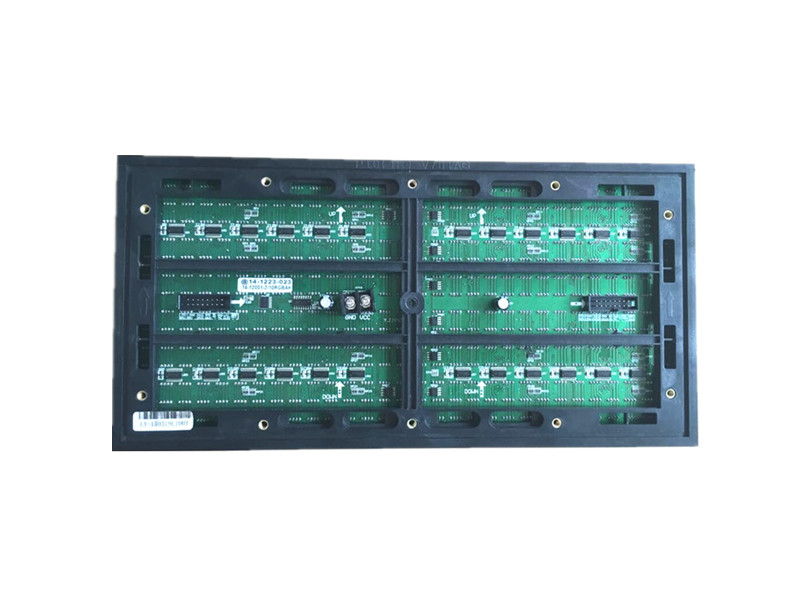

Outdoor HD P10 DIP 3-IN-1 Full Color LED Module, 10MM Pixel Pitch RGB LED Panel
| FOB Price: | 24.00 - 28.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Month |
| Shipping: | lead time :7 working days after deposit |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | box crate |
Quick Details
- Screen Dimension: 320*160mm
- Pixels: 10mm
- Display Function: Video
- Tube Chip Color: Full Color
- Usage: Outdoor
- Model Number: LY-ORGB10-DIP-3-in-1
- Brand Name: lysonled
- scan driver: 1/4 scan
- module resolution: 32*16 pixels
Specifications
Outdoor HD P10 DIP 3-IN-1 Full Color LED Module, 10MM Pixel Pitch RGB LED Panel
Quick Detail:
1) Stable quality:Epistar chipset;
2) High brightness:>7500 nits;
3) Scan driver:1/4 current;
4) Module size(L*W):320*160mm;
Specifications:
P10 Outdoor DIP 3-IN-1 Full Color LED Display Screen
|
Pixel configuration |
DIP 3-IN-1 |
|
|
LEDs configuration |
Red:wave length: 625~630nm;1100-1300mcd |
|
|
Pixel pitch(mm) |
10 |
|
|
Pixel density(dots/sqm) |
10000 |
|
|
Calibrated brightness(cd/sqm,nit) |
7500 nits(adjustable) |
|
|
Calibrated brightness proportion ratio |
R:G:B = 3:6:1 |
|
|
Contrast ratio |
4,500:1 |
|
|
Brightness adjustment(dimming) |
100 grade auto/manual-adjustment |
|
|
View angle(degree)(50% brightness) |
V60/H120 |
|
|
Color capability |
4.4 trillion |
|
|
Refresh rate(Hz) |
>1200 Hz |
|
|
Frame frequency(Hz) |
>60 Hz |
|
|
Interface port |
DVI interface(DVI connector) |
|
|
Input signal |
VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
|
|
Protection grade |
IP65 front side/IP43 backside |
|
|
LED Drive |
Constant-current |
|
|
Lifetime(hours)(50% brightness) |
100,000 hours |
|
|
Signal transmission direction |
Horizontal |
|
|
Operating temperature(Celsius degree) |
-30 ~ 65 |
|
|
Storage temperature(Celsius degree) |
-35 ~70 |
|
|
Operation humidity(RH) |
0-95% |
|
|
Operation humidity(RH) |
0-99% |
|
|
Servicing |
Front and back serving optional |
|
|
Control mode |
Synchronous & asynchronous available |
|
|
Communication options |
Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
|
|
Power |
120/240 V AC single phase(50-60Hz) |
|
|
Maximum power consumption(W/sqm) |
1000 |
|
|
Average power consumption(W/sqm) |
350 |
|
|
Screen operation mode(scan/static) |
1/4 |
|
|
Module configuration(Pixels quantities of the module) |
Length |
32 |
|
|
Height |
16 |
|
Module dimensions(mm) |
Length |
320 |
|
|
Height |
160 |
|
Cabinet configuration |
Length |
128 |
|
|
Height |
96 |
|
Cabinet dimensions(mm) |
Length |
1280 |
|
|
Height |
960 |
|
|
Width |
120 (+30~35mm module) |
|
Aspect Ratio(L:H) |
4:3 or 16:9 |
|
|
Packaging configuration |
1~4 standard cabinets in a packing case |
|
|
Packing material |
Wooden case/carton/flight case(optional) |
|
|
Packing weight(KG) |
net |
50KG/m2 |
|
|
gross |
55KG/m2 |
