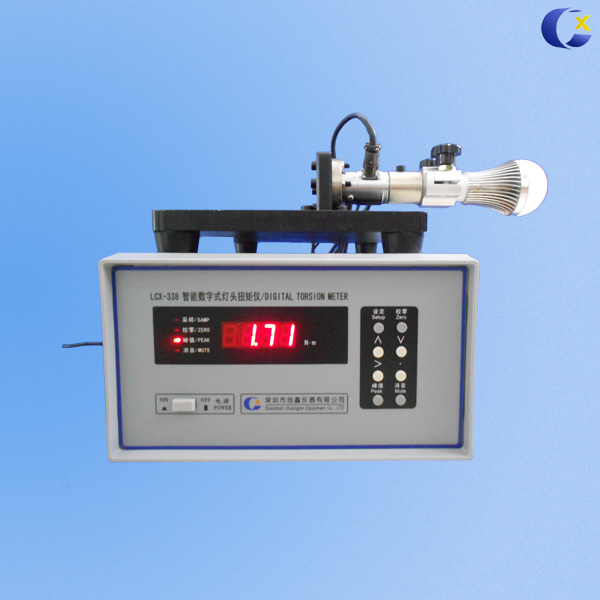

CX-338 LED Lamp Cap Impact Torque Tester Lamp Base Torque Tester

FOB Price:	1.00 - 700.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	within 15 days
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard packing wooden case

Quick Details

Usage: Torsion Tester
Power: Electronic
Model Number: CX-L338
Brand Name: cx
Items Name: lamp base torque tester
Range: 0~10Nm
Dimension: 333mx114mmx307mm
Weight: 6kg

Specifications

CX-338 led lamp cap impact torque tester lamp base torque tester

Key words: Torque Tester for Lamp Cap, Lamp Cap Torque,lamp cap torque Tester

Torsion Meter is a newly developed intelligent product with microprocessor built-in.

Characteristics:

1) It can measure the clockwise and anti-clockwise torque of lamp cap. And it can preset upper limit alarm. Auto save data after system shutting down.

2) Instrument has the function of zero point calibration. The zero point is very steady. Instrument uses 4 digits of number to display. So it is of high accuracy and high stability.

3) Double watchdogs designed inside to ensure the instrument high reliability and will not shut down under complicated environment.

4) Instrument is convenient to be used because of several clamps of lamp caps such as E27/E26, B22d, E14/E12, G13/G5 and so on.

5) Conform to Chinese and international standard.

Specification:

Range	0~10Nm
Accuracy	≤1%
Repeatability	≤0.5% FS
Linearity	≤0.5% FS
Lag	≤0.5% FS
Over loading	120% FS
Temperature compensate range	-10°C~60°C
Requirements for environment: Working temperature	25±5°C Relative humidity: ≤65%R.H Power: AC 220V±10V, 50Hz±1Hz
Permissions for environment	Working temperature: 0-40°C Relative humidity: ≤75%R.H Power: AC 220V±10%, 50/60Hz
Store condition	Temperature -20~50°C
Humidity	<75%R.H
Dimension	333mm×114mm×307mm
Weight	6kg
Power	15VA
