Home  >Products Catalog > roller bearing > TIMKEN SKF FBF 30315 Tapered Roller Bearing, Standard Tolerance, Pressed Steel Cage

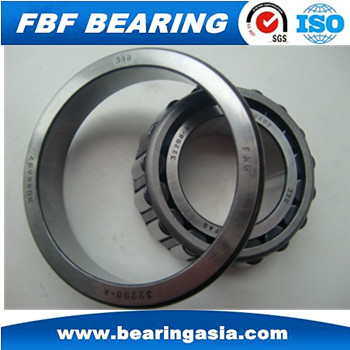

TIMKEN SKF FBF 30315 Tapered Roller Bearing, Standard Tolerance, Pressed Steel Cage SafeBuy Supplier Member

Supply Ability: 500,000 Piece(s) per Month
Shipping: 5days
Payment Terms: T/T, Western Union, MoneyGram, Safebuy, Other, Paypal
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanghai in China
Packaging Details: 1.industrial packing 2.wrap+carton+pallet 3.colour+carton+pallet 4.according to your requirements

Quick Details

  • Type: Roller
  • Structure: Taper
  • Number of Row: Single Row
  • Seals Type: open
  • Outside Diameter: 20-160 mm
  • Bore Size: 15-75 mm
  • Brand Name: TIMKEN SKF FBF
  • Precision Rating: P0 P6 P5 P4
  • Model Number: 30315
  • Bore Size: 75 mm
  • Outside Diameter: 160 mm
  • Precision Rating: P0 P6 P5 P4
  • Seals Type: Open
  • Number of Row: Single Row, single row
  • Weight: 3.57kg

Specifications

TIMKEN SKF FBF 30315 Tapered Roller Bearing,Standard Tolerance,Pressed Steel Cage

Tapered Roller ring included cup and cone.Cup is outer ring, Cone comprise rollers,cage,inner ring.and the inner ring with the rollers and cage can be fitted separately from the outer ring.the tapered roller bearings are generally used to support comnined load mainly consisting of radial load. the carrying capacity of axial load depends on the contact angle of raceway of outer rings. the bigger the contact angle is, the strongerr the capacity will be.Tapered roller bearings widely used in automotive, truck,rolling mill, mining, farming machine, construction machine,general machine,etc.

TIMKEN SKF FBF 30315 Tapered Roller BearingStandard TolerancePressed Steel Cage

Bearing models Dimensions Limited speed rating Load ratings Appro weight(kg)
ID(mm) OD(mm) Thickness
(mm)
Grease Oil Dynamic(N) Static(N)
30303 17 47 15.25 9200 12000 27400 24500 0.129
30304 20 52 16.25 8300 11000 31500 33200 0.165
30305 25 62 18.25 6900 8700 49200 48100 0.265
30306 30 72 20.75 5900 7500 61300 62600 0.387
30307 35 80 22.75 5200 6600 78400 82000 0.518
30308 40 90 25.25 4600 5800 95200 107500 0.746
30309 45 100 27.25 4100 5200 114000 129700 0.988
30310 50 110 29.25 3800 4800 122300 154500 1.28
30311 55 120 31.5 3400 4300 158700 184700 1.63
30312 60 130 33.5 3200 4000 177600 207000 2.003
30313 65 140 36 2900 3700 203700 239400 2.43
30314 70 150 38 2700 3500 228100 269600 3.006
30315 75 160 40 2600 3200 264800 318700 3.57
30316 80 170 42.5 2400 3000 297000 352400 4.27
30317 85 180 44.5 2300 2900 319400 388100 4.958
30318 90 190 46.5 2100 2700 358300 440800 5.79
30319 95 200 49.5 2000 2600 368500 477700 6.782
30320 100 215 51.5 1700 2400 350000 343000 8.22
30321 105 225 53.5 1500 1900 432000 562000 9.38
30322 110 240 54.5 1400 1800 472000 612000 11
30324 120 260 59.5 1500 7000 435000 410000 14.2
30326 130 280 63.75 1400 1800 563000 684000 17.4
30328 140 300 67.75 1300 1700 626C00 761000 27.2
30330 150 320 72 970 1400 616000 750000 25.5

30315 Tapered Roller Bearing Feature:

1) Suitable for the radial and axial loaded.

2) with low wear rate and long life service.

3) Can be used over a large temperature range.

4) Allows maintenance free and long life operation.

5) Suitable for dirty corrosion impact load and edge loading.

6) the base material provided a good shock absorbing capacity.

7) with low and smoothly coefficient of friction and without stick slip effects.

TIMKEN SKF FBF 30315 Tapered Roller BearingStandard TolerancePressed Steel Cage
TIMKEN SKF FBF 30315 Tapered Roller BearingStandard TolerancePressed Steel Cage

FBF Tapered Roller Bearing Advantage:



1. Material Advantage
All the material for TIANHE tapered roller bearing (including inner/outer rings, rollers, balls, cages) are from the best suppliers in China.

2. Processing Advantage
We can guarantee the time spent and quality of every processing. We can do three times tempering to stabilize the dimensions of the bearings, which is quite different from other bearings manufacturers.

3. Quality control advantage
All the tapered roller bearing parts are 100% strictly inspected before and during production including metallurgical testing, crack detection, roundness, hardness, roughness and geometric dimensions.



4. All of  tapered roller bearing meet the ISO international standard.


5. Appearance Technology Advantage
We can provide light chamfer, black chamfer, black chamfer of the rollers. the tapered roller bearing  are produced all according to customer's requirements.



 6. Service Advantage

Your satisfaction is our biggest goal. from quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer.
