Home  >Products Catalog > roller bearing > INA FBF Needle Roller Bearings AXK2542 Stainless Steel Bearing

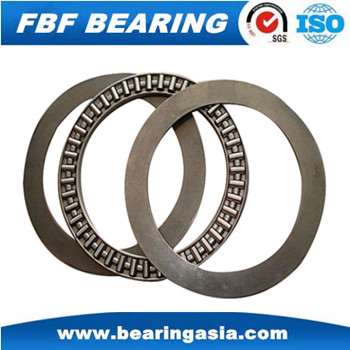

INA FBF Needle Roller Bearings AXK2542 Stainless Steel Bearing SafeBuy Supplier Member

FOB Reference Price: $ 1
Wholesale: ≥1 Piece(s)
Supply Ability: 500,000 Piece(s) per Month
Shipping: Within 3-7 workday after confirming your payment
Payment Terms: T/T, Western Union, MoneyGram, Safebuy, Other, Paypal
Update Time: 2018/11/12
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanghai in China
Packaging Details: 1. industrial package. 2. according to customer requirement.

Quick Details

  • Type: Needle
  • Number of Row: Single Row
  • Outside Diameter: 5-42 mm
  • Bore Size: 2-25 mm
  • Brand Name: FBF INA
  • Type: Needle roller bearing
  • Seals Type: open
  • Precision Rating: P0 P2 P4 P6
  • Model Number: AXK2542
  • Structure: needle roller
  • Bore Size: 25mm
  • Outside Diameter: 42mm
  • Precision Rating: P0 P2 P4 P6
  • Seal type: open
  • Number of Row: Single row
  • Bearing AXK2542 Structure: needle roller bearings AXK2542
  • AXK2542 bearing Material: Bearing steel/chome steel/stainless steel
  • Bearing Hardness: 59-63HRC

Specifications

Needle roller bearings AXK2542 stainless steel bearing

Thrust needle roller bearings and cylindrical roller thrust bearing raceway ring in a cage between the configuration with a needle (roller), a reliable guide cage and gripping a large number of rolling bodies, the same component in the rolling body only has its minor differences. Thrust cylindrical roller bearings or thrust bearings can only be supported, a direction axial load bearing, can be used as rigid good and occupies minimum space axial bearing configuration. Thrust needle roller bearings and cylindrical roller thrust bearings standard cage for stamping steel cage. for the cage with roller sets, works shall be able to be guided inside diameter or outside diameter structure.



- Smaller cross-section leading to greated rigidity,higher load-carrying capacity & lower inertia of the needle roller bearings help size and weight reductions in machinery.

- Though they are less wide,their load carrying capacity is high and is most suitable for applications where the load is high & the radial space is less.



- Needle roller bearings,which are designed to withstand oscillation can operate under severe conditions & interchange with sliding bearings.

INA FBF Needle Roller Bearings AXK2542 Stainless Steel Bearing

Part No. ID/mm OD/mm W/mm Weight/g Load Rating(KN) Limited
Speed
(r/min)
Cr/KN Cor/KN
AXK0414 4 14 2 0.7 4.4 8 21000
AXK0515 5 15 2 0.8 4.75 9.2 21000
AXK0619 6 19 2 1 6.8 15.5 19000
AXK0821 8 21 2 2 7.8 19.4 18000
AXK1024 10 24 2 3 9.2 25.5 17000
AXK1226 12 26 2 3 9.9 29 15000
AXK1528 15 28 2 4 11.3 36 13000
AXK1730 17 30 2 4 11.9 39.5 12000
AXK2035 20 35 2 5 13.1 46.5 10000
AXK2542 25 42 2 7 14.7 58 8500
AXK3047 30 47 2 8 16.3 70 7500
AXK3552 35 52 2 10 17.8 81 6500
AXK4060 40 60 3 16 28 114 6000
AXK4565 45 65 3 18 30 128 5000
AXK5070 50 70 3 20 32 143 4800
AXK5578 55 78 3 28 38 186 4300
AXK6085 60 85 3 33 44.5 234 4000
AXK6590 65 90 3 35 46.5 255 3700
AXK7095 70 95 4 60 54 255 3500
AXK75100 75 100 4 61 55 265 3300
AXK80105 80 105 4 63 56 280 3100
AXK85110 85 110 4 67 28 290 3000
AXK90120 90 120 4 86 73 405 2700
AXK100135 100 135 4 104 91 560 2500
AXK110145 110 145 4 122 97 620 2300
AXK120155 120 155 4 131 102 680 2100
AXK130170 130 170 5 205 133 840 1900
AXK140180 140 180 5 219 138 900 1800
AXK150190 150 190 5 232 143 960 1700
AXK160200 160 200 5 246 148 1020 1600

INA FBF Needle Roller Bearings AXK2542 Stainless Steel Bearing
