CE-automatic lamination machine Model YFMD
| Shipping: | 30% advance payment be paid by TT before shipment, balance payment be paid before shipment by TT. |
|---|---|
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard export package |
Quick Details
- Type: Laminating Machine
- Certification: CE
- Weight: Depends on machine size
- Dimension(L*W*H): Depends on machine size
- Model Number: YFMD
- Voltage: 380V/50HZ/3phase (the voltage can change with surcharge)
- Driven Type: Hydraulic
- Automatic Grade: Automatic
- Packaging Material: Wood,Plywood
- Packaging Type: Cartons,Film,Pallet
- Application: Machinery & Hardware
- Condition: New
- PLC control (HMI): automatic paper feeder
- automatic picker collector: automatic separating
- thermal oil circulation system: homogenized and stabilized laminating temperature
- compact structure: stable running
- high accuracy: convenient automatic operation and maintenance
- high speed: big pressure
Specifications
Ⅰ. Instruction:
YFMD Automatic Laminating Machine apply to the equipment complex of BOPP thermal lamination film and paper.

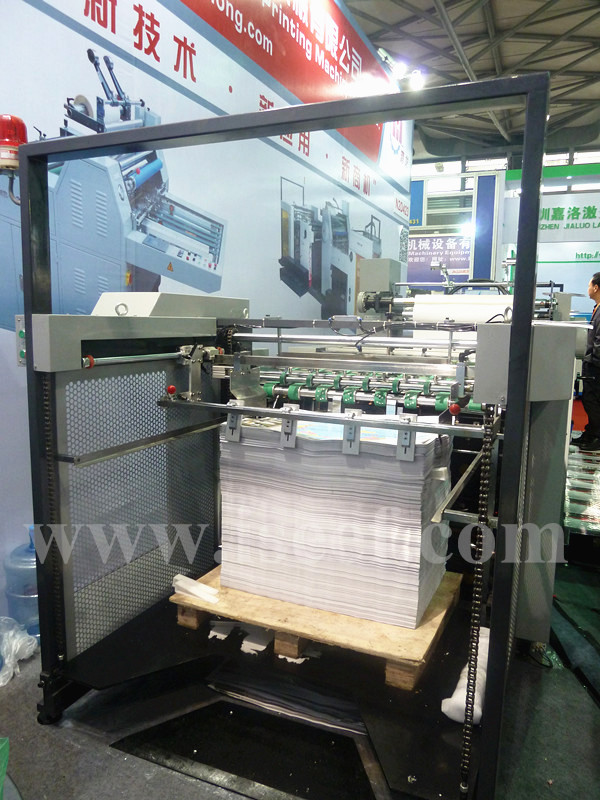

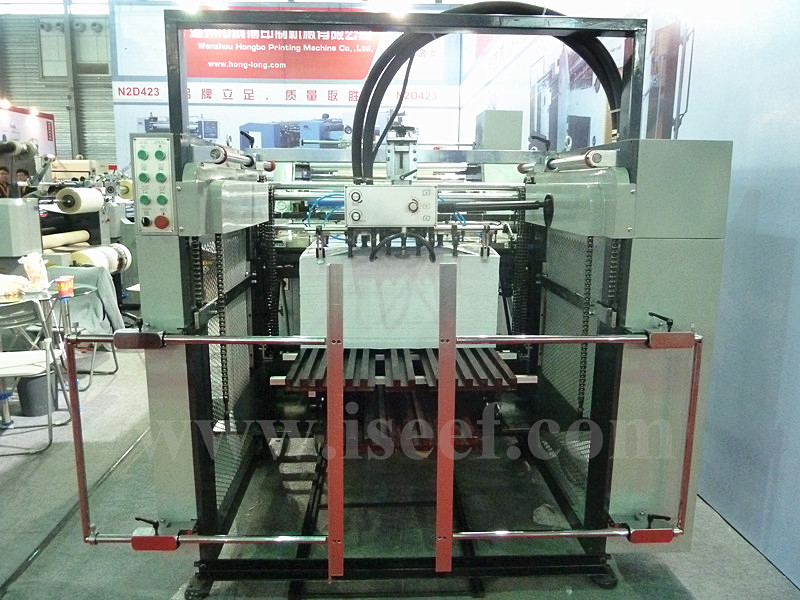

It is consisted of auto feeding system, positioning, laminating system, auto breaking and auto picker collector.
It is a new type of after-print laminating machine, The machine centralizes the features of compact structure,
high automation, humanized operation design.
Ⅱ. Application:
The machine widely used in textbooks , books , calendars , cards, product samples, packaging
Box, etc. It is an excellent choice for printing and packaging factory, professional after-print laminating factory and so on.
Which can improve printing quality and decrease the technical cost.
Ⅲ. Process:

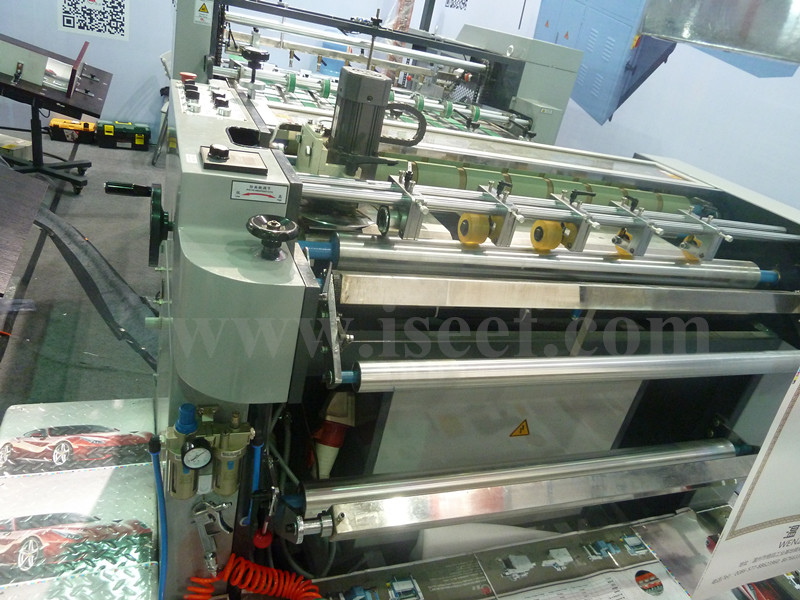

BOPP or non-glue plastic film convey from release air shaft , through the convey roller and curved roller, in the meanwhile

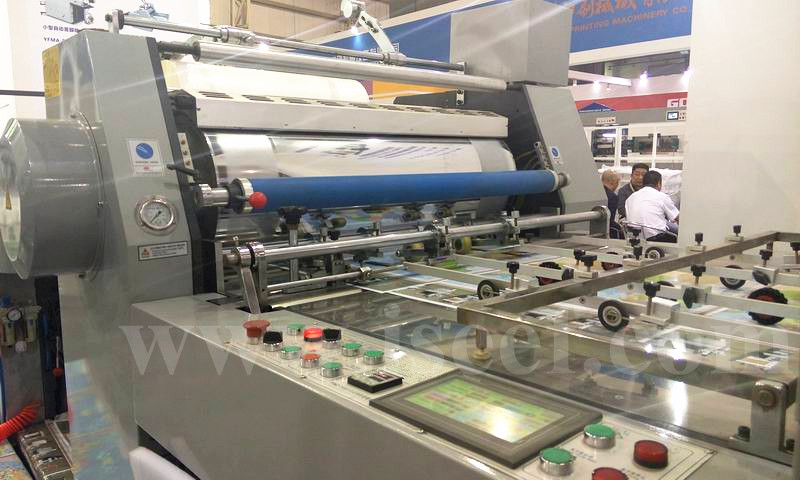

automatic conveyor automatically sent paper to laminating machine host. It adopts heating roller and pressure way to laminating bopp film and non-glue film on paper.
Heating roll adopts oil circulation heating system to homogenize and stabilize laminating temperature. The laminated goods will be auto breaking and then to automatic picker collector to finish collecting.
Ⅳ. PLC control system:
The electric and pneumatic devices are controlled by programmable control system(PLC), main components adopts international brands, need one person to operate.
User only need to input processing paper size on the text screen, then can achieve film laminating and paper slitting.
The equipment is very suitable for large size laminating companies .
Ⅴ. Main device:
-Auto feeding

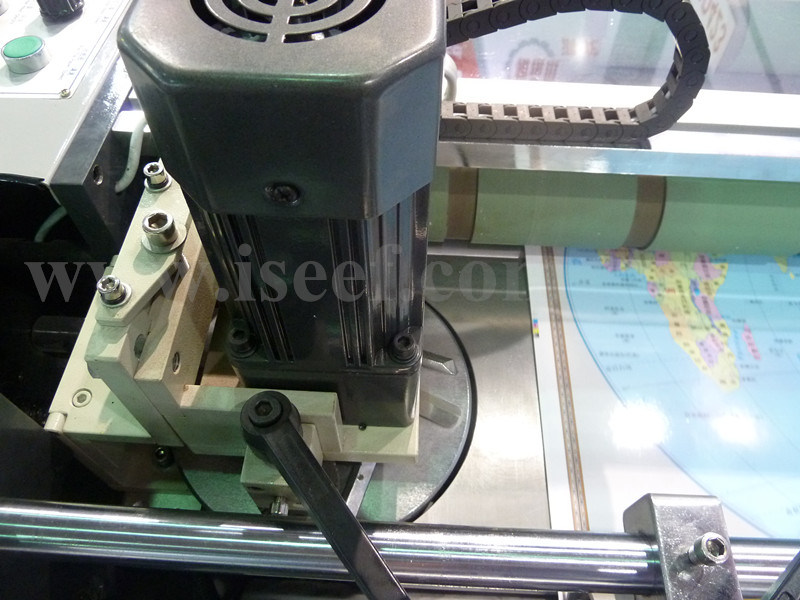

-Auto breaking
-Auto picker collector
-PLC control system
-Anti curved device
-Circulation oil heating system
Ⅵ. MAIN PARAMETER
|
Model |
YFMD-1100 |
YFMD-1200 |
YFMD-1450 |
|
Max. Paper Size(W*L) |
1080*940mm |
1080*1200mm |
1092*1450mm |
|
Min. Paper Size(W*L) |
300*300mm |
300*300mm |
400*500mm |
|
Machine speed |
0-50m/min |
0-50m/min |
0-50m/min |
|
Paper gsm |
120-500gsm |
120-500gsm |
120-500gsm |
|
Machine temperature |
80-130℃ |
80-130℃ |
80-130℃ |
|
Laminating roller diameter |
mm |
Φ400mm |
Φ400mm |
|
Machine power |
23kw |
26kw |
26kw |
|
Weight |
4000kgs |
4800kgs |
5500kgs |
|
Machine Dimension w/ auto picker collector (mm) |
7100*2000*1900 |
7300*2000*1900 |
8000*2000*1900 |
