Home  >Products Catalog > Packing box making machine series > CE-lamination machine Model YFMB

CE-lamination machine Model YFMB SafeBuy Supplier Member

Shipping: 30% advance payment be paid by TT, balance paymen shall be paid before shipment
Payment Terms: L/C, T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: Standard export package

Quick Details

  • Type: Laminating Machine
  • Certification: CE
  • Weight: depends on machine size
  • Dimension(L*W*H): depends on machine size
  • Model Number: Model YFMB
  • Power: 11-16kw
  • Voltage: 380V/50HZ/3 PHASE
  • Driven Type: Hydraulic
  • Automatic Grade: Semi-Automatic
  • Packaging Material: Metal,Wood,PLYWOOD
  • Application: Machinery & Hardware
  • Condition: New
  • PLC control (HMI): thermal oil circulation system
  • auto pneumatic separating device: manual paper feeding

Specifications

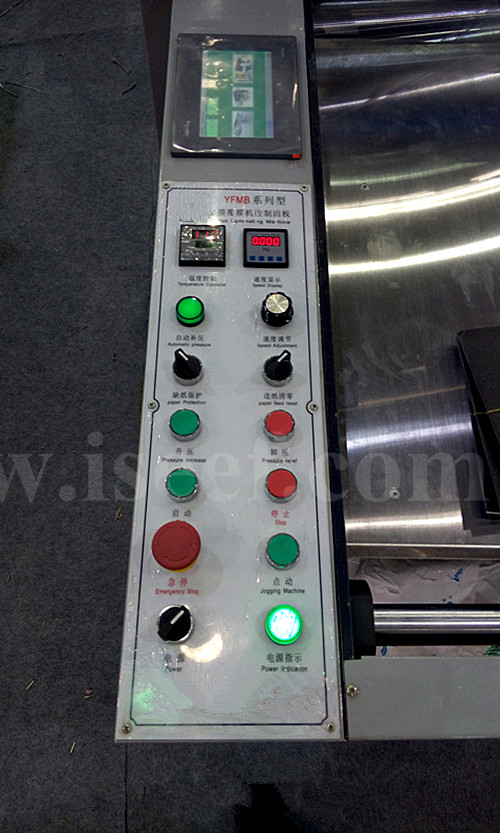

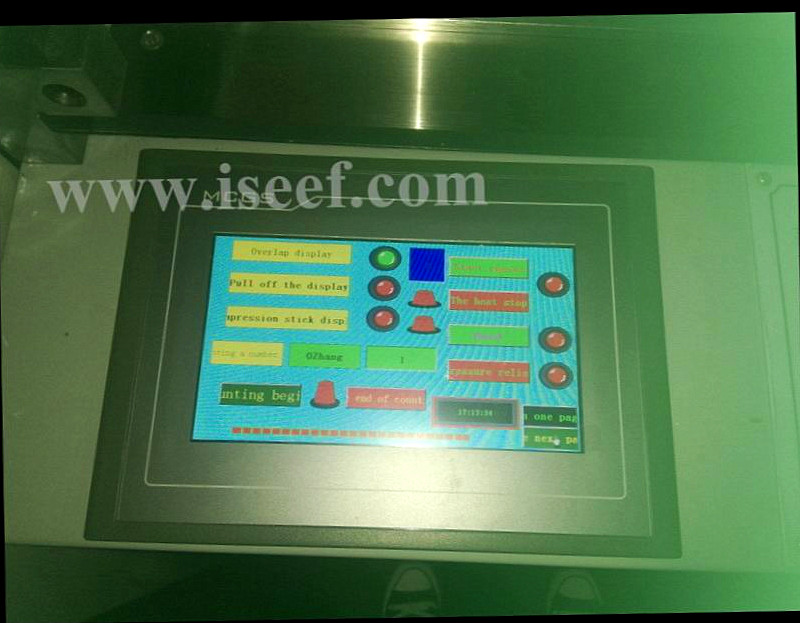

This machine is a kind of dual-function product which is for both pre-glued and glueless film. It is of compact structure, easy operation and high degree of automatization. All the main components adopt the international noted brands. The electrical and pneumatic devices are controlled by PLC system, and can be operated by only one person. The operator can realize both laminating and separating processes at the same time as long as the size of workable paper is input on the text screen.


Model

YFMB-520

YFMB-720

YFMB-920

YFMB-1100

Max Laminating Width

500mm

680mm

880mm

1040mm

Paper gsm

105-450gsm

105-450gsm

105-450gsm

105-450gsm

Laminating Speed

0-30m/min

0-30m/min

0-30m/min

0-30m/min

  Laminating Temperature

≤130

≤130

≤130

≤130

Gross Power

11kw

13kw

15kw

16kw

Total Weight

800kg

900kg

1000kg

1100kg

Dimensions

(mm)

2200x1300x1300

2200x1500x1300

2200x1700x1300

2200x1900x1300
