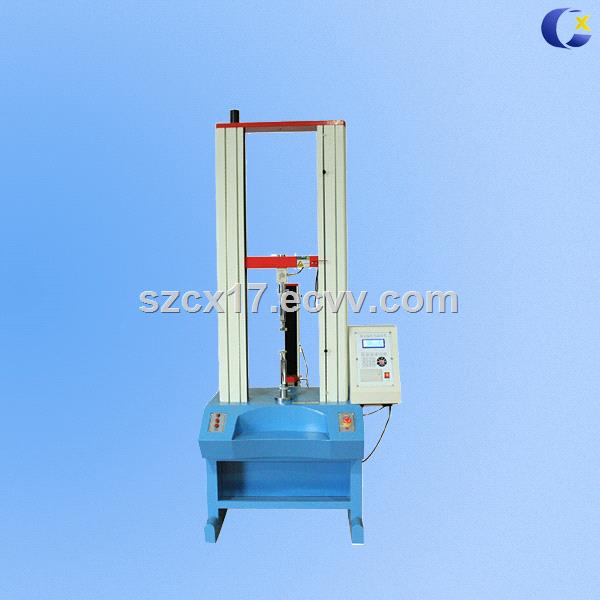

1T Digital electronic tensile test machine
| FOB Price: | 1.00 - 3,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | within 15 days |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard packing wooden case |
Quick Details
- Usage: Strength Testing Machine
- Power: Electronic
- Model Number: CX-JY104
- Brand Name: CX
- Items Name: tensile test machine
- Capacity: 1t
- Warranty: 1 year
- Display: LCD electronic display
- Motor Function: 3.7KW
- Test Speed: 50-200mm/min
- Dimension: 7000x7500x2100mm
Specifications
1T Digital electronic tensile test machine
The Tensile Testing Machine is widely applied to test the tensile, tear, peel, and bend of all kinds of materials, such as metal, cable and etc, it's used to test the tensile, tear, peel, compressive strength and bending of the material. It conforms to the standard of GB, ISO7500/1, JJG475-88, ASTME4, DIN5122, JISB7721/B7733, EN1002-2, BS1610, and CNS9471/9470.
Parameters:
|
Load Cell |
0.5 high precision power sensor |
|
Capacity |
1T |
|
Accuracy |
Class 1 |
|
Force Testing Range |
0.4%~100%FS |
|
Load Accuracy |
±1% |
|
Load Resolution |
1/200000 |
|
Control System |
Frequency Converter |
|
Drive Method |
AC Frequency Conversion Motor |
|
Motor Function |
3.7KW |
|
Test Speed |
50-200mm/min |
|
Speed Accuracy |
±1% of Value |
|
Test Stroke (not include the clamp) |
500mm |
|
Dimension |
7000x7500x2100mm |
|
Weight |
150kg |
|
Power Supply |
AC 220V 50Hz |
