GRP Fiber Reinforced Plastics cable tray applications

FOB Price:	0.29 - 1.98 USD/Meter
Supply Ability:	3,000 Meter per Day
Shipping:	by sea, by air
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	carton inner, then plastic film and wooden pallets packing for container loading

Quick Details

Dimensions: 130mmx120mm 5m x 3.1mm thickness
Technique: extrusion pulling
Surface Treatment: extrusion
Application: for cable holding
Model Number: C-03006
Brand Name: WJ
Mechanical strength high: epoxy resin
rigidity of the metal bridge and toughness of the glass steel bridge: use in highly corrosive environment
corrosion resistance: large span
anti aging performance is strong: heavy load conditions
handsome in appearance: red
installation is convenient: green
service life is long: yellow

Specifications

Product Description

Features:

High strength yet light weight:	Helps save on transportation
Corrosion resistant:	Won't rot, rust or corrode
Fire-retardant and nonconductive:	Helps create a safer environment
Dimensionally stable:	Won't shrink, swell, warp or bow
Virtually maintenance-free:	Durable and weather-resistant for a longer life cycle
Easy to fabricate and install:	Can be cut, drilled and assembled with standard tools
Non-leaching:	Does not require environmentally hazardous preservatives

Testing results for physical properties:

(No.)	Testing items	Unit	Testing results	Testing standard
1	Density	g/cm³	1.85-1.9	ASTM D792
2	Water absorption	%	0.57	ASTM D570
3	Flexural strength	MPa	302	ASTM D790
4	Flexural modulus	GPa	18.6	ASTM D790
5	Tensile strength	MPa	210	ASTM D638
6	Tensile modulus	GPa	22	ASTM D638
7	Flame retardant rating		V0/V1	UL94
8	Dielectric breakdown voltage	KV	14.98	ASTM D149-09

Notes: The above testing results are based on ordinary materials, if any special requirements, feel free to contact with us.

What's the fiberglass cable tray?

Fiberglass (FRP/GRP) cable tray has long been the industry standard for high quality fiberglass cable tray. Made from the highest quality pultruded materials, Fiberglass cable tray is extremely durable and resistant to chemical attack. Our fiberglass cable tray has been used in the most corrosive and structurally demanding environments across the globe, including offshore platforms, chemical plants, oil and metal refineries, and water treatment plants.

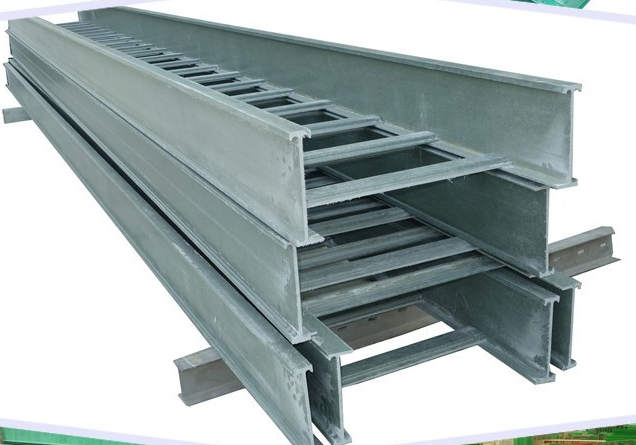

In order to support all instrumentation and cable runs, we offer two types of cable tray_ladder type cable tray and channel type cable tray.

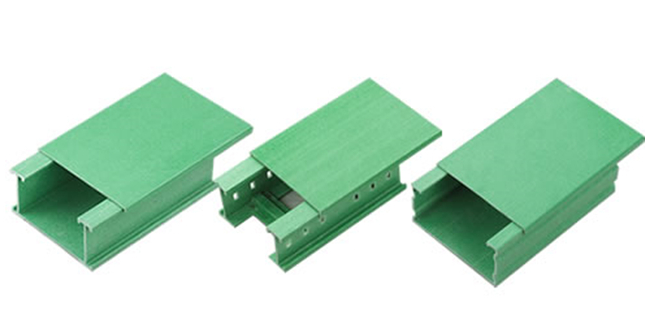

Channel type cable tray is available in wide range of widths, and ideal for pneumatic tubing and low-voltage or communications cables.

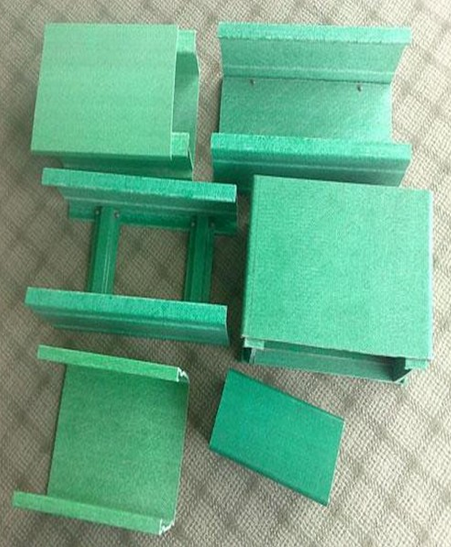

Both tray types are available in multiple resin systems, and offered as a complete system including fittings, supports, and accessories.

Fiberglass Cable Tray Uses

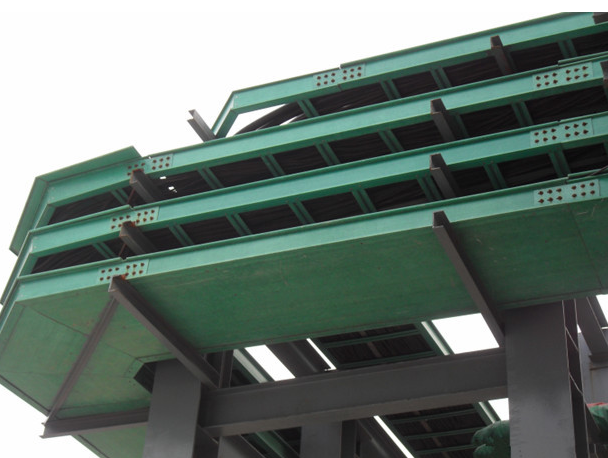

Support electrical cable in highly corrosive environments

Designed for lighter loads

Individual wiring and pneumatic tubing

Retrofitting rusting applications

Low-voltage or communications cables

Fiber-optic cables

Hydraulic or pneumatic tubing

Why do you choose the fiberglass cable tray?

Features:

Solid bottom,

perforated (ventilated), or slotted construction

Corrosion resistant

High strength-to-weight ratio

High durability

Lightweight

Fire retardant

Ease of installation

FRP Cable Tray Specification:

width(mm)	H(mm)	TH(mm)
100mm	50mm 100mm	3mm
150mm	100mm 150mm	3.5mm
200mm	100mm 150mm 200mm	4mm
300mm	100mm 150mm 200mm	4.5mm
400mm	100mm 150mm 200mm	4.5mm 5mm 5.5mm
500mm	100mm 150mm 200mm	5.5mm 6mm 6.5mm
600mm	100mm 150mm 200mm	6.5mm 7mm 7.5mm
800mm	100mm 150mm 200mm	7mm 7.5mm 8mm

Product name:	Fiberglass Cable Tray
Place of Origin:	Hebei, China
Brand Name:	WJ
Dimension(mm):	Customized dimension & colors are both available.
Raw Materials:	Reinforcement material: Fiberglass, glass mat, continuous strand mat, surfacing mat, needled mat. Basis material: Unsaturated polyester resin, epoxy resin, vinylester resin
Color:	Grey, Blue, Yellow, Red, other customized colors
Density:	1.5-2.0 g/cm3
MOQ:	1*20ft
Price:	EXW, FOB, CNF, CIF
Port:	Tianjin Port

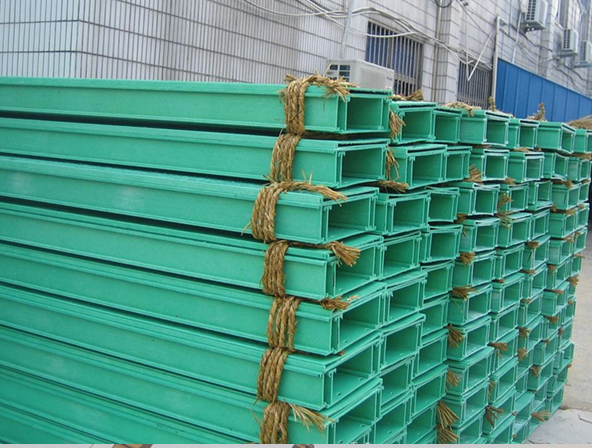

Packaging Details:	Plywood pallet with plastic wrapped for packing
Delivery Time:	About 5-10 days after deposit received
Payment Terms:	TT,L/C, Western Union
Supply Ability:	8000m/week
