glasfirber reinforced plastic water tanks 2016

Specifications

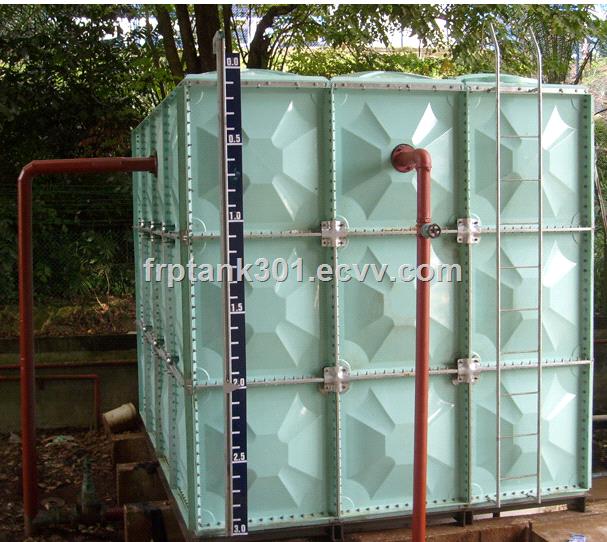

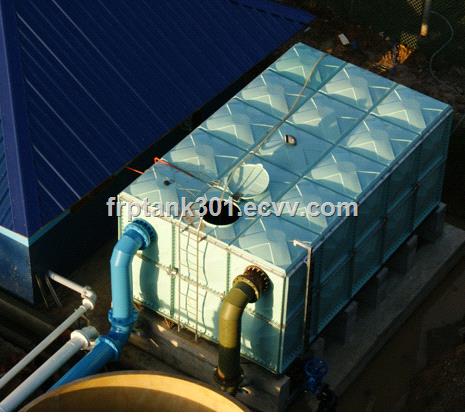

SMC FRP composite water tanks
    Currently, combined SMC fiber reinforced plastic composite tank is a new type of water tank at the international. It by the overall quality of SMC FRP Tank board assembly.

    SMC mould veneer use of food - grade resin production of molded sheet.By high-temperature, high pressure, mechanical manufacturing processes, manufacturing method of a mechanical pressing. Use the method of mechanical pressing. Increase the Intensity of earthquake resistance and shock,overcome the defect of hand lay-up uneven strength. And increase the bearing capacity of water tank, At the same time around the plate no 45degrees and 90degrees of flange.
No use corner connectors whenassembled.More flexible.

FRP Panel Tanks represents a new dimension of toxicity free water storage system. The advance design of with the used of top grade materials with strict quality controls and manufactured by highly trained workforce ensured that the products meet the highest quality of standards.

WHY CHOOSE ACEON FRP PANEL TANKS?

FRP Panel Type Water Storage tanks also known as FRP tanks in some parts of the world are manufactured from Vacuum Forming Process using matched mold method. These method will allowed us to use the material which we called "ISOPHATALIC NPG GELCOAT"

The "GELCOAT" is able to protect  FRP Panel against the glass resin interface, ageing, the effect of moisture and temperature induced stress fatigue so that no fibre prominence occurs.
The "GELCOAT" is one of the material approved by Lloyd Register for marine fabrication and it is also widely used in the fabrication of sanitary items, leisure boats and craft etc.

The Vacuum Forming process with the color which also can allowed ACEON FRP Panel to produce with the color which can attached to the Fibreglass panel surface and fulfill the color of customer requirement.

1. Produced to comply with the requirements of accelerated WEATHERING TEST.
2. Truly hygienic even for many years after standard warranty period
3. Excellent surface finishing on both side of the panel
4. Resistance to algae and microbiological growth.
5. No dirt accumulation as no any pinholes detected on the panel surface.
6. Only approved sealing materials are used to ensure a leakage and maintenance free water tank.
7. Excellent FRP panel strength as glass content is above 40%. No filler (Ca Co3) is mixed. Only "E" type of glass fiber is used.
8. Additional internal and external tank bracing and reinforcement is provided to prevent leaking and bursting especially for tank height at 3 & 4 meter height.
9. ACEON panel tank was designated to take up in excess of 6 times the working safety factors.
10. Warranty product up to 10 years.


FRP PANEL MATERIAL CHARACTERISTIC

• Specific Gravity: 1.8
• Glass content: more than 40%
• Tensile strength: 1,020kgf/cm (9.996KN/cm)
• Young's modulus: 1.40 x 10 kgf/cm (13.7Gpa)
• Flexural strength: 1,650 kgf/cm (16.17 KN/cm)
• Impact strength: 52.5 kgf/cm (0.515KN/cm)
• Compressive strength: 3010 kgf/cm (29.50 KN/cm)
• Shear strength: 960kgf/cm (9.41KN/cm)
• Thermal expansion: 2.16x10/ C
• Thermal conductivity: 0.15 Kcal/m hr (630 J/ m hr C)
• Coef of overall heat transmission: 5.0 Kcal/m hr (21 KJ/m hr C)
• Water absorption: Less than 0.2%
• Cavity: Less than 2%
• Light transmittance: 0.00%

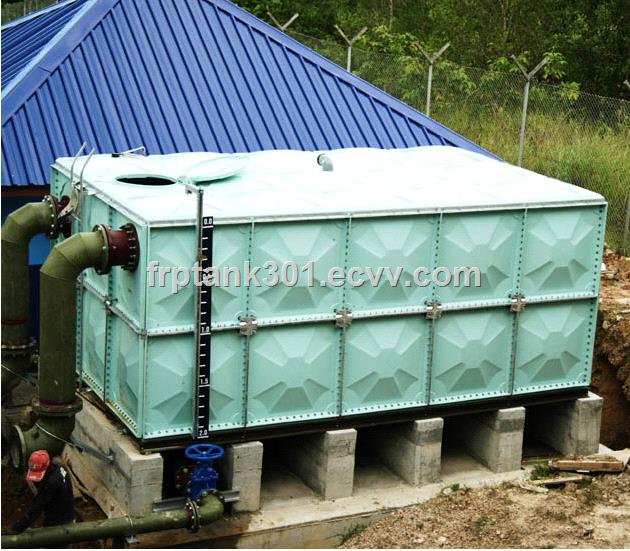

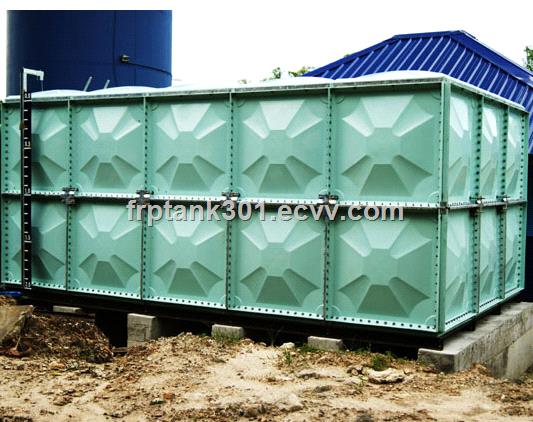

Steel Footing

Water tank to be installed on a horizontal flat surface beam structure, designed to carry its weight.
The Water tank may be supported on a steel footing from a certain size and up, to ensure leveling.
If the length of tank is longer than 10M, the representative may be contacted for special design consideration.

Steel framework may be formed from either channel or H-beam, in a suitable steel specification, to ensure that each panel of the base of the tank is supported. Steel section, dimension and sizes depend on the water tank height and surface.

For any size and height of tanks, pre-welded steel footing Modules are available upon request and are designed to be loaded in container.

At site, those modules will require simple bolting together in order to form the entire steel base frame.

Steel Tower

Our GRP Panel type water tank can easily be installed on a Steel tower which consists of Truss or lattice type construction in a standard module, prewelded and perforated, and designed to be loaded in container.

At site, those modules will require simple bolting together, to form the required steel tower.
