Hebei Weijia FRP Co., Ltd.
China Manufacturer with main products: FRP Pipe, FRP Tank, FRP Vessel, FRP Grating, Cable Tray, Molding Grids, Pull Extrusion Profile, Packed Tower |
10th
FRP818 FRP water tank 200 * 435mm(Dia*height)
| FOB Price: | 100.00 - 1,000.00 USD/Meter |
|---|---|
| Supply Ability: | 3,000 Meter per Week |
| Shipping: | by sea ,delivery time about 30days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Packed with the double deck carton 3 Using the pallet for the flange tanks |
Quick Details
- Dimensions: DN25~4000mm
- Technique: FRP Winding
- Surface Treatment: smooth
- Application: All feed water and waste water treatment application
- Model Number: C-75
- Brand Name: WJ
- strong strength: high pressure
Specifications
FRP TANKS FOR water treatment:
Shell Layer:Fiber Glass
Inner Shell Material:PE or FRP
Max. test pressure:150psi
Max. working pressure:100psi
Temperature Range:1-49°c
High pressure resistant and corrosion resistant capacity
Color: Natural or Blue or Gray

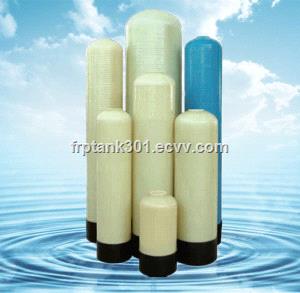

Water Treatment Vessel (FRP Tank)
frp tanks are made of high quality composite materials HDPE liner, with blow molding technique,it provides continuous seamless inner liner shell. Epoxy resin system and FRP filament winding outer shell, which reinforces the liner and provides strong strength for high pressure application.
Max. Operating Pressure: 150psi
Max Operating Temperature : 49
Color: Natural or Blue or Gray
FRP tank water softener uses advanced wound winding process from the system, and there is integrally molded thermoplastic liner, compared with the same specifications of the steel container, corrosion resistant, lightweight, high strength, beautiful appearance, easy transportation and installation, seepage good performance, long life and other characteristics.
Factory pressure test 0.9Mpa, the working pressure ≤0.6 <MPa working temperature ≤49 ℃.
Maximum vacuum: 127mmHg (5 "Hg
1. Many dimension for choice
2. corrosion-resistant
3. Water treatment use
4. better price
FRP818 FRP water tank
Size: 200 * 435mm(Dia*height)
Max operation pressure: 150psi
Top open: 2.5" female thread
Feature:
- Our water treatment tank with FRP liner offer a solution for the applications requiring corrosion-resistant and low price.
- The tank apply to treatment and storage of household,commercial and industrial water.
- Due to the unique features of FRP, the tank have the perfect corrosion-resistant performance.
- Multiple opening types, sizes and inner liner materials offer many choices for clients to meet requirements sufficiently.
- Diameter up to 3 meters and total volume up 19 cubic meters.
- our engineer can design and supply all the special vessels just according to your sketch or description.
Applications:
1. Industrial Water Treatment with multi-layer media
2. Water Softening Application
3. Centralized Filtration System for high rise residential and commercial buildings such as condominiums, high rise office building, hotels and resorts.
4. Aquaculture, fish farming and hatchery filtration system
5. Many other water filtration and treatment applications.
