Hebei Weijia FRP Co., Ltd.
China Manufacturer with main products: FRP Pipe, FRP Tank, FRP Vessel, FRP Grating, Cable Tray, Molding Grids, Pull Extrusion Profile, Packed Tower |
10th
frp Disk-Tube Reverse Osmosis(DTRO) Membrane MANUFACTURER
| FOB Price: | 100.00 - 1,000.00 USD/Meter |
|---|---|
| Supply Ability: | 3,000 Meter per Week |
| Shipping: | by sea ,delivery time about 30days |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Packed with the double deck carton 3 Using the pallet for the flange tanks |
Quick Details
- Dimensions: DN25~4000mm
- Technique: FRP Winding
- Surface Treatment: smooth
- Application: Water supply and waste water treatment industry, light industry, chemi
- Model Number: C-103
- Brand Name: WJ
- strong strength: high pressure
- no delamination with body: corrosion resistance
- high strength: light weight
- innoxious: healthy to achieve the standard of drinking water.
Specifications

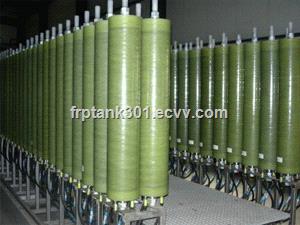

FRP membrane housing division is one of divisions of Hengshui Huiyoufang FRP Co., Ltd, dedicated to the development and production of FRP pressure vessel(membrane housing) that used for membrane separation technology for water treatment.
(2)SeaWell series FRP membrane housing produced by Huiyoufang is widely used for a variety of standard membrane element, such as Hydranautics, DOW, Filmtec, Desal, Koch, CSM, TORAY and so on.
(3)The working pressure is 75PSI-1000PSI; diameter is 2.5'', 4'' and 8''; Membranes of element inside is 1-7. Currently, it has been widely used in electronics, electricity, metallurgy, chemical, pharmaceutical, industrial wastewater treatment, desalination and brackish water desalination and other fields. And customized products and OEM services are also available.
2. Explanation of codes of SeaWell Membrane Housing
3. Specifications
List of codes for 8'' pressure vessel
|
|
ITEM NO. |
PSI(MPa) |
Connection |
Membrane Side |
Number of Elements |
|
8'' Pressure Vessel |
S80S150 |
150(1.0) |
SIDE |
8040 |
1-7 |
|
S80S300 |
300(2.1) |
||||
|
S80S450 |
450(3.1) |
||||
|
S80S600 |
600(4.1) |
||||
|
S80S1000 |
1000(6.9) |
||||
|
8'' Pressure Vessel |
S80E150 |
150(1.0) |
END |
8040 |
1-7 |
|
S80E300 |
300(2.1) |
||||
|
S80E450 |
450(3.1) |
||||
|
S80E600 |
600(4.1) |
||||
|
S80E1000 |
1000(6.9) |
List of codes for 4'' pressure vessel
|
|
ITEM NO. |
PSI(MPa) |
Connection |
Membrane Size |
Number of Elements |
|
4'' Pressure Vessel |
S40S150 |
150(1.0) |
SIDE |
4040 |
1-4 |
|
S40S300 |
300(2.1) |
||||
|
S40S450 |
450(3.1) |
||||
|
S40S600 |
600(4.1) |
||||
|
S40S1000 |
1000(6.9) |
||||
|
4'' Pressure Vessel |
S40E150 |
150(1.0) |
END |
4040 |
1-4 |
|
S40E300 |
300(2.1) |
||||
|
S40E450 |
450(3.1) |
||||
|
S40E600 |
600(4.1) |
||||
|
S40E1000 |
1000(6.9) |
4. Quality assurance
Burst test with 6 times of its design pressure
100,000 times fatigue test
100% outgoing products tested by 1.2 times of hydraulic test.
5. Advantages
(1) Membrane housing
Adopt imported material to improve the anti-wearable property.
Adopt unique processing technique to make the inside of the products more smooth.
Multi-ports are available according to customer's requirements for the easy installation.
Adopt upscale automobile baking varnish craft to ensure the high brightness and painting film adhering capacity of the products.
Outstanding corrosion resistance and high temperature resistance, fatigue resistance,anti-aging property, anti-oxidation property.
(2) Spare parts
End plate adopt aviation surface treatment technology,effectively improving the intensity of end plate and corrosion resistance of surface
Seal kit adopt special structure and technique, effectively enhancing the leak tightness, anti-aging and convenience.
End plate is made of aluminum alloy to enhance the intensity and improve the feature of resist deformation.
Seal kit adopt environmental material to assure the leak tightness and high water quality, meanwhile to improve its anti-aging capacity.
Feed/outlet port adopt 316L stainless steel with high quality to assure outstanding corrosion resisting property and convenient maintenance.
