X Ray Pipeline Crawler MODEL TABLE

FOB Price:	1.00 - 10,000.00 USD/Set
Supply Ability:	30 Set(s) per Month
Shipping:	30 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Liaoning in China
Packaging Details:	wooden case

Quick Details

Usage: Universal Testing Machine
Power: Electronic
Model Number: YG-100 series
Brand Name: DDYG
Operating rang: 159-1400mm

Specifications

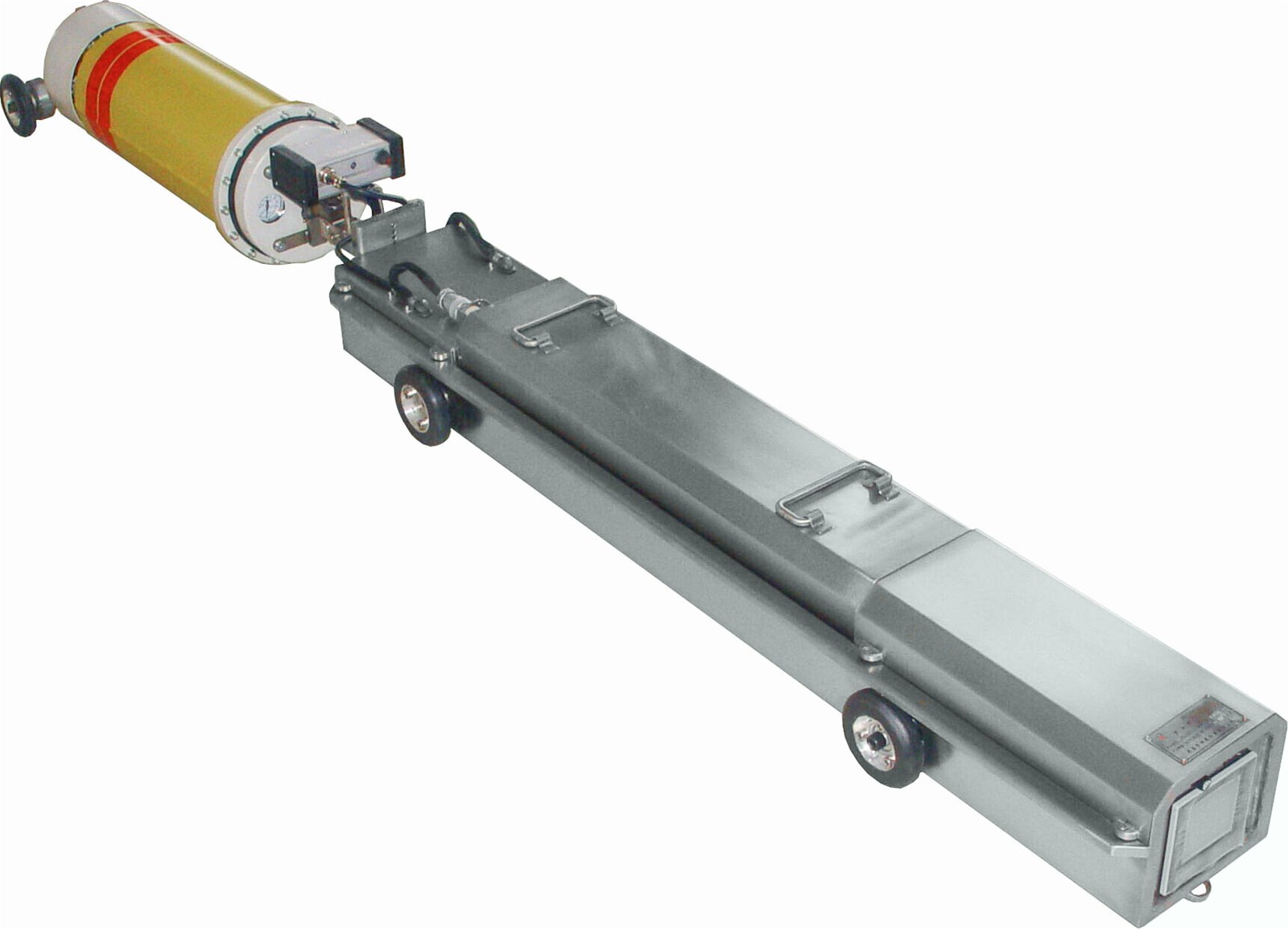

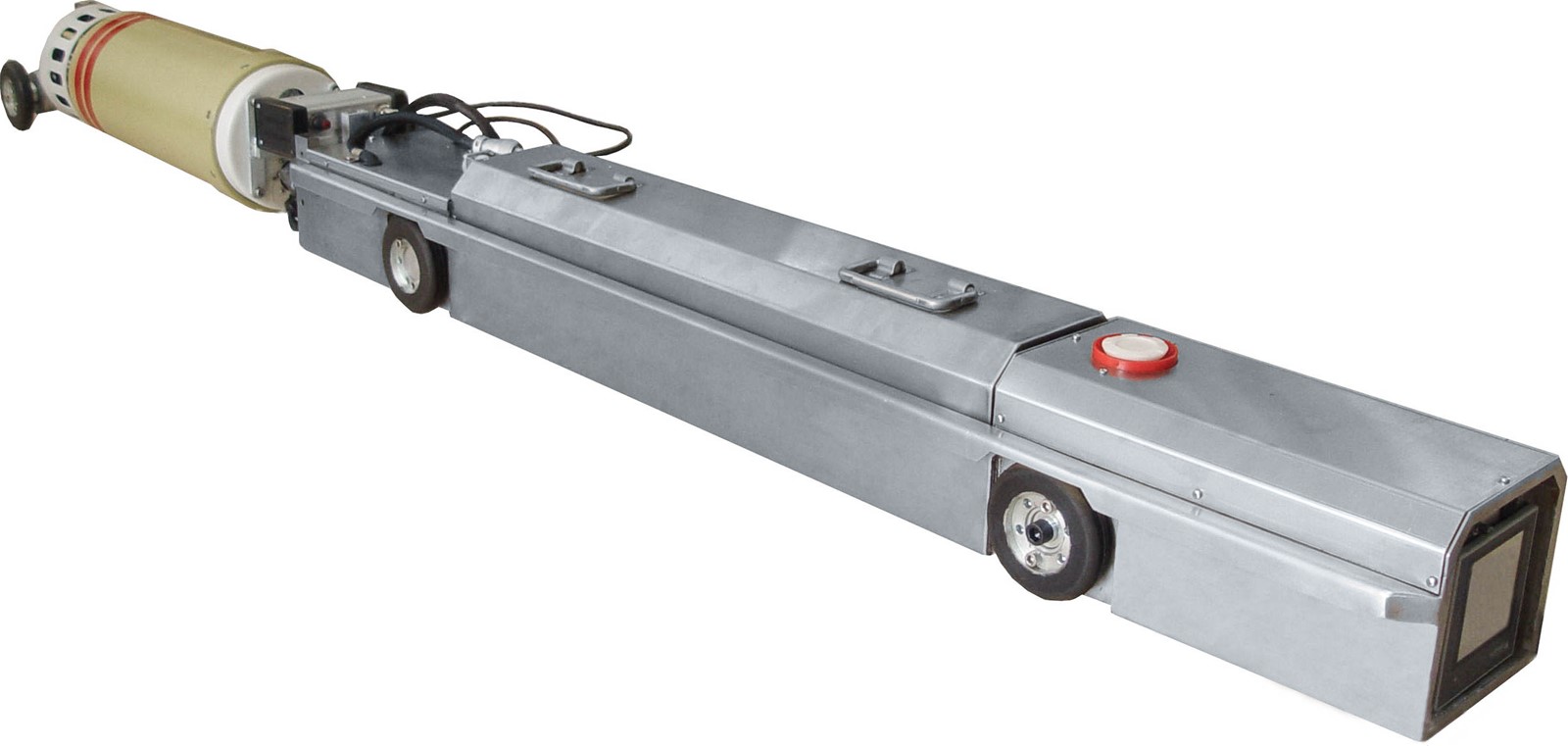

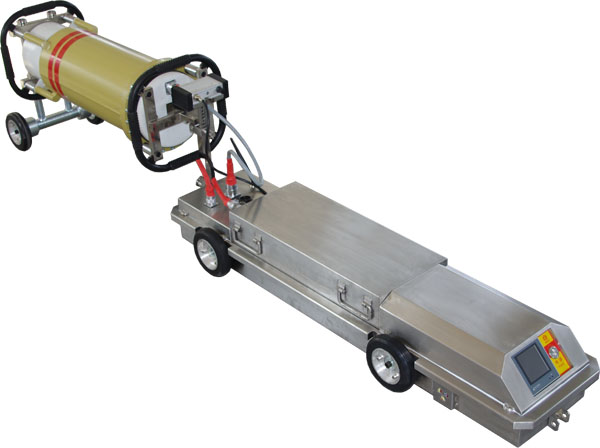

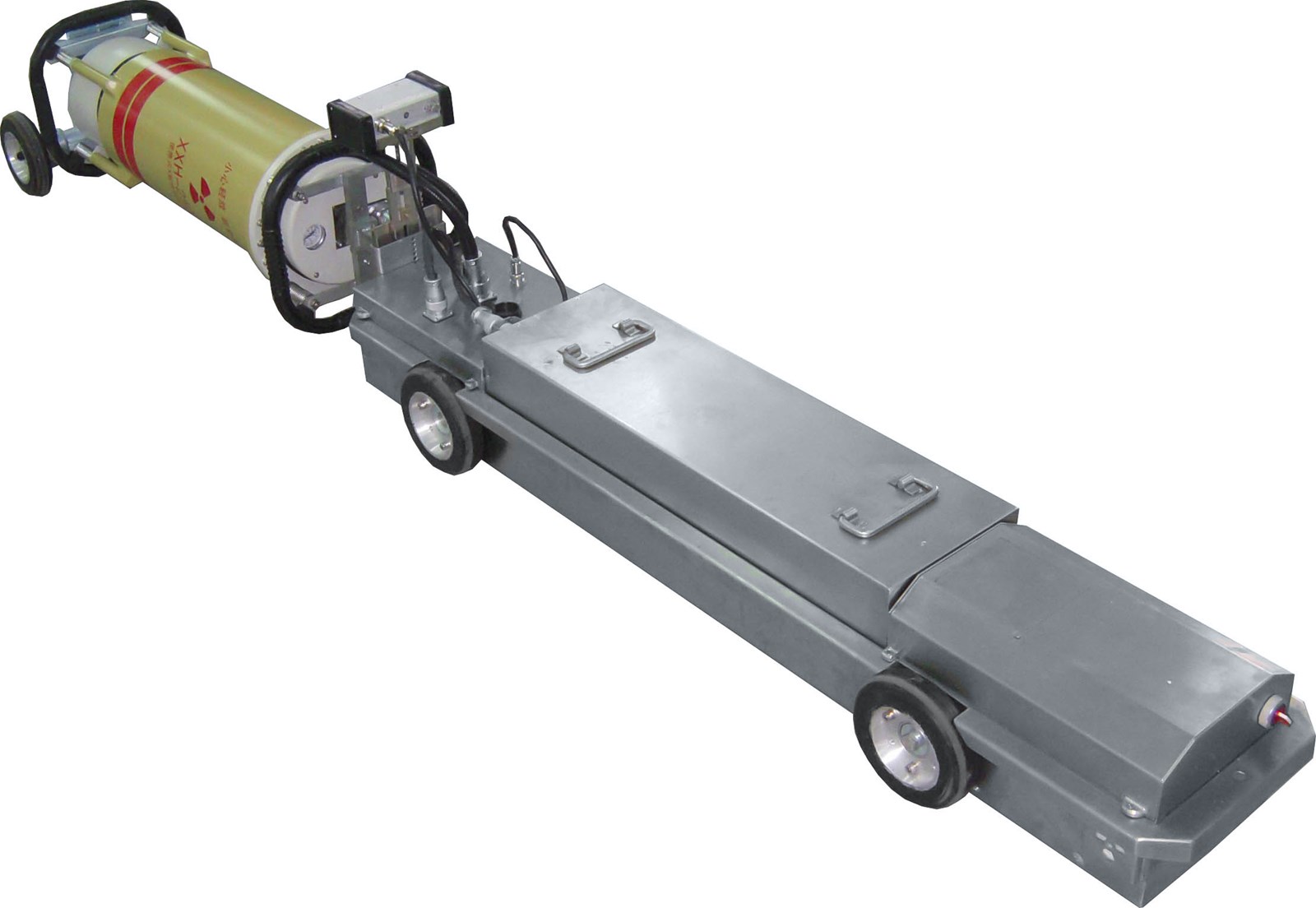

YG-100 series X ray pipeline crawler

Our crawlers employ magnetic location Control mode (Error: ±5mm); small size, easy operation, compact Structure; also functioned in external timing, automatic training, wheel driver Switchover (Automatically switch according to the slope), constant power output (all the films have the same gray). High Effective boost module is adopted, which makes the quality of Our pipeline crawler far beyond other similar products.

YG100 Series Crawlers are equipped with standard mini generator of high generality and replacement, which Effectively reduces failure rate. the car of YG100 series is made of nice steel with advanced workmanship, which looks Beautiful and light.

YG-100 Series Crawlers process the protective functions for under-voltage, obstacles, water, over-current, over-heating, undercurrent, etc. Any failure will be displayed in the touch screen, it is Convenient for identification and maintain.

Technique Datas of YG-100 Series Crawlers

Model	YG-1OOA	YG-1OOB	YG-1OOC	YG-1OOD	YG-1OOE


Pipe Diameter Range	DN700-DN1400	DN350-DN1000	DN250-DN700	DN200-DN500	DN150
Pipe Diameter Range	DN700-DN1400	DN350-DN1000	DN250-DN700	DN200-DN500	DN150
Max. Penetration (A3 Steel)	42mm	30mm	24mm	16mm	10mm
Max. Output Voltage	300KV	250KV	200KV	160KV	100KV
Max. Output Current	3mA	3mA	3mA	3mA	3mA
Focal Size	1.0×2.5mm	1.0×2.4mm	1.0×2.0mm	1.0×2.0mm	1.0×2.0mm
Beam	360°×30°	360°×30°	360°×38°	360°×38°	360°×38°
Crawling speed	15m/min~18m/min				12~14
Turning radius	≥7D				≥10D
Location accuracy	± 5mm
Positioning	Magnetic Positioning Device
Total Weight	154.3 Kg	125.3 Kg	75.3 Kg	54.1 Kg	40Kg
