IEC60068 Spring Impact Hammer Calibrator, IK calibration equipment SafeBuy Supplier Member

FOB Price: 1.00 - 2.00 USD/Set
Supply Ability: 100 Set/Sets per Month
Shipping: within 10 days receipt payment
Payment Terms: T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Standard packing, wooden case

Quick Details

  • Usage: Impact Hammer Calibrator
  • Power: /
  • Model Number: CX-TF06A
  • Brand Name: CX
  • Items Name: Plug Socket Torsion Tester
  • Conforms to standard: IEC60884,VDE0620,IEC60598,IEC60065Fig11
  • Arm of force: 0-200mm
  • Warranty: 1 year

Specifications

IEC60068 Impact Hammer Calibrator IK Calibration Test Device

Principle of calibration:

The principle of this calibration procedure is to compare the energy provided by a spring hammer, which is difficult to measure directly, to the energy of a pendulum, calculated from its mass and height of fall. And it's designed with the requirements of Annex B of IEC60068-2-75.


Construction:

It's maily made of a frame, a bearing, a drag pointer, a pendulum, a release base and a release device.



Notes:

The impact Hammer Calibrator can be used for all models, allowing verification of the proper functioning of different types of hammers with the same calibration.



The spring is designed for calibrating spring hammers having characteristics as defined for energy values equal to less than 2J.



Conforms to:

IEC60335, IEC60065, IEC60745, IEC61029, IEC60601, IEC60610 etc.


Technical parameters:

Main parameters CX-TF06A Similar products
The actual accuracy 0.01J 0.02J
Repeat accuracy ±0.01J 0.02-0.04J.
Maximum range 0-2J 0.1-2J
Guide groove diameter 51mm 51mm
Pendulum energy loss <0.002j  <0.008J
Trigger Route  >30mm <18mm
Weight 1pcs

2pcs


Other products from this supplier

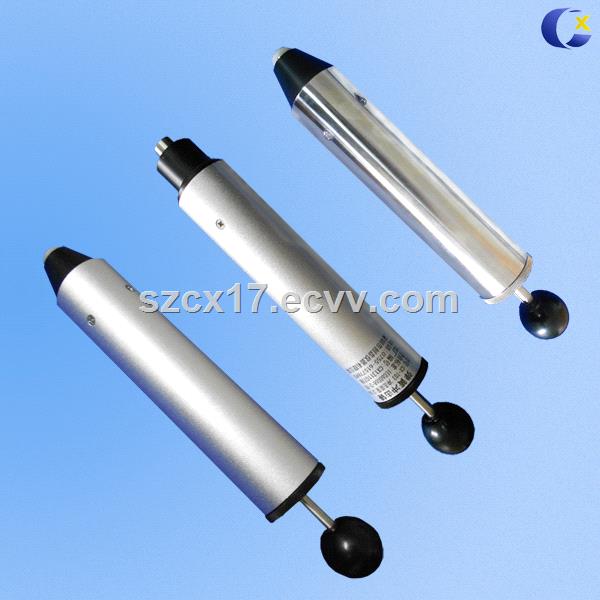

IEC 60068-2-75 Spring Impact Hammer for single energy
