FRP Pressure Tank Water Pressure Tank Price

FOB Price:	100.00 - 1,000.00 USD/Meter
Supply Ability:	3,000 Meter per Week
Shipping:	by sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Inside Packaging, Plasitc Bag 1Pc/carton Outside Packaging, Cardboard

Quick Details

Dimensions: DN25~4000mm
Technique: FRP Winding
Surface Treatment: resin gel
Application: water , oil,industrial,irrigation,agricult
Model Number: C98
Brand Name: WJ
strong strength: high pressure
long service live: simple maintenance
non-pollution: light in weight

Specifications

1. Product introduction

1) FRP tank is made of the advanced winding technique, with entire shaping internal bladder.
2) Compared with the same models, it has the characteristics of corrosion resisting, good quality, good appearance, convenient transportation installation, good seepage prevention, long using life.
3) Operation pressure is less than 0.6Mpa and operation temperature is less than 49°C
4) FRP tank has upper and under openings, and flange connections, which can form a complete set with control valves in different kinds of models and brands.
5)FRP tanks have many different Models: 871-96126(upper and under openings and side openings), 2.5'', 4'', 6'', 16'', 18'' flange

2. Specification

Model	Top opening	Bottom opening	Dia ×height(mm)	Volume (m3)	Weight	Suggestion flow(m3/h)
Model	Top opening	Bottom opening	Dia ×height(mm)	Volume (m3)	(KG)	Suggestion flow(m3/h)
818	2.5"thread	No	200×435	0.02	2.8	0.1~0.3
835	2.5"thread	No	200×895	0.042	4	0.2~0.4
844	2.5"thread	No	200×1120	0.052	5	0.2~0.5
1035	2.5"thread	No	250×895	0.066	5.5	0.4~0.8
1044	2.5"thread	No	250×1120	0.083	7	0.4~1.0
1054	2.5"thread	No	250×1380	0.101	8.3	0.5~1.2
1065	2.5"thread	No	250×1550	0.12	9	0.6~1.5
1252	2.5"thread	No	300×1330	0.131	9	1.0~2.0
1265	2.5"thread	No	300×1640	0.161	11.5	1.5~2.5
1354	2.5"thread	No	325×1390	0.172	11.5	1.8~2.5
1465B	4''thread	No	350x1660	0.247	15.5	2.0~3.0
1465	2.5"thread	No	350×1660	0.247	15.5	2.0~3.0
1665	2.5"thread	No	400×1660	0.307	19	2.5~4.5
1665B	4"thread	No	400×1660	0.307	19	2.5~4.5
1865	4"thread	No	450×1660	0.375	21	4.5~5.0
1865B	4"thread	4"thread	450×1480	0.375	21	3.5~4.8
2169	4"thread	4"thread	525x1570	0.482	34	3.0~5.0
2188	4"thread	4"thread	525x2020	0.606	40	3.0~5.0
2472	4"thread	4"thread	600×1670	0.666	41	4.0~6.0
2488	4"thread	4"thread	600×2020	0.792	54	5.0~9.0
3072	4"thread	4"thread	750×1660	1.041	56	6.0~10.0

3. Structure and material

Using high-performance resin and glass fiber winding, lining with PE or ERP etc, and high-performance materials imported FRP Pressure Vessels can also meet the demands in low temperature resistance and toughness is superior to the imported ABS lining Pressure Vessels.

4. Product Features

1) Corrosion resistance,
2) Easy and convenient installation
3) beautiful appearance.
3) High pressure, high capacity
4) FRP tank is for industrial water treatment or residential water softener.
5) High pressure. Max pressure: 10 bar
6) High capacity. Capacity: 0.2- 100T/H
7) High quality

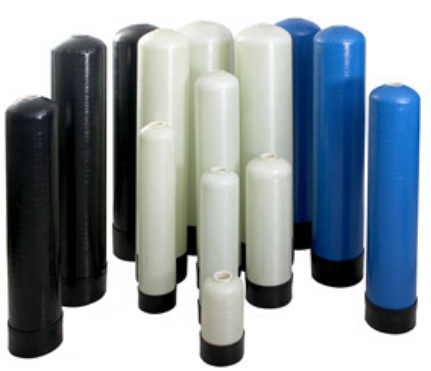

8) Tank color: Natural or blue (customize color available)
9) Max temperature: 120F
10) Tank inner liner: PE or ABS
11) Diameter varies.

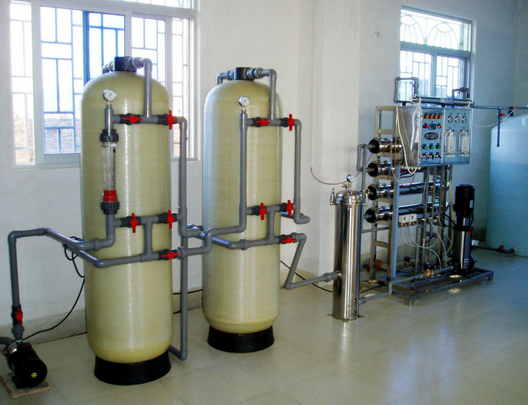

5. Application

Water supply and wastewater treatment industry, light industry, chemical industry, electronics, petrochemical, pharmaceutical, food, and other industrial fields.

6. Work condition

Work pressure≤ 0.4MPa, work temperature≤ 49° C, maximum vacuum 127mmHg(5"Hg)
Work mediator: Water, Acid, alkali and other chemicals corrosive liquids.

Specifications

1. FRP tanks for industrial water treatment or residential water softener.
2. High pressure
3. High capacity
4. High quality

a professional and long history manufacturer of water filtration products, such as filter cartridges, filter housings, UF module, and FRP tanks.

Various specifications made our FRP tanks apply for residential, commerical water softener and industrial water softening.

Tanks Color: natural or blue(customize color available)

Capacity: 0.2~100T/H

Max Temperature: 120F

A. Shell Layer: Fiber Glass

B. Liner Material: PE or PP

C. MAX. Test Pressure: 150psi

D. MAX. Working Pressure: 100psi

E. Temperature Range: 1-49°C

F. MAX. Vacuum: 5″Hg(127mm Hg)

Specifications:

Model No.	Specification(mm)	Top Opening	Bottom Opening	Recommended flux(T/H)
818	200×450	2.5"Thread	N/A	0~0.2
835	200×875	2.5"Thread	N/A	0.2~0.5
844	200×1100	2.5"Thread	N/A	0.2~0.5
942	225×1050	2.5"Thread	N/A	0.2~0.5
1018	250×450	2.5"Thread	N/A	0.2~0.5
1035	250×875	2.5"Thread	N/A	0.5~1.0
1054	250×1350	2.5"Thread	N/A	0.6~1.5
1252	300×1300	2.5"Thread	N/A	1.6~2.2
1265	300×1625	2.5"Thread	N/A	2.0~2.5
1354	325×1350	2.5"Thread	N/A	2.0~2.5
1465	350×1625	2.5"/4"Thread	N/A	2.5~3.0
1665	400×1625	2.5"/4"Thread	N/A	3.2~4.5
1865	460×1625	2.5"/4"Thread	N/A	4.5~5.0
2162	525×1500	4"Thread	4"Thread	4.5~6.0
2472	600×1800	4"Thread	4"Thread	6.2~8.2
3072	750×1800	4"Thread	4"Thread	7.2~12.2
3672	900×1800	4"Thread	4"Thread	13.2~16.2
4272	1050×1800	6"Flange	6"Flange	17~23
4872	1200×1800	6"Flange	6"Flange	22~27
4896	1200×2400	6"Flange	6"Flange	28~38
6096	1500×2400	6"Flange	6"Flange	38~55
7296	1800×2400	6"Flange	6"Flange	55~80
8096	2000×2400	6"Flange	6"Flange	80~100
