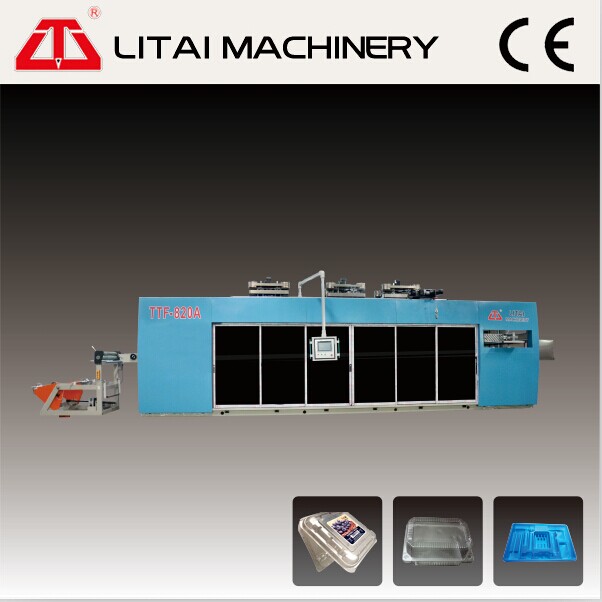

Multi-Station Fruit Tray Thermoforming Machine

FOB Price:	200,000.00 - 208,000.00 USD/Set
Supply Ability:	6 Set/Sets per Month
Shipping:	90 days. Based on Fob Ningbo or Shanghai Port,China.
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Exporting wooden Packing ( First oil,second film,final wooden case packing)

Quick Details

Processing Type: Plastic Thermoforming Machine
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Weight: About 30T
Dimension(L*W*H): L13000*W3100*H3300mm
Power(W): 223KW
Voltage: 380V, 50Hz
Model Number: TTF-820A
Brand Name: LITAI
Product Type: Fast Food Box
Condition: New
Max. Forming Area: 820mm * 560mm
Max. Forming Depth: 125mm
Sheet Thickness: 0.3-1.8mm
Max. Forming Speed: 26 times/min
Air Pressure: 0.6-0.8mpa
Air Consumption: 3.6 m3/min
Water Consumption: 0.7 m3/h
Max. Sheet Width: 850mm
Suitable Sheet: PET, PP, PS, HIPS, PVC

Specifications

1. Application area:

TTF series thermoforming machine is forming, punching, cutting and stacking in one line. It is completely driven by servo motor, stable operation, low noise, high efficiency. Its finished products are widely used in sealed package of toys, hardware, cosmetics, electronic products, such as batteries, electronic components, foodstuff (fruits pallets, snack boxes, biscuit boxes, food dishes, trays, lids, etc. ).

2.
Characters

1) PLC, touch screen and servo motor use Germany brand Siemens.

2) Mechanism movement adds oil automatically to lubricate at certain times.

3) Servo motor drives the movement of three working stations.

4) Stable operation and reliable performance, low noise, high quality.

5)It can finish production in one time through sheet feeding, heating, forming,

punching, cutting and stacking.

3. Main Technical Parameter:

TECHNICAL PARAMETER
Model	TTF-820A
Max. Forming Area	820mm × 560mm
Max. Forming Depth	125mm
Sheet Thickness	0.3-1.8mm
Max. Forming Speed	26 times/min
Air Pressure	0.6-0.8mpa
Air Consumption	3.6 m3/min
Water Consumption	0.7 m3/h
Max. Sheet Width	850mm
Suitable Sheet	PET, PP, PS, HIPS, PVC
Rated Power	223kw
Power Supply	AC 380V, 50Hz, Three-phase, Four-wire
Procedure	Forming-punching-cutting-stacking
Dimension	L13000×W3100×H3300mm
Weight	About 30T
