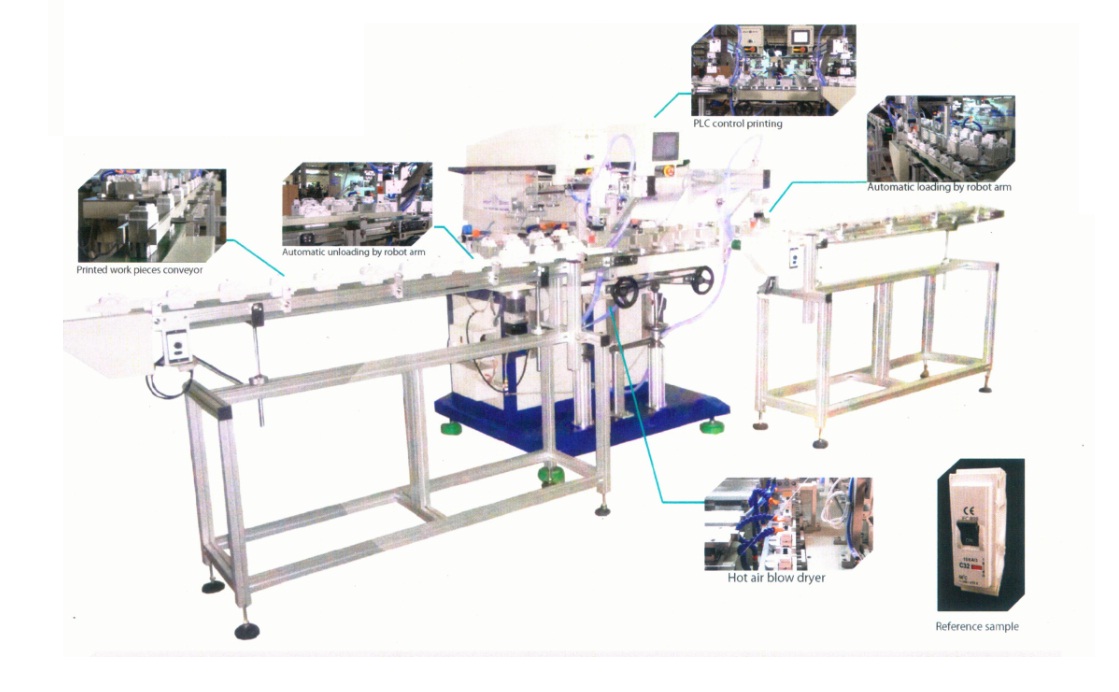

SPC-856AD2 5-color auto pad printer with conveyor and sealed ink cup (PLC control)
| Payment Terms: | T/T |
|---|
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | plywood packing |
Quick Details
- Type: Pad Printer
- Color & Page: Multicolor
- Automatic Grade: Automatic
- Model Number: SPC-856AD2
- Brand Name: Super Primex
- Plate Type: Flatbed Printer
- Condition: New
Specifications
SPC-856AD2
5-color auto pad printer with conveyor and sealed ink cup (PLC control)
Application range:
Technical data
Ink cup diameter: 90mm
Steel plate sizer: 100 X 250mm
Max. Printing pressure: 1830 N (6 bar)
Max. Printing speed: 900 (pcs/hr)
Max. Printing speed: 900 (pcs/hr)
Max. Air consumption: 280L/min (6 bar)
Power: 1.5 kw
Wattage: 1 ? AC 220V ± 10% 50 Hz
Noise value: < 70 (dB)
Machine dimensions: 4950 X 1475 X 1552 (mm)
Machine weight: 500 (kg)
Features
1. 5-color pad printer with sealed inl cup, motorized conveyor, for high accuracy positing
2. PLC control each movement, touch panel interface, easy to operate
3. With aluminum alloy frame, the machine is light and sturdy
4. Inking by ink cup, ink viscosity is stable and no need to add any solvents in 6-8 hours, no evaporation, splash, up to 50% ink saving; good working environment retained
5. Ink cup can be easy installed and taken out and durable.
6. Adjustable dwell time on different position to meet different printing requirement,
7. Inking twice and printing once available so as to get enough ink film thickness.
8. Unique ink cup edge structure, makes ink scraping neat, ensure good printing quality
9. Fully automatic loading and unloading device
10. One or two color printing are possible.
