Outdoor PoE Extender

Specifications

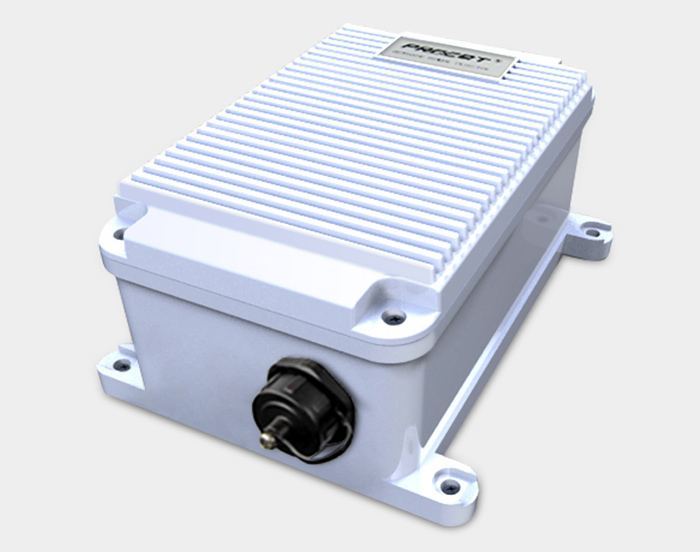

• PT-PEX-01G-OT Single port outdoor PoE extender
• PROCET PT-PEX-01G-OT is outdoor lightning protection gigabit PoE SFP extender, extending 100m, supporting lightning protection for 8 line signal and PoE power. With SFP port, it could connect with fiber PD, like optical transceiver. IP67, waterproof seal strip have past tensile test, load test, corrosion test, aging test, to meets requests of steady power and steady network communication. With fixed holes, it is easy to install for without opening the shell. The PoE extender connects with PSE equipment though CAT5e, suitable for bandwidth 10/100/1000Mbps.
• 1)Extending 100m
• PT-PEX-01G-OT connects with PSE equipment by PoE port and connect with fiber PD by SFP port, adding power distance 100m. Power and signal transfer to remote PD by CAT5 or CAT5e, the transmission distance is 100m.
•
• 2)MAX. Output Power
• With MAX output power 30W, output current 550mA, PT-PEX-01G-OT could meet requests of high power PD in market, like outdoor high power base station, wireless AP, network camera, etc.
•
• 3)Powerful Lightning protection and protection class
• Supporting lightning protection 6KV(10/700) for 8 line signal and PoE power, protect power device from lightning. Metal shell, IP67, waterproof sheath in junction.
•
• 4) Wide-range operation temperature, easy to install
• PT-PEX-01G-OT is high adaptation in temperature. With four installation holes, it could fix on wall by self-tapping screw or bind on pole by clamp.
• Product Performance
• 1. Output Voltage: 44-57VDC
• 2. MAX. Output Power: 30W
• 3. Output Current: 550mA
• 4. Output Voltage Regulated Accuracy: 55VDC±5%
• 5. Load Regulated: 55VDC±1%
• 6. Operation Temperature: -40℃~+65℃
• Standard
• - IEEE802.3 10Base-T Ethernet
• - IEEE802.3u 100Base-Tx Fast Ethernet
• - IEEE802.3ab 1000Base-T Gigabit Ethernet
• - IEEE802.3af/IEEE802.3at PD compliant
• - RoHS Compliant
• - WEEE Compliant,CE/FCC
• - FCC Part 15,Class B
• - EN 55022 Class B
• - MTBF:100,000h, @25℃
•
•   PoE Input and Output
• - PoE Port: 1
• - Extending Distance: 100m
• - PoE Pins Arrangement: 4/5(+), 7/8(-) or 3/6(+), 1/2(-)
• - Data Transmission Speed: 10/100/1000Mbps
• - Output Voltage: 55V
• - Output Current: 550mA
• - Input Voltage: 44-57VDC
•
•   Dimension and Weight
• - Dimension: 188.6mm X 124.86mm X 74mm
• - Weight: 0.8kg
•
•   Physical Interface
• - PoE Input: RJ45(waterproof seal triple)
• - PoE Output: RJ45(waterproof seal triple)
•
•   Operation Condition
• - Operation Temperature: -40℃ to 65℃
• - Operation Height: -304.8m to 3048m
• - Operation Humidity: MAX. 90%, Non-condensation
•
•   Network Surge Protection
• - Protection Line: 1, 2, 3, 4, 5, 6, 7, 8
• - Common-mode Surge Protection: 6KV (10/700us)
• - Clamp Voltage (1, 2; 3, 6; 4, 5; 7; 8): 7.5VDC
•
•   PoE Input Surge Protection:
• - Different Mode Surge Protection: 6KV (10/700us)
• - Power Clamp Voltage: ( 4, 5 — 7, 8): 60VDC
• Order Info.
• PT-PEX-01G-OT          55VDC/30W/1000M/ IP67/ 4/5(+), 7/8(-) or 3/6(+), 1/2(-)
• PT-POT-MBK-S           Outdoor Installation Kit
•
• Package Info.
• PT-PEX-01G-OT x 1
• Operation manual x 1
