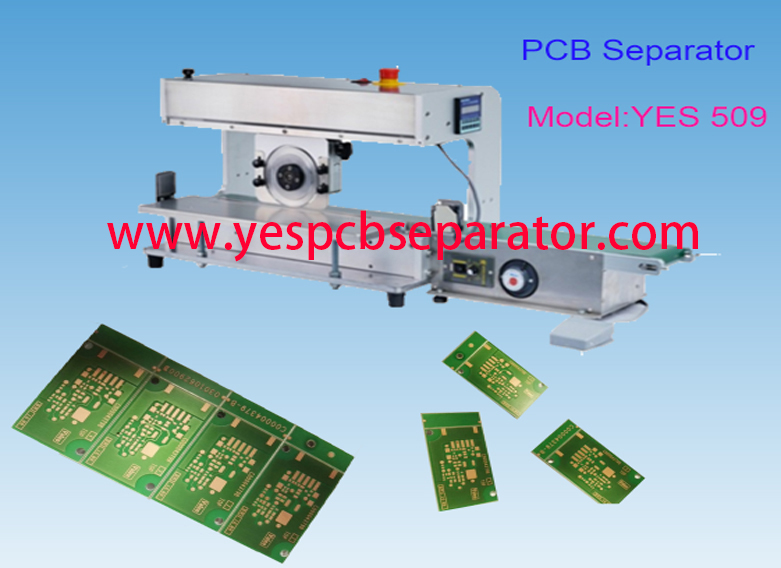

Motorized PCB Separator Two Blade PCB Depanelizer

FOB Price: 2,000.00 - 3,800.00 USD/Set
Supply Ability: 123 Set(s) per Month
Shipping: DHL FEDEX UPS TNT
Payment Terms: L/C, T/T, Western Union, MoneyGram
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Wooden case

Quick Details

  • Model Number: YES1
  • Brand Name: YES
  • Warranty: one year
  • Certification: CE ISO

Specifications

Our YES-1 V Cut PCB Separator Application

LED Panel,Fiber Board,Aluminium Plate,Aluminium Substrate,Copper Substrate FR4,Glass Fiber Board

CAB PCB Depanelizer MAESTRO 4M YES-1 PCB Separator Features:

1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5. Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and
Angle are adjustable
7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates
for blade wear out
Motorized PCB Separator Two Blade PCB Depanelizer
YES-1 PCB Depaneling Machine Specification:

Size:  770mm X 510mm X 450mm
Max PCB Length:  410mm
Minimize Speed: 100/200/300/500mm/s(adjustable)
Minimize thickness: 0.6-3.5mm
Machine Weight: 90Kg

Why Clients Buy Our PCB Separator Model YES-1

1. It is safty, Separates large numbers of PCBs without fatigue of the operator
2. Motor driven
3. the PCB is feed between the circular blades where it is seized, transported and separated
4. Different speeds can be selected
5. We can made plate according the customers requirement.

Customers FAQ about PCB Separator YES-1:

1. Q:Do you have any certification for this machine?
   A:YES,We have CE ISO FCC ROHS etc.

2. Q:What is warranty of the machine?
   A:1 year.

3. Q:how do you pack the machine?
   A:We fix the machine on the plywood base with screws to ensure safe transportation.

4. Q:What is life time of machine blades?
   A:about 6-12 months.

5. Q:What is material of blades?
   A:Japan high speed steel SKH-9

6. Q:Can the blades be sharpened?
   A:Yes, they could be re-sharpened for 2-3 times.

7. Q:how do you offer oversea service?
   A:We could send engineer to do installation and training for client if needs.

8. Q:Can we see your machine in our country?
   A:Yes, we would like to offer contact details of our clients who are using our machines.
