FBF JIMBIL NACHI BRAND Nachi Cylindrical Roller Bearing N1038 NU1038

Supply Ability:	500,000 Piece(s) per Month
Shipping:	delivery within 3 days.
Payment Terms:	Western Union, MoneyGram, Safebuy, Paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	1. industrial package. 2. according to customer requirement.

Quick Details

Type: Roller
Structure: Cylindrical
Number of Row: Single Row
Outside Diameter: 0-290 mm
Bore Size: 0-190 mm
Structure: Cylindrical
Type: Roller
Seals Type: Open
Precision Rating: P6 P5 P0
Model Number: NU1038
Brand Name: FBF JIMBIL
Working temp:: 150oC~350oC
Retainer(cage): stamped steel, brass, nylon
Clearance:: C2, C0, C3,C4,C5

Specifications

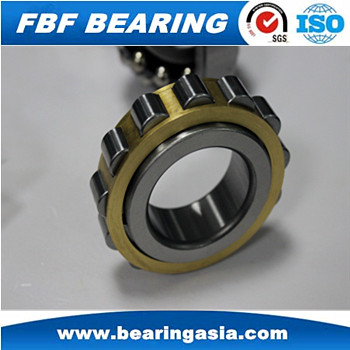

NSK FBF NACHI stock Cylindrical roller bearing N1038 NU1038

Cylindrical roller bearing is one radial rolling bearing with cylindrical roller as the rolling part. the rollers on the bearing are vertically arranged and crossed with each other, which is the origin of cross roller bearing. Space maintainer and separate unit among rollers can prevent roller from obliquity and mutual friction and effectively avoid torque increasing. Cylindrical roller bearing belongs to separated bearing with easy installation and removal. It can bear large radial load applied in high speed operation.

? Types NU, N, NNU, and NN are suitable as free-end bearings.

? Types NJ and NF can sustain limited axial loads in one direction.

? Types NH and NUP can be used as fixed-end bearings.

? NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.

? the inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the marked side is on the outside.

? the RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring

? the RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.

NSK FBF Nachi Cylindrical roller bearing N1038 NU1038

d	D	B	Weight/KG	cr kn	Cor kn	Limited speed	Bearing model
20	52	15	0.156	31.5	27	14000	NJ304E
25	62	17	0.25	41.5	37.5	12000	NJ305E
30	72	19	0.376	51	48	10000	NJ306E
45	100	25	0.913	98	100	6700	NJ309E
50	110	27	1.19	110	114	6300	NJ310E
55	120	29	1.51	134	140	5600	NJ311E
55	120	29	1.51	134	140	5600	NJ311E
60	130	31	1.89	150	156	5000	NJ312E
60	130	31	1.89	150	156	5000	NJ312E
65	140	33	2.32	180	190	4800	NJ313E
70	150	35	2.84	204	220	4500	NJ314E
75	160	37	3.39	240	265	4000	NJ315E
80	170	39	4.03	255	275	3800	NJ316E
85	180	41		290	325	5600	NJ317E
90	190	43	5.49	315	345	3400	NJ318E
95	200	45	6.44	335	380	3400	NJ319E
100	215	47	7.82	380	425	5000	NJ320E
110	240	50	10.3	440	510	4800	NJ322E
120	260	55	13.5	520	600	2800	NJ324E
130	280	58	16.5	570	670	2600	NJ326E
140	300	62	20.5	670	800	2400	NJ328E
150	320	65	27.2	765	930	3600	NJ330E
160	340	68	32.3	865	1060	3000	NJ332E
