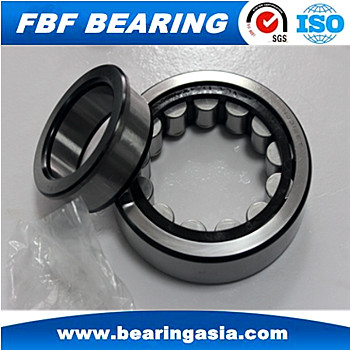

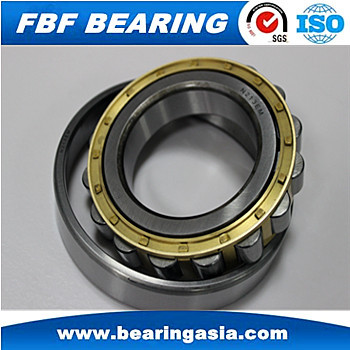

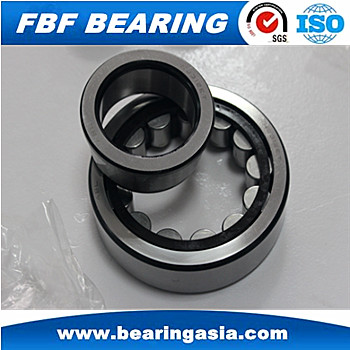

NSK FBF Nachi Stock Cylindrical Roller Bearing NN3017

Supply Ability:	500,000 Piece(s) per Month
Shipping:	delivery within 3 days.
Payment Terms:	Western Union, MoneyGram, Safebuy, Paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	1. industrial package. 2. according to customer requirement.

Quick Details

Type: Roller
Structure: Cylindrical
Number of Row: Single Row
Outside Diameter: 0-130 mm
Bore Size: 0-85 mm
Structure: Cylindrical
Type: Roller
Seals Type: Open
Precision Rating: P6 P5 P0
Model Number: NN3017
Brand Name: NSK SKF FBF
Working temp:: 150oC~350oC
Retainer(cage): stamped steel, brass, nylon
Clearance:: C2, C0, C3,C4,C5

Specifications

NSK FBF Nachi stock Cylindrical roller bearing NN3017

Cylindrical roller bearing is one radial rolling bearing with cylindrical roller as the rolling part. the rollers on the bearing are vertically arranged and crossed with each other, which is the origin of cross roller bearing. Space maintainer and separate unit among rollers can prevent roller from obliquity and mutual friction and effectively avoid torque increasing. Cylindrical roller bearing belongs to separated bearing with easy installation and removal. It can bear large radial load applied in high speed operation.

Types NU, N, NNU, and NN are suitable as free-end bearings.

Types NJ and NF can sustain limited axial loads in one direction.

Types NH and NUP can be used as fixed-end bearings.

NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.

the inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the marked side is on the outside.

the RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring

the RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring.

NSK FBF Nachi Cylindrical roller bearing N1038 NU1038

Bearing No.	d	D	B
	mm	mm	mm

NN3006-as-K-M-SP	30	55	19
NN3007-as-K-M-SP	35	62	20
NN3008-as-K-M-SP	40	68	21
NN3009-as-K-M-SP	45	75	23
NN3010-as-K-M-SP	50	80	23
NN3011-as-K-M-SP	55	90	26
NN3012-as-K-M-SP	60	95	26
NN3013-as-K-M-SP	65	100	26
NN3014-as-K-M-SP	70	110	30
NN3015-as-K-M-SP	75	115	30
NN3016-as-K-M-SP	80	125	34
NN3017-as-K-M-SP	85	130	34
NN3018-as-K-M-SP	90	140	37
NN3019-as-K-M-SP	95	145	37
NN3020-as-K-M-SP	100	150	37
NN3021-as-K-M-SP	105	160	41
NN3022-as-K-M-SP	110	170	45
NN3024-as-K-M-SP	120	180	46
NN3026-as-K-M-SP	130	200	52
NN3028-as-K-M-SP	140	210	53
NN3030-as-K-M-SP	150	225	56
NN3032-as-K-M-SP	160	240	60
NN3034-as-K-M-SP	170	260	67
NN3036-as-K-M-SP	180	280	74
NN3038-as-K-M-SP	190	290	75
NN3040-as-K-M-SP	200	310	82
NN3044-as-K-M-SP	220	340	90
NN3048-as-K-M-SP	240	360	92
NN3052-as-K-M-SP	260	400	104
NN3056-as-K-M-SP	280	420	106
NN3060-as-K-M-SP	300	460	118
NN3064-as-K-M-SP	320	480	121
NN3068-as-K-M-SP	340	520	133
NN3072-as-K-M-SP	360	540	134
NN3076-as-K-M-SP	380	560	135
NN3080-as-K-M-SP	400	600	148
NN3084-as-K-M-SP	420	620	150
NN3088-as-K-M-SP	440	650	157
NN3092-as-K-M-SP	460	680	163
NN3096-as-K-M-SP	480	700	165
NN30/500-as-K-M-SP	500	720	167
