Double Row International Distributors Wanted Thrust Roller Bearing 22309

Supply Ability:	500,000 Piece(s) per Month
Shipping:	delivery within 3-5 days
Payment Terms:	T/T, Western Union, MoneyGram, Safebuy, Paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	1. Industrial packing 2. Polybag+carton+pallet 3. According to customers

Quick Details

Type: Roller
Structure: Thrust
Seals Type: Open/Z/ZZ/RS/2RS/RZ/2RZ/Nylon cage
Precision Rating: P0 P6 P5 P4 P2
Outside Diameter: 0-100 mm
Bore Size: 0-36 mm
Brand Name: FBF SKF TIMKEN
Number of Row: Double Row
Model Number: 22309
Material:: chrome steel, stainless steel
Cage:: copper cage, steel cage
Size:: 45*100*36 mm
Weight:: 1.39kg
Precisioin:: P0 P5 P6 P4
Number of row:: Single row

Specifications

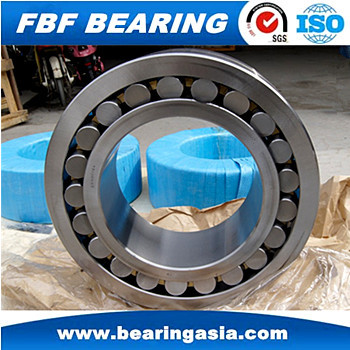

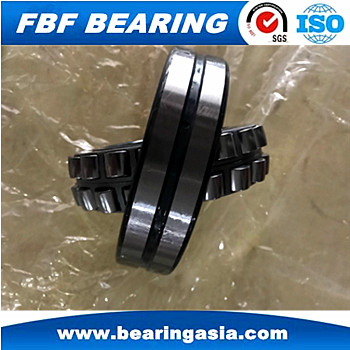

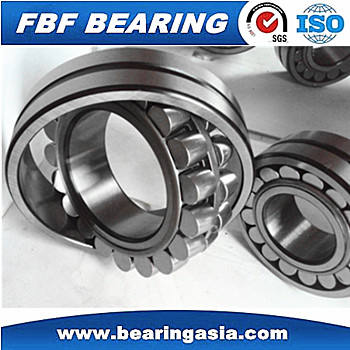

TIMKEN SKF FBF double row thrust roller bearing 22309

Self-aligning roller bearing is designed to adapt to the circumstance of heavy load. It has two rows of symmetric spherical rollers.the rollers may freely adjust position in the outer spherical raceway,which may compensate the shaft deformation and non-alignment error of bearing seat.

the quantity,length and diameter of roller in self-aligning roller bearing are the max.Value that the structure allows.the close contact between the roller and raceway ensures the uniform stress distribution and enables the high bearing capacity of bearing.

Roller Bearing Size 50mm110mm40mm 22310 Spherical Roller Bearing

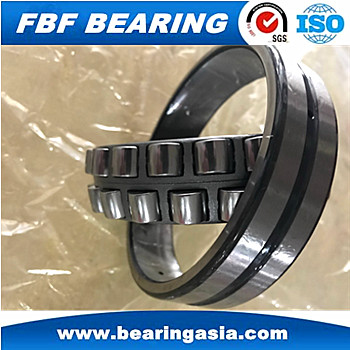

C(J) CC : Two window-type steel cages, flangeless inner ring and guide ring centred on the inner ring

EC(J) ECC(J) : Two window-type steel cages, flangeless inner ring, guide ring centred on the inner ring and reinforced roller complement

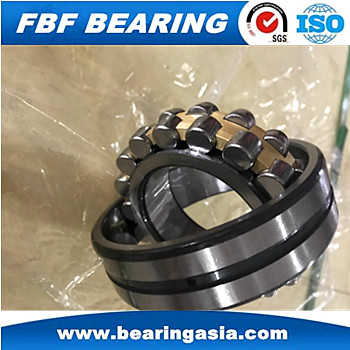

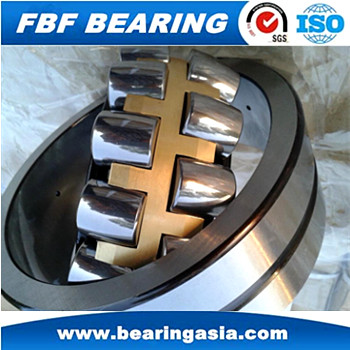

CA : One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centred on the inner ring

ECA ECAC: Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring, guide ring centred on the inner ring

E : for bearings with a bore diameter d 65 mm:

Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring

W33: stands for 3 oil holes on the outer ring groove.

Type	b	D	B	Weight(kg)
22205/20 E *	20	52	18	0,28
22205 E *	25	52	18	0,26
22205 EK *	25	52	18	0,26
BS2-2205-2CS/VT143 *	25	52	23	0,26
21305 CC *	25	62	17	0,28
22206 E *	30	62	20	0,29
22206 EK *	30	62	20	0,28
BS2-2206-2CS/VT143 *	30	62	25	0,34
21306 CC *	30	72	19	0,41
21306 CCK *	30	72	19	0,4
22207 E *	35	72	23	0,45
22207 EK *	35	72	23	0,44
BS2-2207-2CS/VT143 *	35	72	28	0,52
21307 CC *	35	80	21	0,55
21307 CCK *	35	80	21	0,54
22208 E *	40	80	23	0,53
22208 EK *	40	80	23	0,52
BS2-2208-2CS/VT143 *	40	80	28	0,57
BS2-2208-2CSK/VT143 *	40	80	28	0,57
21308 E *	40	90	23	0,75
21308 EK *	40	90	23	0,74
22308 E *	40	90	33	1,05
22308 E/VA405 *	40	90	33	1,05
22308 EK *	40	90	33	1,05
BS2-2308-2CS/VT143	40	90	38	1,2
BS2-2308-2CSK/VT143 *	40	90	38	1,2
22209 E *	45	85	23	0,58
22209 EK *	45	85	23	0,57
BS2-2209-2CS/VT143 *	45	85	28	0,66
BS2-2209-2CSK/VT143 *	45	85	28	0,64
21309 E *	45	100	25	0,99
21309 EK *	45	100	25	0,98
22309 E *	45	100	36	1,4
22309 E/VA405 *	45	100	36	1,4
22309 EK *	45	100	36	1,35
BS2-2309-2CS/VT143 *	45	100	42	1,6
BS2-2309-2CSK/VT143 *	45	100	42	1,6
22210 E *	50	90	23	0,63
22210 EK *	50	90	23	0,62
BS2-2210-2CS/VT143 *	50	90	28	0,7
BS2-2210-2CSK/VT143 *	50	90	28	0,68
21310 E *	50	110	27	1,35
21310 EK *	50	110	27	1,35
22310 E *	50	110	40	1,9
22310 E/VA405 *	50	110	40	1,9
22310 EK *	50	110	40	1,85
BS2-2310-2CS/VT143 *	50	110	45	2,1
BS2-2310-2CSK/VT143 *	50	110	45	2,1
22211 E *	55	100	25	0,84
22211 EK *	55	100	25	0,82
BS2-2211-2CS/VT143 *	55	100	31	1
BS2-2211-2CSK/VT143 *	55	100	31	1
21311 E *	55	120	29	1,7
21311 EK *	55	120	29	1,7
22311 E *	55	120	43	2,45
22311 E/VA405 *	55	120	43	2,45
22311 EK *	55	120	43	2,4
22311 EK/VA405 *	55	120	43	2,4
BS2-2311-2CS/VT143 *	55	120	49	2,8
BS2-2311-2CSK/VT143 *	55	120	49	2,8
