Chengdu Sand Electronic Co., Ltd.
China Manufacturer with main products: High Temperature Melt Pressure Transducer, High Temperature Melt Pressure Transmitter, Melt Pressure Gauge, Intelligent Indicator, PID... |

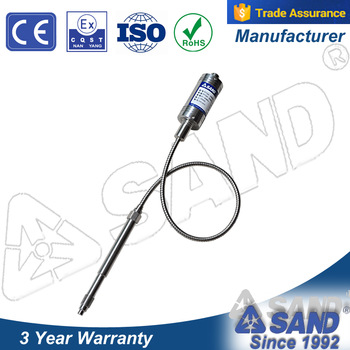

Ultra-Temperature Melt Pressure Transmitter PT3216B
| FOB Price: | 200.00 - 300.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Week |
| Shipping: | 7-20days ChengDu FOB |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Sichuan in China |
| Packaging Details: | standard carton |
Quick Details
- Brand Name: SAND
- Output: 0-10V
- Accuracy: 0.5%FS
- Power Supply: 10-36VDC
- Range: 0-200MPa
- Model Number: PT3216B
- color: silver
- type: pressure sensor
- work temperature: 550 celsuis
Specifications
Introduction
this series of products is mainly used for measurement of high temperature melt pressure.the maximum diaphragm temperature of normal high temperature melt pressure transducer is up to 400. these series are made of special material and pressure transmitting methods.It has more scientific construction design,even put them in the 550 working conditions,they can also measure very precisely.
items |
Pressure transducer |
Pressure transmitter |
Rigid Stem Tpye |
PT3116 |
PT3116B |
Flexible Stem Type |
PT3216 |
PT3216B |
Pressure & temperature dual ability type |
PT3226 |
PT3226B |
Performance
.Maximum diaphragm temperature:550
.Comply with FDA standard and the eu RoHS directive
.6PIN mating connection.More reliable and stable
.Stainless steel housing, beautiful,rugged, durable
.Accuracy:0.5%FS,1.0%FS
.Output signal:
Transducer:3.33mv/v, 3.0mv/v
Transmitter:0-10v, 4-20mA
.Corrosion resistant coating to extend the service life of 3 to 5 times (optional)
.Thermometric config:
Thermocouple:E, J, K, J type
Thermal resistance:Pt100etc
Order format:
Example:PT3716-100MPa-1/2-20-150-4-20mA
Note:product model" PT3716",function code " B" stand for pressure transmitter
Coating code null stands for without coating
Pressure range:0-100MPa,thread size:1/2" -20UNF
Rigid stem length:150mm/no flexible stem
Pressure output signal 4-20mA.Signal-function,non-temperature configuration
