Full Automatic LED Pick & Place Machine
| FOB Price: | 20000.00 - 30000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | ocean |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | ply-wooden case |
Quick Details
- Brand Name: LEADSMT
- Warranty: 1 year
- Certification: CE
- COLOR: white
- Lead time: 30 dyas
- Model Number: LEAD-2208
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Weight: 1000KG
- color: WHITHE
Specifications
the following example is for you reference.
1.Brief Introduction:
Product Application

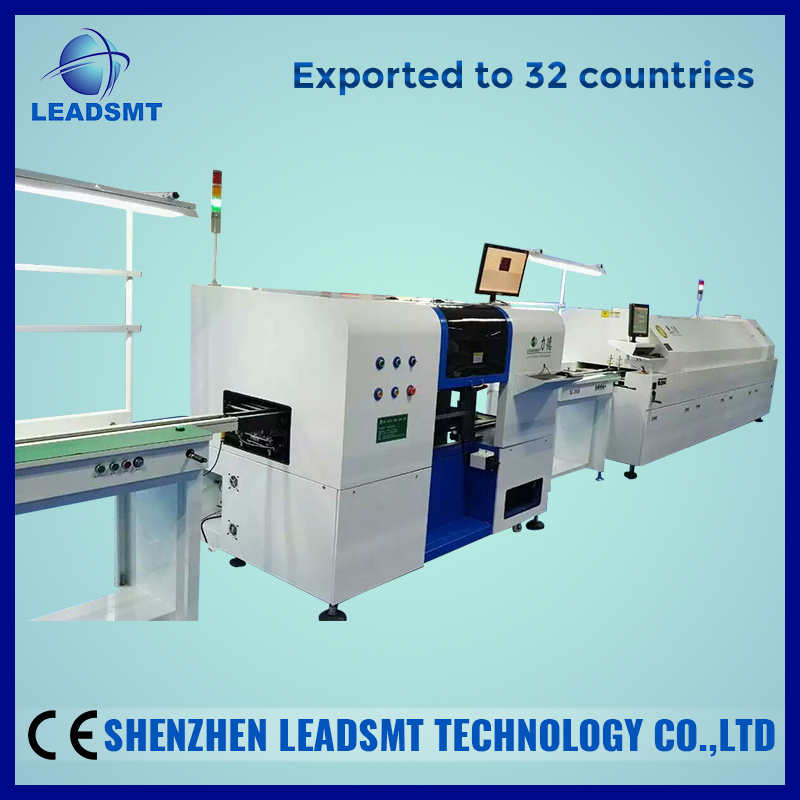

LED SMT production line -pick and place machine:
Full automatic, on-line, 6-8 heads
Speed: 40000-60000CPH
Vision Camera: 6-8 pcs
Feeder positon: 14-24pcs
Suitable for LED bulb, LED tube, LED panel, LED street light etc, all kinds of LED lamp.
2.Techincal parameters:
Model
LEAD-2208
Working Type
Online,Fully automatic
Mounting Heads
8 Pieces
Stable practical Speed
35000cph
Max Speed
45000cph
PositionAccuracy
0.005mm with one big cameras with 3 million pixels.
Placement accuracy
Usually 0.1mm, with8 visual cameras and visual system check option for high precision electronics PCBA.Placement accuracy up to 0.05mm if added.
Max moving range(X,Y)
X axis 1220mm, Y axis 430mm
Z axis max moving range
10mm
Position and programming Method
Key and mouse input
Visual Position + Mark Point Scan
PCB Gaber file input
Max Mounting PCB size
1200mm*320mm(in One cycle)
Mounting components type
Including and above 0602 SMD components like resistors,ics,capacitors,all kinds of leds such as 2835,3014,3030,4040,5050,5630,5730,7070 and high powers.
No. of Feeders
24 Pieces
Feeder sizes available
8mm,12mm,16mm, 24mm,32mm
Operation System
Windows XP .
Pressure detective system
Negative detective system with digital display.
3.Performance features:
1) Suitable for all LED lamp, and some LED driver.Working for LED chips, IC, resistor, capacitor etc
2) Adopting advanced world famous brand components in machine parts.
3) Full automatic, save worker. High accuracy with vision cameras.
4) Sold to more 32 countries in the world.
5) Professional foreigh sals team provide service; engineer can go to oversea to provide install and training service.
