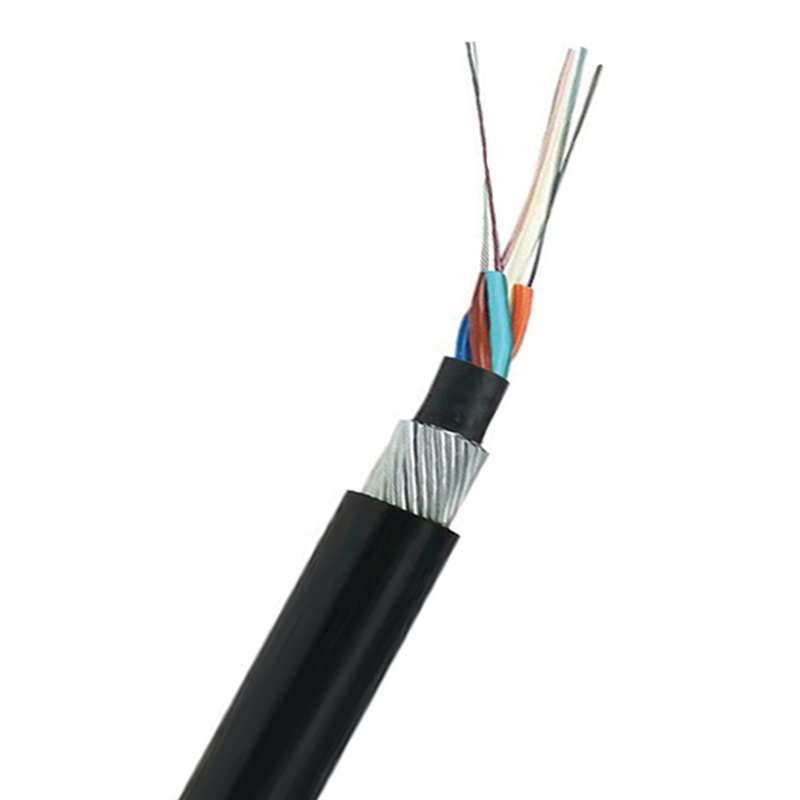

Steel Wire Armoured Submarine Fiber Optic Cable GYTA33

Specifications

the structure of GYTA33 fiber optic cable is based on the structure of GYTA fiber optic cable, strengthening the waterproof function and anti-extrusion function. It is to coat the fiber into the loose sleeve made of PE material, and fill the sleeve with waterproof compound material. At the center of the cable core is a metal reinforced core. For some fiber optic cables, a layer of polyethylene (PE) is added to the metal reinforced core. The loose sleeve is twisted around the central stiffener to form a compact circular core, and the gaps in the core are filled with water-blocking filler. Coated with aluminum strip longitudinal package after extruding a layer of PE inner sheath, and then longitudinally coated single or double layer of thin round steel wire armor, finally extruded polyethylene outer layer into cable.
Product features:
Accurate residual length control to ensure that the cable has a good tensile performance and temperature characteristics;
/ with good mechanical properties and temperature characteristics;
Thin round steel wire armor to make the cable has a stronger tensile performance;
Tight and compact structure, excellent bending performance, good compression resistance and flexibility, easy to operate.
/ after cabled, the additional attenuation of the fiber is almost zero, and the dispersion value is unchanged;
Service life over 30 years;
