Home >Products Catalog > LNF Power Meter > Good Quality Lnf72e-C Optional Module Design Multi-Function Power Meter, High-Precision LED Display RS485 Modbus RTU Ene

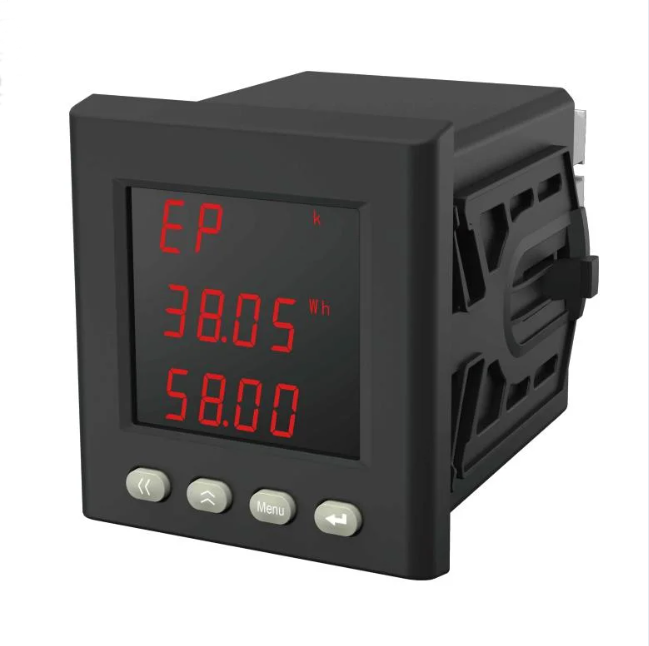

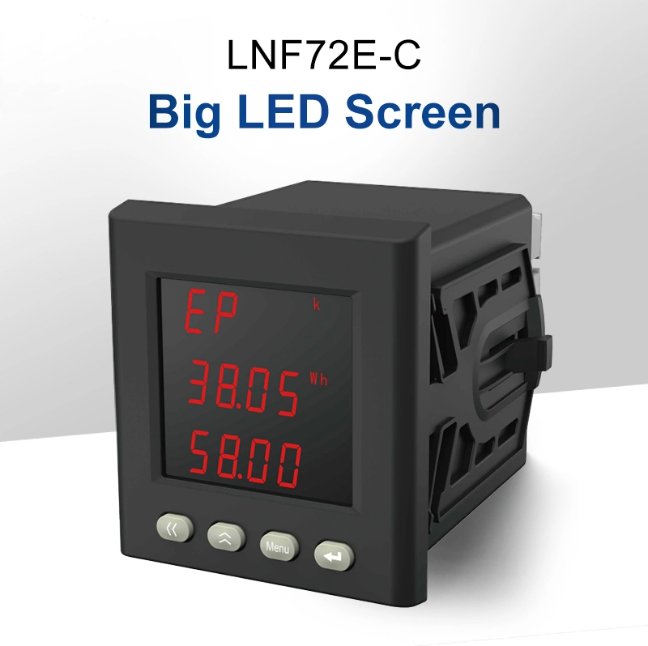

Good Quality Lnf72e-C Optional Module Design Multi-Function Power Meter, High-Precision LED Display RS485 Modbus RTU Ene

FOB Price:	40.00 - 60.00 USD/Piece

In Stock

Inquiry Now

Product Details

Quick Details

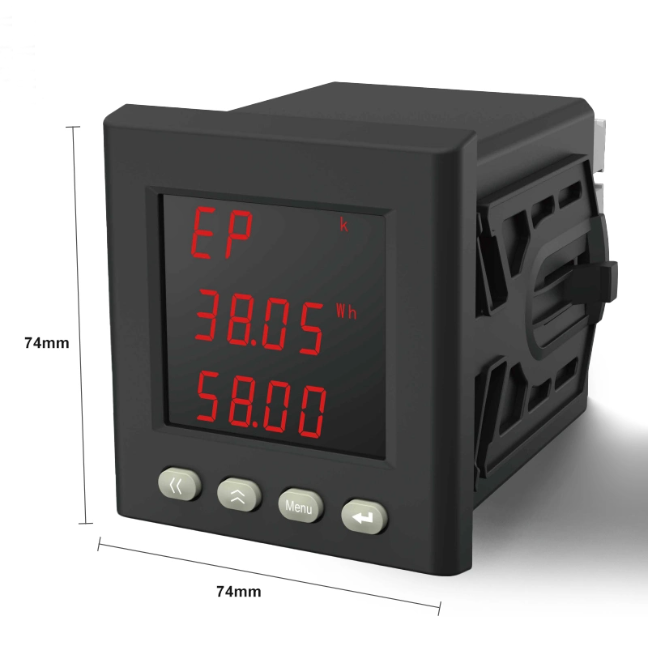

Dimensions: 74mm * 74mm
Accuracy Class: 0.5s
Phase: Three Phase
Display Type: Digital Only
Brand Name: Elecnova
Model Number: LNF72E-C

Specifications

Basic Info.

Model NO.

LNF72E-C

Measured Signal

Pulse Peak

Type

Power Meter

Certification

ISO, CE

Customized

Display Method

LED

Accuracy

0.5s

Data Refresh Frequency

Degree of Protection

IP54

Frequency

45-65Hz

Real-Time Measurement

I/U/P/Q/S/F/PF

Harmonic Content

2-15 Times

Communication

RS485

Specification

74*74mm

Trademark

LINFEE

Origin

China

HS Code

9030809090

Production Capacity

20000PCS/Per Month

Product Description

Product Name: Good Quality LNF72E-C Optional Module Design Multi-function Power Meter, High-precision LED display Power Meter

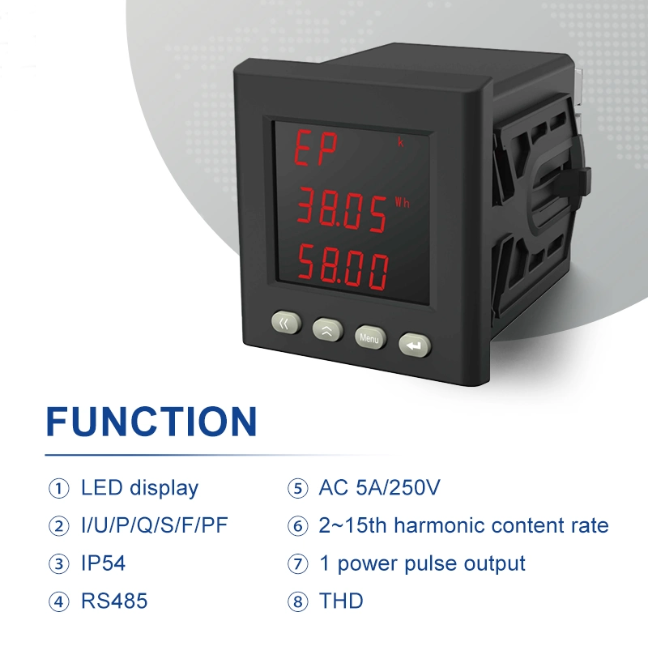

this series of multifunctional power meters has the functions of full power parameter measurement, two-way power metering, four-quadrant reactive power metering and harmonic analysis, and can be connected to power monitoring systems and energy management systems. It is characterized by high precision, high protection level, and expandable functions.

Good Quality Lnf72eC Optional Module Design MultiFunction Power Meter HighPrecision LED Display RS485 Modbus RTU Ene

Technical Specifications

Accuracy		0.5S
Data Update Rate		1s
Signal Input	Rated Current	AC 1A,5A
	Rated Voltage	AC 100V,380V
	Overload	Continuous:2In,instantaneous:10In/5s
		Continuous:1.2Un,instantaneous:2Un/1min
	Energy Consumption	≤0.1VA
	Fequency	45~65HZ
Communication	RS485 Interface	Modbus-RTU protocol, baud rate up to 9600bps
Energy Pulse		Optocoupler isolation,pulse width 80ms±20%
Digital Input		Optocoupler isolation,passive dry contact
Relay Output		Contact capacity AC250V 5A or DC 30V 5A
Auxiliary Power Supply	Working Range	AC/DC 80~270V
Auxiliary Power Supply	Energy Consumption	≤5VA
Environment Condition	Working Temperature	-10~55C
	Storage Temperature	-25~70C
	Relative Humidity	≤93%RH
	Altitude	≤2000m
Safety	Insulation	SignaL,power supply,output terminal to case resistance ≥100MΩ
Safety	Withstand Voltage	Power supply,input and output ≥2kv
Protection Level		IP54

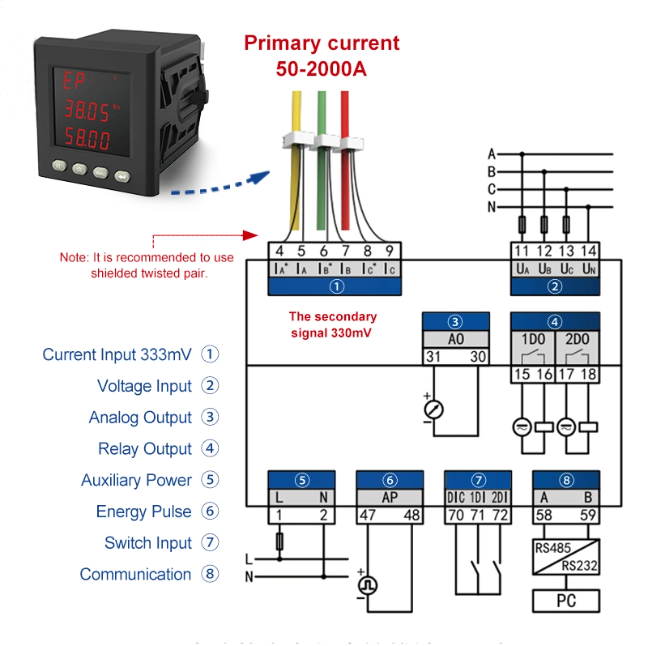

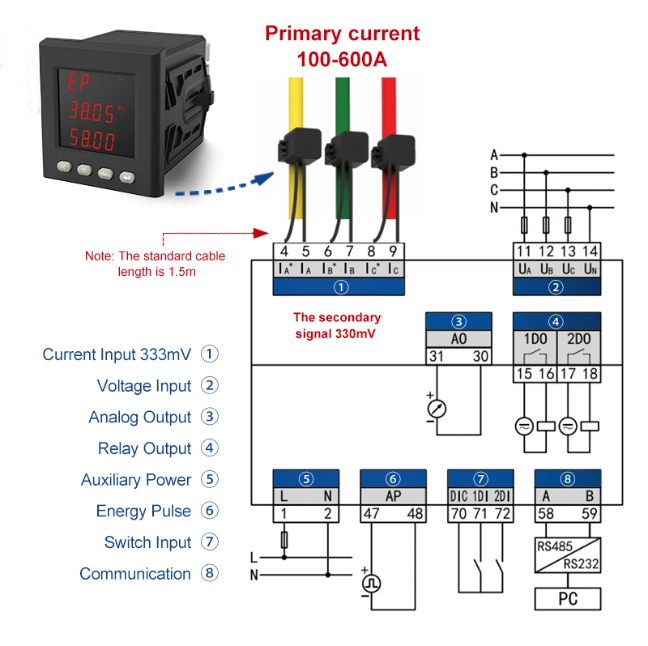

Typical Wiring

Application
